2.
Press the
Press the buttons slowly so that you do not miss the optimum adjustment point.

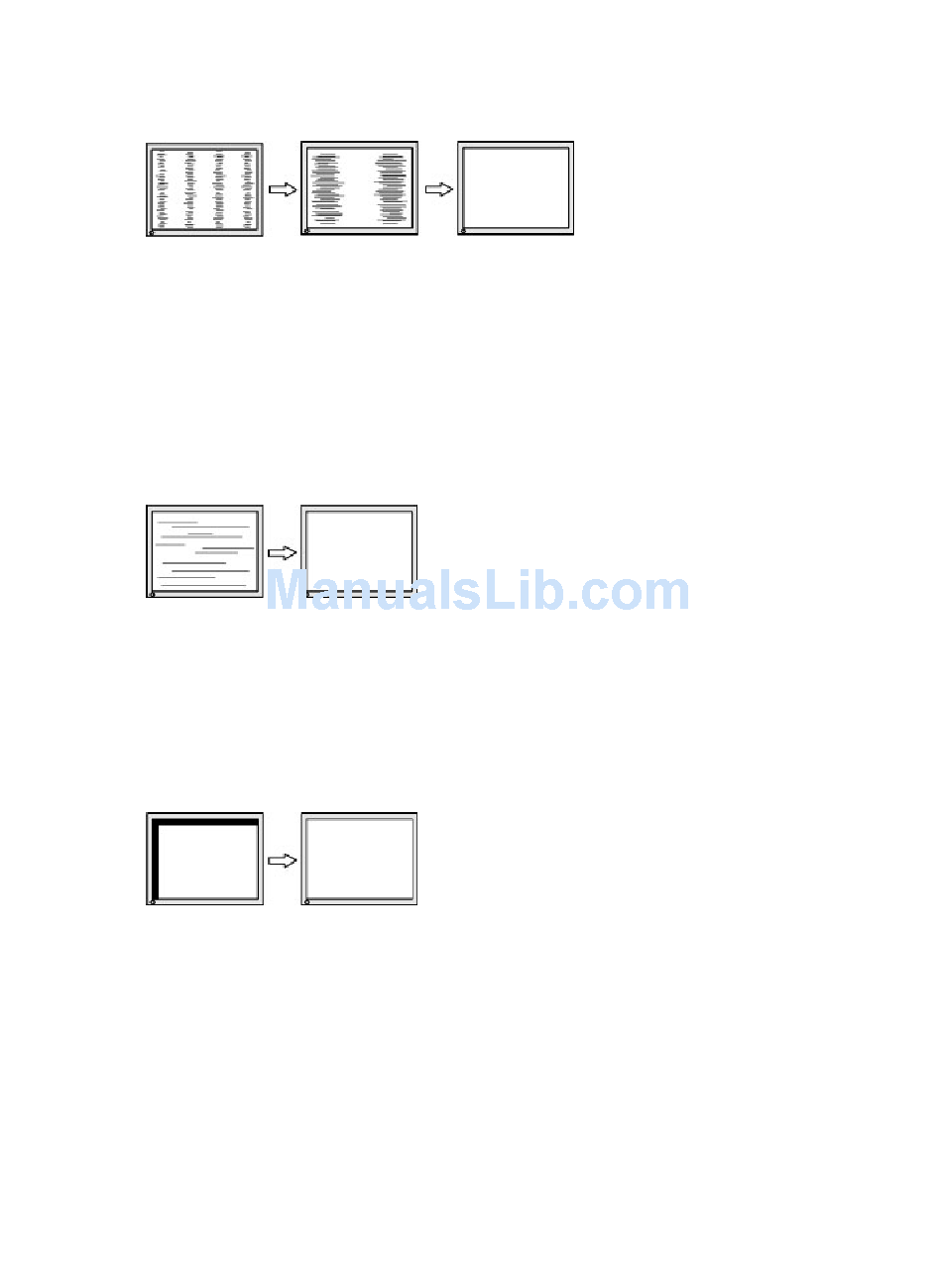

Figure 4-2
3.
After adjusting the Clock, if blurring, flickering, or bars appear on the screen, proceed to adjust
the Clock Phase.
To remove flickering or blurring (Clock Phase):
1.
Press the
Image Control > Clock Phase.
2.
Press the
blurring. Flicking or blurring may not be eliminated depending on your computer or graphics
controller card installed.
Figure 4-3
To correct screen position (Horizontal Position or Vertical Position):
1.
Press the
Image Control > Horizontal Position and/or Vertical Position.
2.
Press the
position of the image in the display area of the monitor. The Horizontal Position shifts the image
left or right; the Vertical Position shifts the image up and down.
Figure 4-4
Using the HP Display Assistant Utility
HP Display Assistant, included on the software and documentation CD, is a software utility that
guides you through the tuning process with easy to understand instructions and background patterns
designed for each monitor control. It provides:
●
Accurate screen calibration through the use of step-by-step instruction Wizards to obtain the
best overall image quality.
●
Software control of the monitor image and color settings to eliminate dependence on the
monitor's front panel buttons and On-Screen Display (OSD) menu.
●
Defined preset display settings for each individual user in a multi-user environment.
22
Chapter 4 Operating the Monitor
+
(Plus) or
–
(Minus) buttons on the monitor's front panel to eliminate vertical bars.
Clock Adjustment
Menu
button on the monitor's front panel to open the OSD Menu, and then select
+
(Plus) or
–
(Minus) buttons on the monitor's front panel to eliminate flickering or
Clock Phase Adjustment
Menu
button on the monitor's front panel to open the OSD Menu, and then select
+
(Plus) or
–
(Minus) buttons on the monitor's front panel to properly adjust the
Horizontal or Vertical Position Adjustment
ENWW
