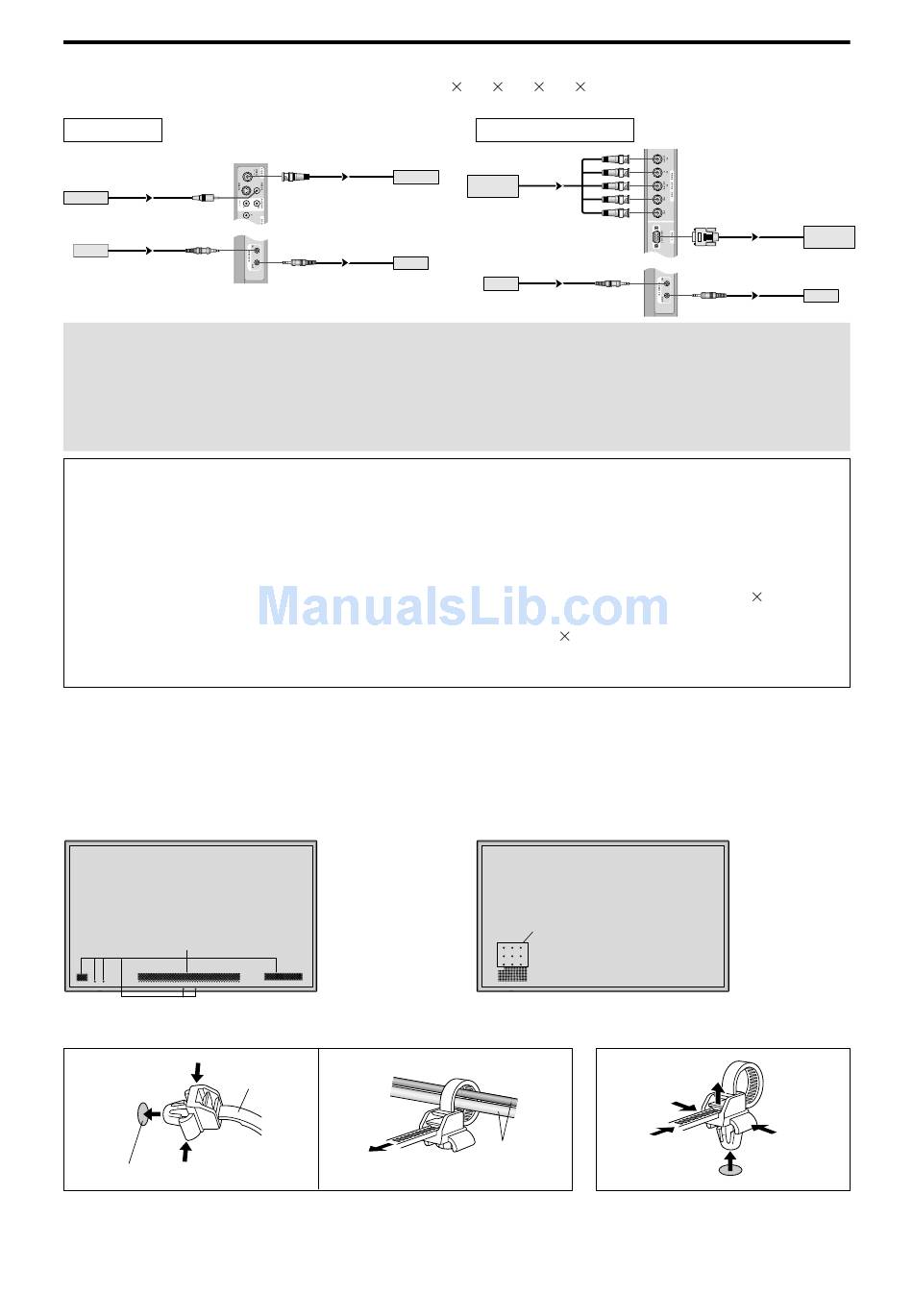

Creating a video wall

With built-in matrix display capability, you can create a (2 2, 3 3, 4 4, 5 5) video wall.
• Connect signal cables and remote cables as shown below.
Video signal
RCA phono plug
IN
VIDEO Signal
IN
Remote
control
Note:
1. The VIDEO1 and RGB1 terminals can be used for either INPUT or OUTPUT.
When LOOP OUT is ON, do not connect an OUTPUT signal from another unit as it may damage the other unit due
to an extraordinary load.
2. LOOP OUT can not be turned ON while signals are input to the RGB1 terminal.
3. LOOP OUT can be turned ON while signals are input to the RGB1 terminal if the POWER is switched ON.
Information
• To loop signals out to another plasma display, set the LOOP OUT to ON.
• To create a video wall, set the VIDEO WALL menu items properly.
• To connect monitors, please use a 1~2m (3.3~6.6 feet) BNC cable (any commercially available cable).
• If the image quality is poor, do not use the monitor's out terminal. Use a distribution amplifier (any commercially
available distribution amplifier) to connect the split signals to the respective monitor INPUT terminals.
• Being used as a video wall function, maximaly 4-screen is rough-standard with lower than 1024 768, 60Hz
signal.
• A distribution amplifier is particularly recommended when creating a 3 3 (or greater) video wall.
• When looping from plasma to plasma, a 1~2m (3.3~6.6 feet) 15 pin male D-Sub - 5BNC conversion cable is
required.

Cable Management

Using the cable clamps provided with the plasma display; Bundle the signal and audio cables at the back of the unit to
connect to the display.
42 inch
Back of the unit
mounting holes
To attach
1.
clamp
mounting hole
BNC connector
OUT
VIDEO Signal
OUT
Remote
control
2.
En-6
RGB/DVD/HD signal
BNC connector
IN
RGB signal/
DVD/HD signal
IN
Remote
control
50/61 inch
Back of the unit
mounting holes
To detach
cables
OUT
RGB signal/
DVD/HD signal
OUT
Remote
control
