Belkin Enhanced Wireless Modem Router User Manual page 77

ManUally ConfIgURIng nETWoRK sETTIngs
sections
table of contents

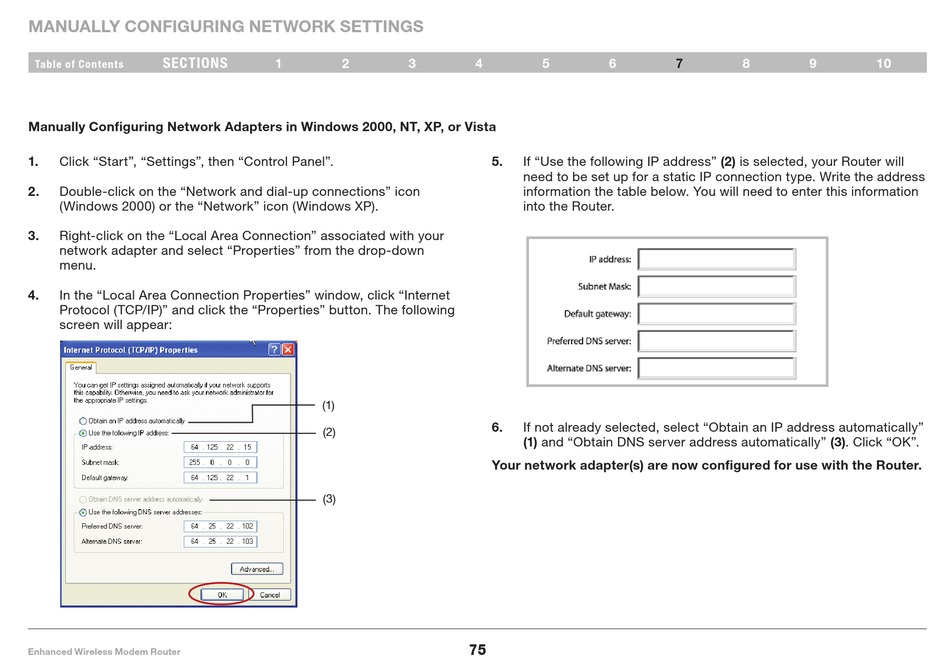

Manually Configuring network adapters in Windows 2000, nT, XP, or Vista
1� Click "Start", "Settings", then "Control Panel"�
2� Double-click on the "Network and dial-up connections" icon
(Windows 2000) or the "Network" icon (Windows XP)�
3� Right-click on the "Local Area Connection" associated with your
network adapter and select "Properties" from the drop-down
menu�
4� In the "Local Area Connection Properties" window, click "Internet
Protocol (TCP/IP)" and click the "Properties" button� The following
screen will appear:
Enhanced Wireless Modem Router
1 2 3
(1)
(2)
(3)
4 5 6
5� If "Use the following IP address" (2) is selected, your Router will
need to be set up for a static IP connection type� Write the address
information the table below� You will need to enter this information
into the Router�
6� If not already selected, select "Obtain an IP address automatically"
(1) and "Obtain DNS server address automatically" (3)� Click "OK"�
your network adapter(s) are now configured for use with the Router�
75
7 8 9 10
