KnoWIng yoUR ModEM RoUTER
sections
table of contents

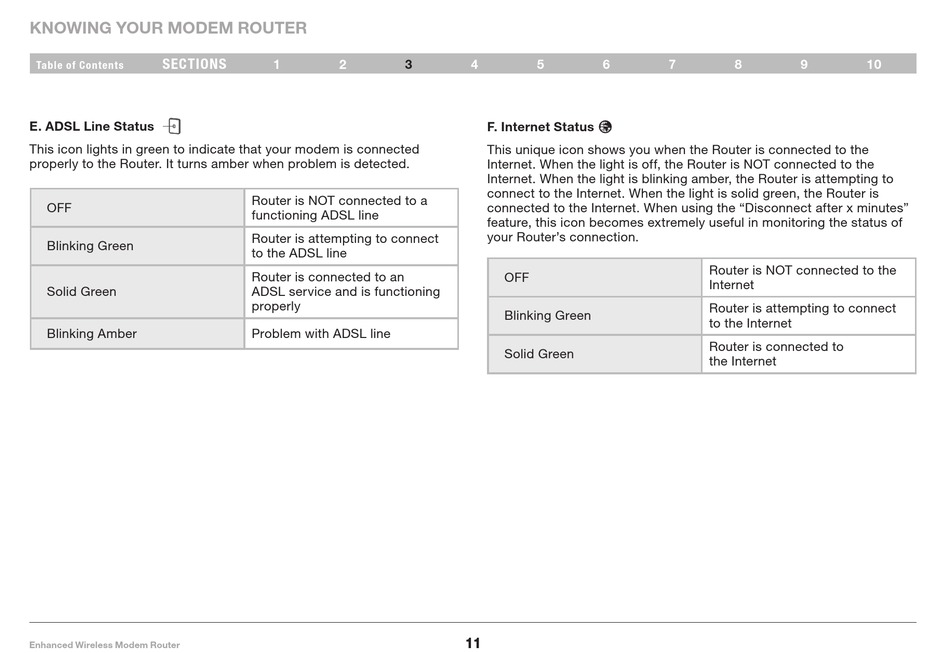

E� adsl line status
This icon lights in green to indicate that your modem is connected
properly to the Router� It turns amber when problem is detected�
OFF
Blinking Green
Solid Green
Blinking Amber

Enhanced Wireless Modem Router

1 2 3
Router is NOT connected to a
functioning ADSL line
Router is attempting to connect
to the ADSL line
Router is connected to an
ADSL service and is functioning
properly
Problem with ADSL line
4 5 6
f� Internet status
This unique icon shows you when the Router is connected to the
Internet� When the light is off, the Router is NOT connected to the
Internet� When the light is blinking amber, the Router is attempting to
connect to the Internet� When the light is solid green, the Router is
connected to the Internet� When using the "Disconnect after x minutes"
feature, this icon becomes extremely useful in monitoring the status of
your Router's connection�
OFF
Blinking Green
Solid Green
11
7 8 9
Router is NOT connected to the
Internet
Router is attempting to connect
to the Internet
Router is connected to
the Internet
