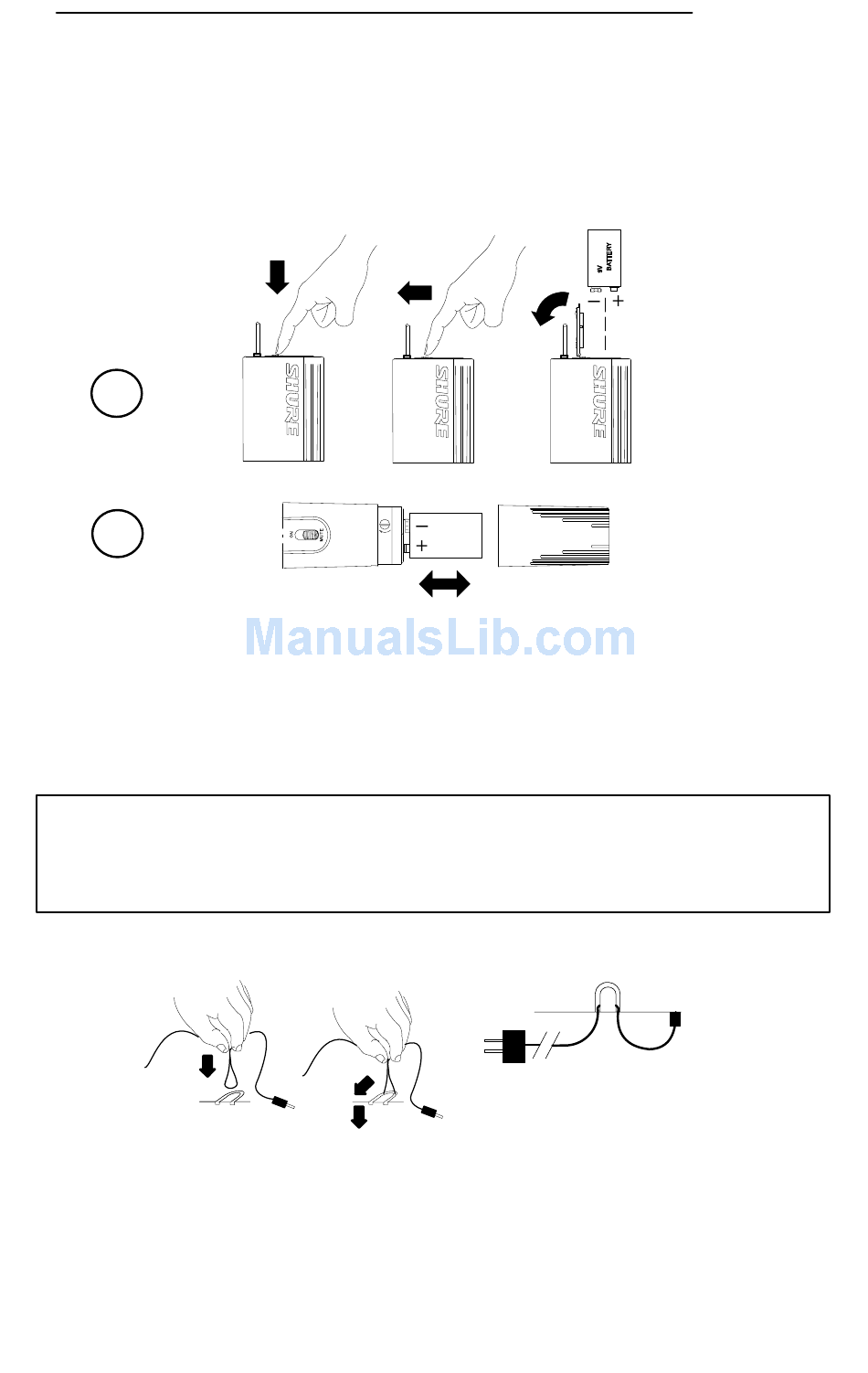

TRANSMITTER BATTERY INSTALLATION

1. Slide the transmitter POWER/OFF switch to the OFF position.
2. Body-Pack: Press down on the OPEN side of the battery compartment cover,
slide it back and flip it open, as shown in Figure 6A.
3. Hand-Held: Unscrew the transmitter battery cover to expose the battery termi-
nals, as shown in Figure 6B.
A
B
4. Insert a fresh 9 V battery into the battery compartment as shown in Figure 6.
5. Replace battery cover.
6. When the transmitter's red LOW BATTERY light glows, you have 1 hour or less
of useful battery life remaining; change the battery at your first opportunity.
IMPORTANT: 9 V Alkaline batteries are recommended. 9 V lithium batteries are op-
tional. Carbon-zinc and zinc-chloride batteries will not provide adequate power and
are not recommended. 8.4 V rechargeable NiCd batteries may be used, but are not
recommended due to minimal lifespan. See Battery Life in Specifications for further
details on battery selection.
INSTALLING AC ADAPTOR CORD INTO POWER CABLE RETAINER
A
1. Refer to Figure 7. Turn the receiver over and locate the power cable retainer. Pinch
the ac adaptor cord approximately 6 inches from the dc plug, forming a small loop (A).
Hold the cord vertical to the retainer and lower the tip of loop into the curved portion
of retainer.
2. Keeping the cord vertical to the receiver, pull the cord under the tab towards front
of the receiver (B), then pull down, locking the cord into the retainer (C).
FIGURE 6
AC POWER ADAPTER AND
POWER CABLE RETAINER
B
FIGURE 7
7
ENGLISH
(BOTTOM VIEW)
C
