OPERATING THE PRESENTER-UHF SYSTEM
1. Refer to Figure 9. Connect the supplied ac power adapter to the DC INPUT con-
nector on the back of the receiver. Insert the adapter's cable into the power cable
retainer. Plug the adapter into a wall socket or other ac power source (use PS20
for 120 Vac, 60 Hz power; use PS20E for 230 Vac, 50 Hz power). The green
POWER light on the receiver will glow.
2. Connect the receiver's XLR AUDIO OUT connector to the mixer input using an XLR
to XLR audio cable. If no XLR cable is available, a
be substituted, but this connection will not be balanced. Set the receiver's MIC/LINE
SWITCH to match the sound system's input.
3. Press the WL93, WL184 or WL185 lavalier microphone into the mounting clip and
attach it to your garment. Do not cover the microphone with your clothing, and
keep it approximately 8 to12 inches below your chin. See Figure 9.
4. Slide the recessed transmitter POWER/OFF switch to the POWER position. The
transmitter's green POWER ON light and the receiver's yellow DIVERSITY A/B
lights will glow.
5. Slide the transmitter's MUTE/ON switch to the ON position.
6. Speak in your normal conversational voice. Proper operation is indicated by:
Steady glow of the receiver's yellow DIVERSITY A/B lights.
Flickering of the receiver's AUDIO PEAK light when you speak in a loud voice.
NOTE: If the receiver's red AUDIO PEAK light does not flicker occasionally or
is constantly on, the transmitter gain may need to be adjusted. Refer to the Trans-
mitter Audio Gain Adjustment section. If the system is still not operating properly,
consult the Troubleshooting table.
7. When the presentation is over, turn off the sound system and slide the recessed
transmitter POWER/OFF switch to the OFF position to conserve battery power.
UT1
WL93
shown
SHURE
UT4
FRONT

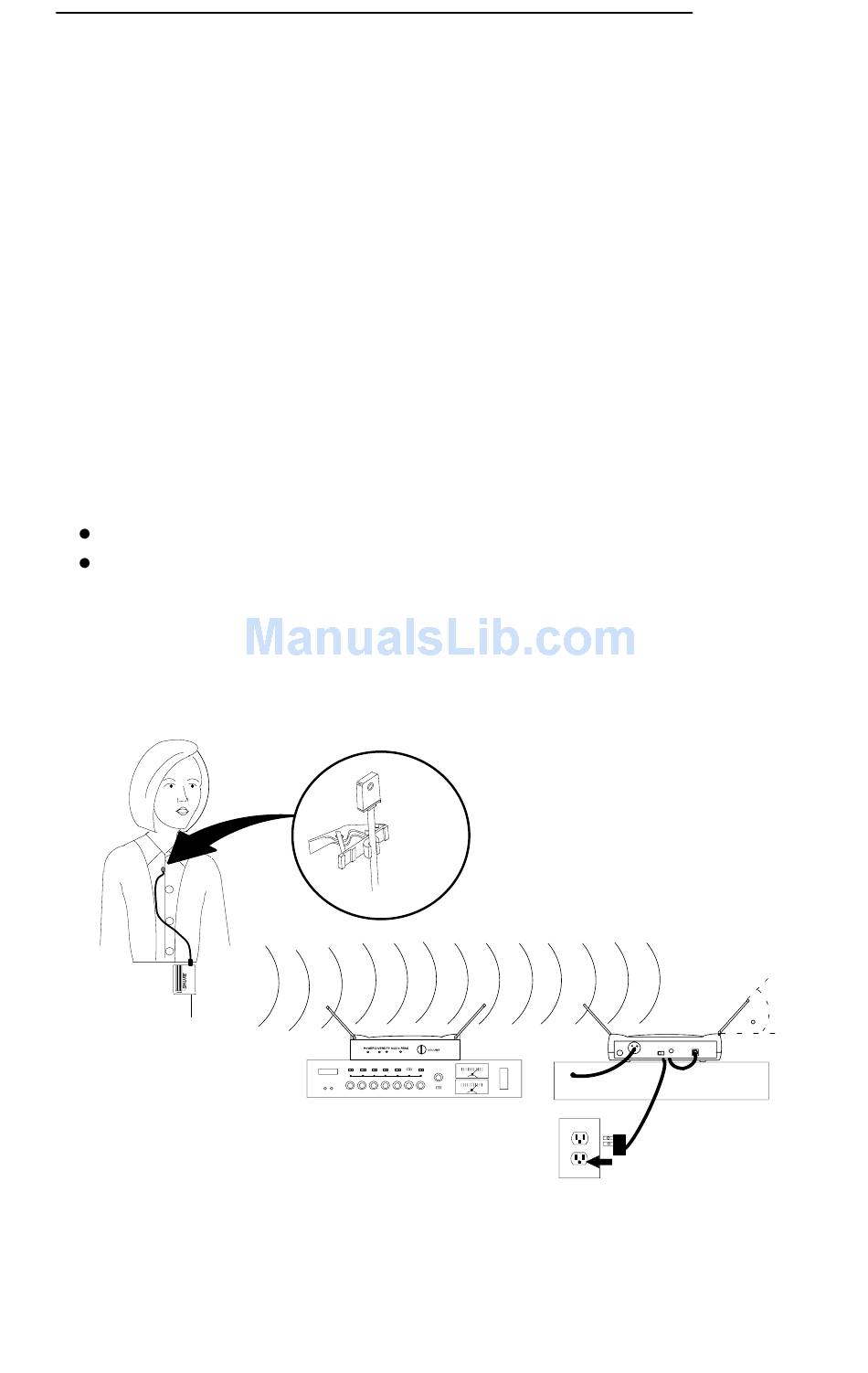

FIGURE 9
