OPERATING THE GUITARIST-UHF SYSTEM
1. Refer to Figure 11. Connect the supplied ac power adapter to the DC INPUT con-
nector in back of the receiver. Insert the adapter's cable into the power cable retain-
er. Plug the adapter into a wall socket or other ac power source (use PS20 for 120
Vac, 60 Hz power; use PS20E for 230 Vac, 50 Hz power). The green POWER light
on the receiver will glow.
2. Connect the receiver's
plifier input, using a standard guitar cable.
3. Connect your guitar or bass to the transmitter input jack with a WA302 Instrument
Adaptor. NOTE: The Guitarist-UHF system may also be used with woodwind and
brass instruments with use of an optional WM98 miniature instrument microphone
and a horn mount. See Optional Accessories for additional information.
4. Adjust the volume control on your guitar to desired level. To match wireless output
to that of a wired system, see Receiver Volume Adjustment for the Guitarist.
5. Slide the transmitter's POWER/OFF switch to the POWER position. The transmitter's
POWER ON light and the receiver's DIVERSITY A/B lights will glow.
6. Slide the transmitter MUTE/ON switch to the ON position.
7. Play your guitar or bass. Normal operation is indicated by:
Steady glow of receiver's yellow DIVERSITY A/B lights.
Flickering of the receiver's AUDIO PEAK light when loud sounds are transmitted.
NOTE: If the red AUDIO PEAK light does not flicker occasionally or is on constantly,
the transmitter may need to be adjusted. Refer to the Transmitter Audio Gain Adjust-
ment section. If the system is still not operating properly, consult the Troubleshooting
table.
8. When the performance is over, turn off the amplifier and slide the recessed trans-
mitter POWER/OFF switch to the OFF position to conserve battery power.
UT1
Ì Ì Ì Ì Ì Ì Ì Ì Ì
Ì Ì Ì Ì Ì Ì Ì Ì Ì
Ì Ì Ì Ì Ì Ì Ì Ì Ì
1
/ " PHONE JACK AUDIO OUTPUT connector to the am-
4
SHURE
UT4
FRONT

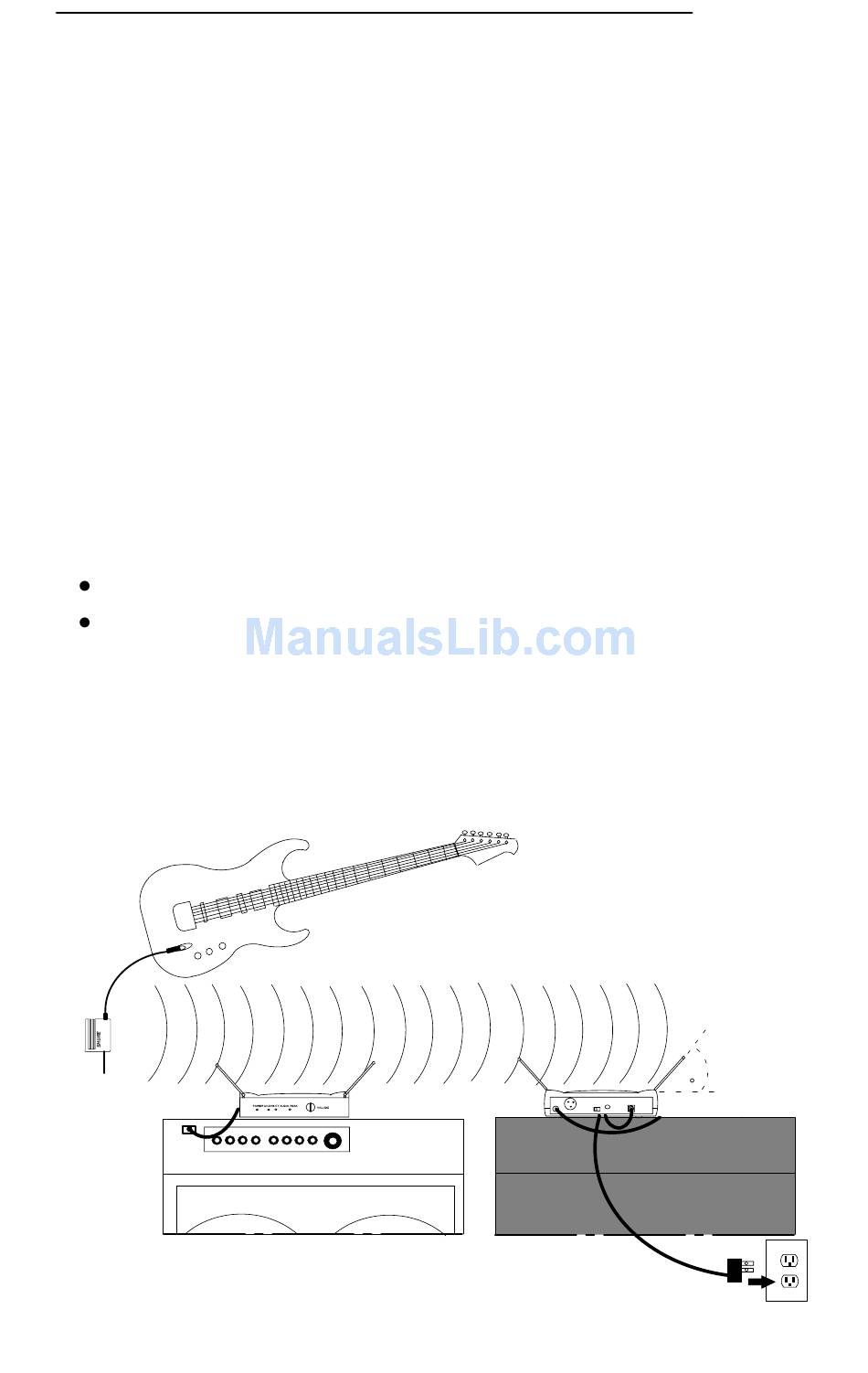

FIGURE 11
