Hasselblad HC 4.5/300 Specification Sheet

HASSELBLAD

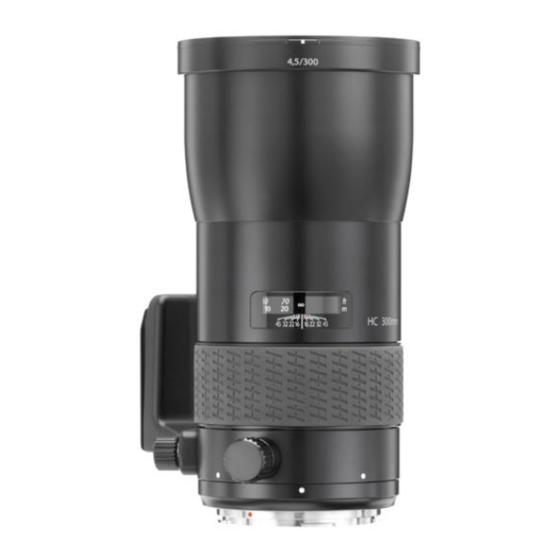

HC 4.5/300

GENERAL LENS DATA:

Focal length
Aperture range
Angle of view diag/hor/vert
Length/diameter
w. tripod mount
Weight
Filter diameter

CLOSE FOCUS RANGE DATA:

Minimum distance object to film
Maximum image scale
Corresponding area of coverage
Corresponding exposure reduction
COMPATIBILITY
When the HC300 is used together with the H1,7X converter, the autofocus
function of the camera is disabled.

LENS DESIGN

9 elements in 7 groups

FOCUS TYPE

Internal focusing

ENTRANCE PUPIL POSITION

13 mm in front of the film plane
(at infinite focus setting)
The entrance pupil position is the correct
position of the axis of rotation when making
a panorama image by combining individual
images of a scene.
MTF
Modulation Transfer as a func-
tion of image height at infinite
focus setting.
Sagittal slit orientation drawn
with continuous line and tan-
gential with dashed. White
light. Spatial frequencies 10,
20 and 40 lp/mm
292.0 mm
4.5 - 45
13°/11°/8°
198 mm/100 mm
198 mm/139 mm
2120 g
95 mm
2.45 m
1:7.5
41 x 31 cm
0 f-stop
LENSES
1/2
www.hasselblad.com
