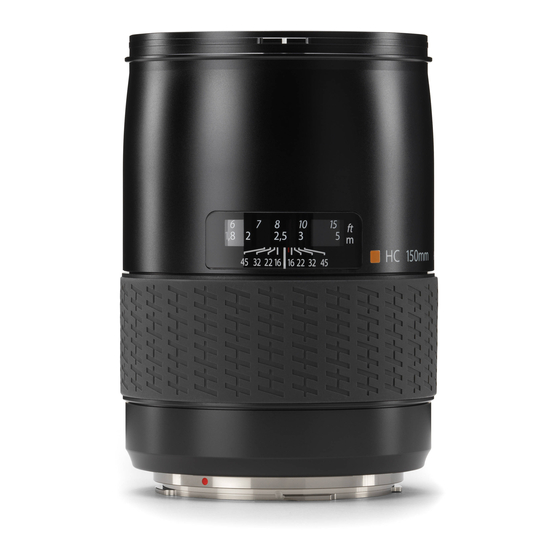

Hasselblad HC 3.2/150N Specification Sheet

HASSELBLAD
HC 3.2/150
N

GENERAL LENS DAtA:

Focal length
Aperture range
Angle of view diag/hor/vert
Length/diameter
Weight
Filter diameter

CLoSE FoCuS RANGE DAtA:

Minimum distance object to film
Maximum image scale
Corresponding area of coverage
Corresponding exposure reduction

LENS DESIGN

9 elements in 8 groups

FoCuS tYPE

Internal focusing

ENtRANCE PuPIL PoSItIoN

68 mm in front of the film plane
(at infinite focus setting)
the entrance pupil position is the correct posi-
tion of the axis of rotation when making a pano-
rama image by combining individual images of
a scene.
MtF
Modulation transfer as a func-
tion of image height at infinite
focus setting.
Sagittal slit orientation drawn
with continuous line and tan-
gential with dashed. White
light. Spatial frequencies 10,
20 and 40 lp/mm
150.2 mm
3.2 - 45
26°/21°/16°
124 mm/86 mm
970 g
77 mm
1.30 m
1:6.8
38 x 28 cm
0 f-stop
f/3.2
100
80
60
40
20
0
0 10 20 30
Image height (mm)
LENSES
f/8
100
80
60
40
20
0
0 10 20 30
Image height (mm)
www.hasselblad.com
1/2
