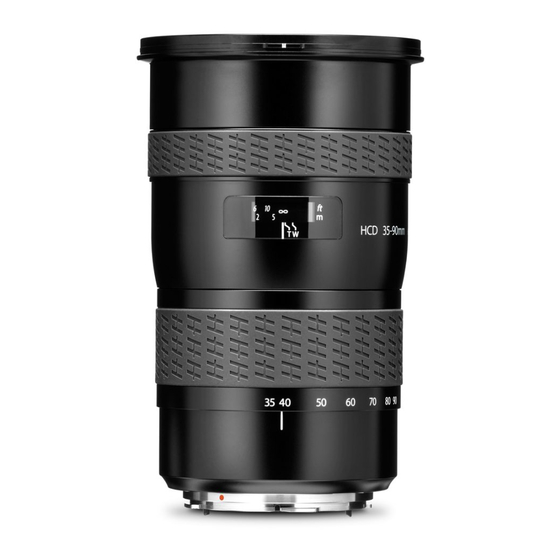

HCD 4,0-5,6/35- 90 Aspherical
General lens data:
Focal length
Aperture range
Angle of view diag/hor/vert
Length/diameter
Weight
Filter diameter
Close focus range data:
Minimum distance object to image plane
Maximum image scale
Corresponding area of coverage
Corresponding exposure reduction
Compatibility
The HCD 4,0-5,6/35-90 mm lens is not compatible with the converter H1.7x
and the HTS 1.5 Tilt/Shift adapter.
Lens Design
13 elements in 11 groups
1 Aspherical surface
Focus Type
Internal focusing
Entrance Pupil Position
35 mm setting:
187 mm
50 mm setting:
178 mm
90 mm setting:
193 mm
In front of the image plane
(at infinite focus setting)
The entrance pupil position
is the correct position of the
axis of rotation when making a
panorama image by combining
individual images of a scene.
36,3 (87) mm
4,0 (5,6) - 32
83°/70°/55° (39°/31°/24°)
167 mm/102,5 mm
1410 g
95 mm
0.65 m
1:13 (1:5,4)
64 x 48 (26 x 20) cm
0 f-stop
35 mm
50 mm
90 mm
LENSES
www.hasselblad.com
Advertisement
Related Manuals for Hasselblad 6 / 35-90 Aspherical
Summary of Contents for Hasselblad 6 / 35-90 Aspherical
- Page 1 36,3 (87) mm 4,0 (5,6) - 32 83°/70°/55° (39°/31°/24°) 167 mm/102,5 mm 1410 g 95 mm 0.65 m 1:13 (1:5,4) 64 x 48 (26 x 20) cm 0 f-stop 35 mm 50 mm 90 mm LENSES www.hasselblad.com...
- Page 2 White light. Spatial frequencies 10, 20 and 40 lp/mm 35 mm 50 mm 90 mm Image height (mm) f/4.5 Image height (mm) f/5.6 Image height (mm) LENSES Image height (mm) Image height (mm) Image height (mm) www.hasselblad.com...
- Page 3 Relative Illumination Infinity setting 35 mm Image height (mm) Distortion Infinity setting 35 mm Image height (mm) 50 mm f/4.5 Image height (mm) 50 mm Image height (mm) LENSES 90 mm f/5.6 Image height (mm) 90 mm Image height (mm) www.hasselblad.com...
