Tripp Lite SUPDMB6KHW Specifications

Detachable PDU option for compatible
SmartOnline UPS Systems
MODEL NUMBER: SUPDMB6KHW
Description

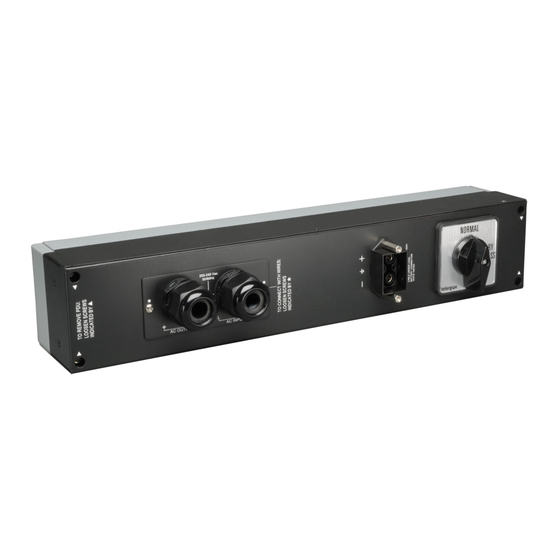

The SUPDMB6KHW UPS backplate with manual transfer switch serves as a replacement for the original
backplate provided with SU6000RT4UHVHW and SU6000RT4UTFHW configurations. Can also be used to
convert any high voltage UPS configuration using the SU6000RT4UHVPM power module to support
hardwire input and output. Manual bypass feature ensures maximum availability of connected equipment
while UPS maintenance occurs. Can accept input voltages of 200-240 VAC. Hardwire input and output.
Features

Specifications

OVERVIEW
Model Type
OUTPUT
Frequency compatibility
Output nominal voltage
Outlet quantity / type
INPUT
PDU Modules
50 / 60 Hz
200, 208, 220, 230, 240 VAC
Hardwire
1 / 2
Highlights
Detachable PDU backplate
with manual bypass switch serves
as a replacement PDU for
configured SU6000RT4UHVHW and
SU6000RT4UTFHW UPS systems
Can also be used to convert
any high voltage
UPS configuration using the
SU6000RT4UHVPM power module
to include hardwire output
Hardwire input and output supported
Attaches via unit-specific back panel
electrical and bolt-on connections
Manual bypass feature ensures
maximum equipment availability
System Requirements
Requires SU6000RT4UHVPM UPS
power module in any 200-240V AC
configuration
Package Includes
SUPDMB6KHW detachable PDU
