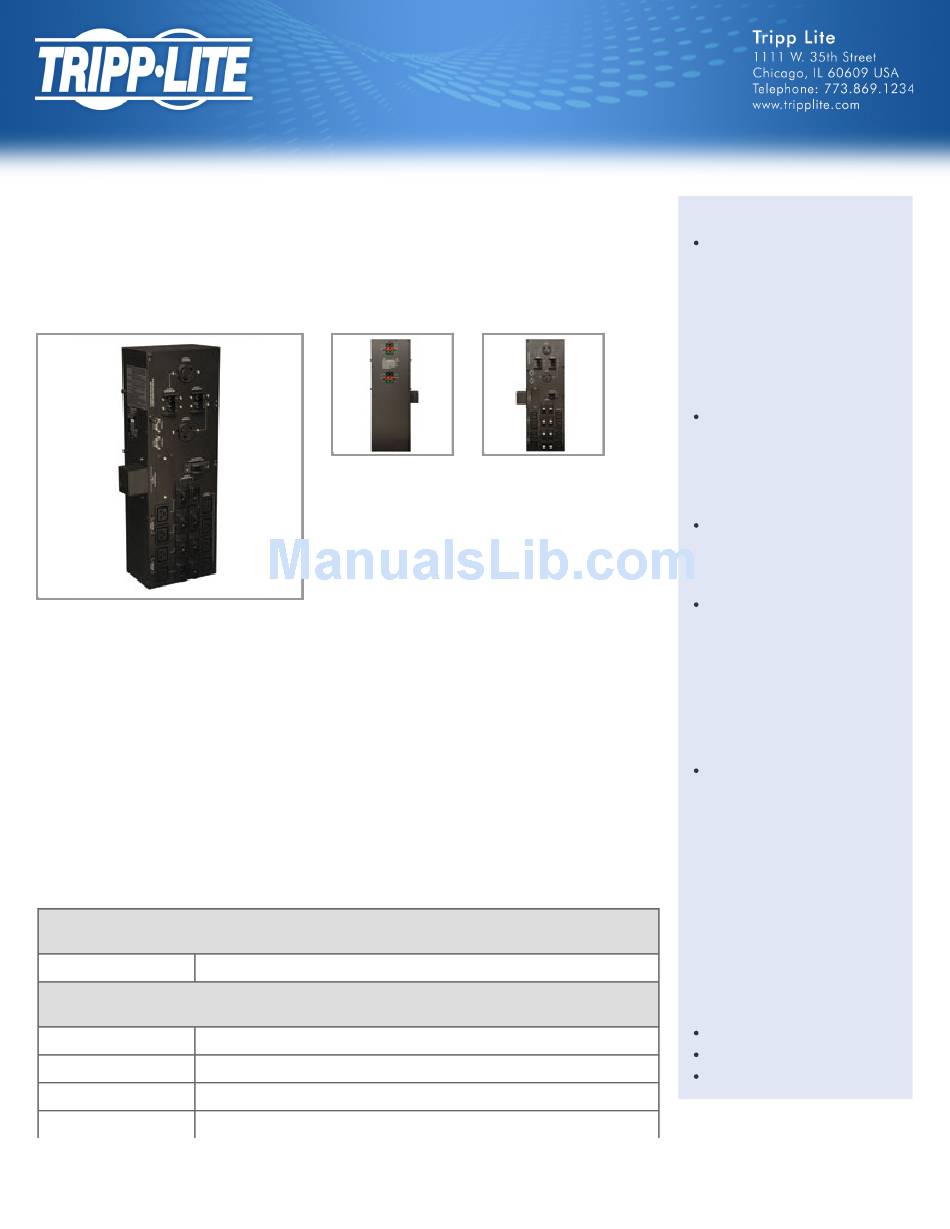

Tripp Lite SUPDMB20K Brochure & Specs

Detachable redundant PDU option for compatible
SmartOnline UPS Systems - Hardwired input
/ L6-30R and C19 output connections

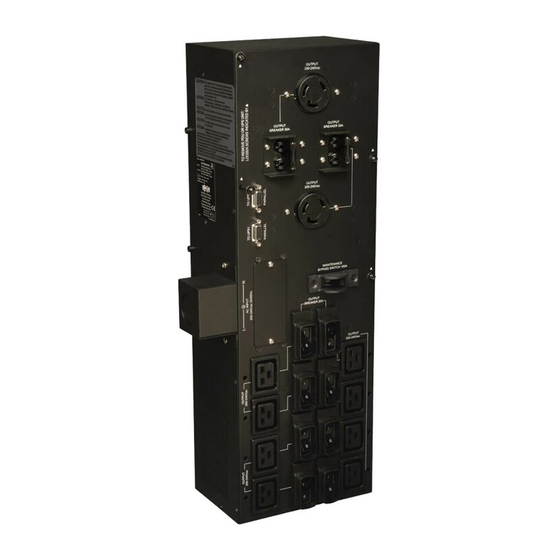

MODEL NUMBER: SUPDMB20K
Description
SUPDMB20K combines the output of two compatible SU8000RT3UPM or SU10000RT3UPM UPS power
modules for fault-tolerant N+1 or increased capacity configurations. Manual bypass feature enables
hot-swappable replacement of both power modules with no disruption in power to connected equipment.
(IMPORTANT > compatible only with SU8000RT3UPM and SU10000RT3UPM power modules built after 6/2010
with built-in USB and PARALLEL back panel data connections).
Features

Specifications

OVERVIEW
Model Type PDU Modules; Outlet Kits
OUTPUT
Frequency compatibility 50 / 60 Hz
Output nominal voltage 200-240VAC
Overload protection 2 double pole 30A breakers, 8 double pole 20A breakers
Outlet quantity / type 2 L6-30R, 8 C19
1 / 2
Highlights
Converts compatible
SmartOnline 8 and
10kVA high-voltage UPS
configurations for N+1
redundancy or increased
capacity when used along with a
2nd compatible UPS power
module
Manual bypass feature enables
hot-swappable replacement of
both power modules while
connected equipment runs
uninterrupted
Hardwired input / L6-30R and
C19 output connections
Applications
Ideal for use as a replacement
redundant bypass PDU or means
of enabling N+1 or increased
capacity for configurations
involving two compatible UPS
power modules
System Requirements
For use only with configurations
involving two compatible
SU8000RT3UPM or
SU10000RT3UPM power
modules (requires two of the
same model power module built
after 6/2010 originally shipping
with built-in USB and PARALLEL
back panel data connections)
Package Includes
SUPDMB20K parallel PDU
Parallel cable
Owner's Manual
