Model #: SUPDM56HW

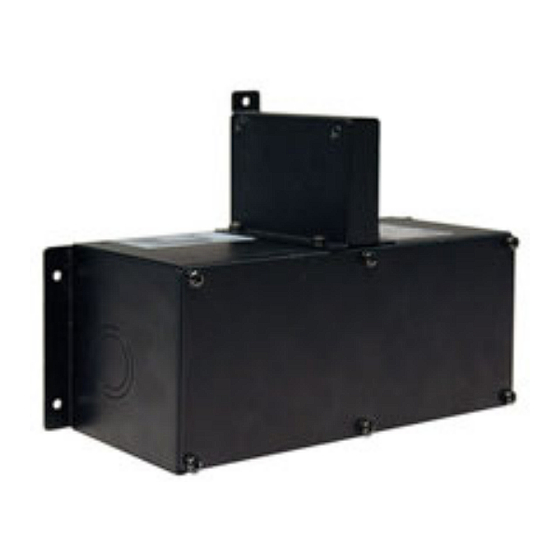

SUPDM56HW - UPS Accessory - Hardwire PDU Module
Description
The SUPDM56HW hardwire input/output PDU module converts compatible SmartOnline Hot-Swappable Modular UPS Systems (models
SU5000RT4U and SU6000RT4U) to a totally hardwired solution. Easy quick-connect terminal block allows installation of hardwire distribution
module in minutes. Can accept input voltages of 120/208 or 120/240 VAC split-phase power. Detachable hardwire module allows for effortless UPS
maintenance without the need to power down connected loads and re-wire input/output connections.
Applications
Use with Tripp Lite SU5000RT4U and SU6000RT4U UPS systems in 120, 208/240V applications where hardwire input/output connections
are required
System Requirements
Use with SU5000RT4U and SU6000RT4U split-phase SmartOnline Hot-Swappable Modular UPS Systems
Package Includes
SUPDM56HW hardwire PDU
Mounting Hardware
Owner's Manual
Specifications
OVERVIEW
Model Type
OUTPUT
Frequency compatibility
Output nominal voltage
Outlet quantity / type
INPUT
Input connection type
Highlights
PDU Modules
50 / 60 Hz
120/208, 120/240
Split-phase hardwire (4-wire)
Split-phase hardwire (4-wire)
Converts compatible SmartOnline Hot-Swappable Modular UPS systems to
hardwire input and output
For use with input voltages of 120/208 or 120/240 VAC split-phase power
Convenient quick-disconnect terminal block allows installation in minutes
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail:
saleshelp@tripplite.com
