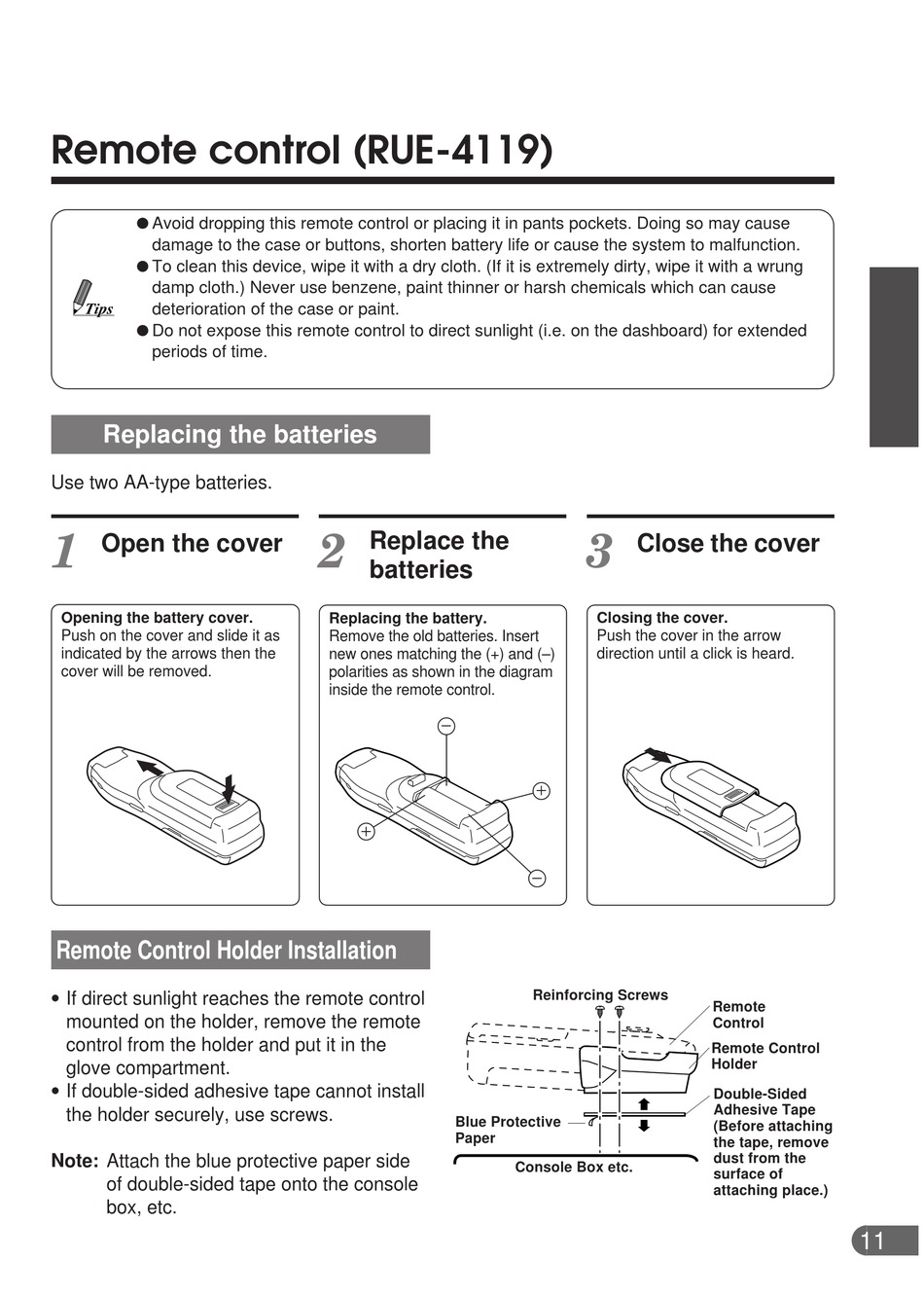

Replacing The Batteries; Remote Control Holder Installation - Alpine NVE-851A Owner's Manual

Remote control (RUE-4119)
a Avoid dropping this remote control or placing it in pants pockets. Doing so may cause
damage to the case or buttons, shorten battery life or cause the system to malfunction.
a To clean this device, wipe it with a dry cloth. (If it is extremely dirty, wipe it with a wrung
damp cloth.) Never use benzene, paint thinner or harsh chemicals which can cause
deterioration of the case or paint.
Tips
a Do not expose this remote control to direct sunlight (i.e. on the dashboard) for extended
periods of time.

Replacing the batteries

Use two AA-type batteries.
1
Open the cover
Opening the battery cover.
Push on the cover and slide it as
indicated by the arrows then the
cover will be removed.

Remote Control Holder Installation

If direct sunlight reaches the remote control
mounted on the holder, remove the remote
control from the holder and put it in the
glove compartment.
If double-sided adhesive tape cannot install
the holder securely, use screws.
Note: Attach the blue protective paper side
of double-sided tape onto the console
box, etc.
Replace the
2
batteries
Replacing the battery.
Remove the old batteries. Insert
new ones matching the (+) and (–)
polarities as shown in the diagram
inside the remote control.
Blue Protective
Paper
3
Close the cover
Closing the cover.
Push the cover in the arrow
direction until a click is heard.
Reinforcing Screws
Console Box etc.
Remote
Control
Remote Control
Holder
Double-Sided
Adhesive Tape
(Before attaching
the tape, remove
dust from the
surface of
attaching place.)
11
