Coleman 9392-542 Instructions

When You Are Ready To Set Up Your
Shelter
–Select a level area clear of rocks,
branches and other hard or sharp objects.
–Do not assemble your shelter under trees.
–For easier set up, two or more people
are recommended.
Eave Hub (6)
Part No. 9392-3021
Overhead Poles (6)
Part No. 9392-3141
1
Pole & Hub Assembly
–Begin with the Center Hub and Cupola Top Poles.
–Insert the clip end into the center hub and
connect one pole at a time to the hub. (illus. 1)
2 –Assemble shock-corded Eave and Overhead poles.
–Connect the Overhead poles to the
bottom opening of the Cupola Top Poles. (illus. 2)
–Attach Eave Hubs to Overhead Poles. (illus. 2)
–Connect the Eave Poles to Eave Hub. This will
make a six sided hexagon shape. (illus. 2)
–Insert one end of the Leg Pole into bottom of the
3
Eave Hub. Do not fully assemble the Leg Pole.
Leave the lower section laying on the ground.
(illus. 3).
–Repeat for remaining Leg Poles.
–Assemble the shock-corded Ground Poles.
4
–Working under the partially assembled frame,
insert one end into the 3 sided Ground Pole Hub.
The center opening should be pointing up. (illus. 3)
–Insert the other end into a second Ground Pole
Hub. Continue by adding another Ground Pole to
the open side of the Ground Pole Hub until you
can close the loop, forming a hexagon shape.
(illus. 3)
14'x12' GARDEN GAZEBO
Instructions apply to Part Number 9392-542
Center Hub(1)
Part No.
9392-2351
Eave Poles (6)
Part No. 9392-3111
Ground Poles (Green) (6)
Part No. 9392-3101
Leg Poles (6)
Part No. 9392-3151
Leg Pole
Ground Pole Hub

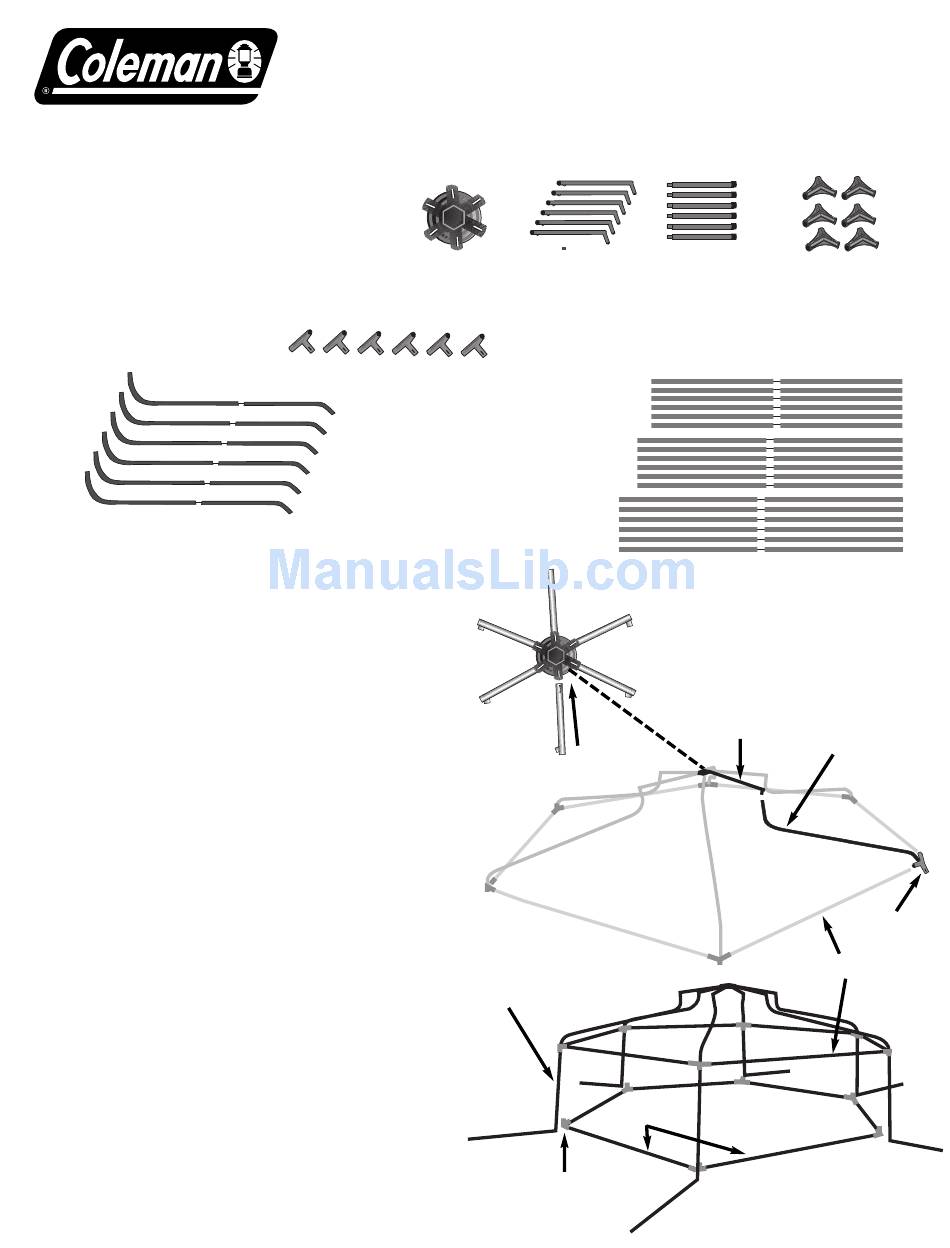

ASSEMBLY PARTS
Cupola Top Cupola Eave
Pole (6)
Pole (6)
Part No.
Part No.
9392-3131 9392-3121
Illus. 1
Cupola Top Poles
inserted into Center Hub
Illus. 2
Cupola and Eave
assembly
Ground Pole
Ground Pole
Hub (6)
Part No.
9392-3011
Overhead
Cupola
Pole
Top Pole
Eave Hub
Eave Pole
Illus. 3
Ground poles assembled
under partially assembled
frame structure.
