Coleman 9391-122 Instructions

When You Are Ready To Set
Up Your Shelter
–Select a level area clear of
rocks, branches and other hard or
sharp objects.
–Do not set up your shelter under
trees.
–For easier set up, two or more
people are recommended.
1

Peak Pole Assembly

–Assemble and connect one
Peak Pole (lighter colored) at a
time to the hub pole. (illus. 1, 2)
Frame and Leg
2
Pole Assembly
–Only the bottom 2
sections of the Leg Pole
should be assembled (illus. 3),
allowing for easier set up low to
the ground.
–Assemble the Ridge Poles (4)
–Insert the end with the spring clip
into one of the Upright Leg hub
ports until it clicks into position.
(illus. 4).
–Repeat for all Ridge poles (illus. 3)
–Attach Peak Poles by inserting the
end with the spring clip into the
center slot of the Upright Leg hub
ports until it clicks into position.
(illus. 5, 6)
–Repeat for each of the 3 remaining
poles. (illus. 5, 6)
12'x12' Shade House
Instructions apply to Part Number 9391-122

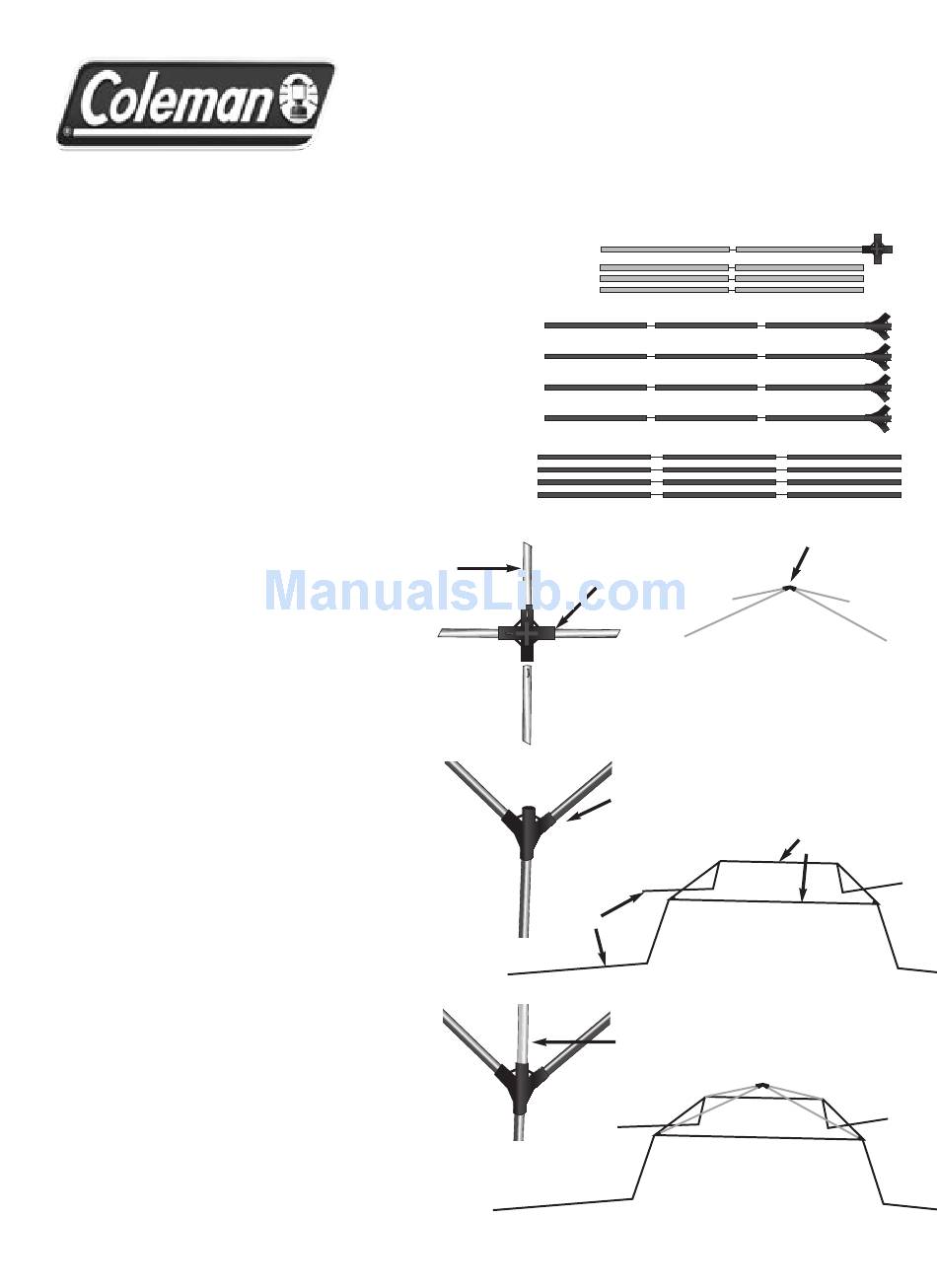

POLE ASSEMBLY PARTS

Hub Part No. 9191-126
Peak Pole Part No. 9191-125
Upright Leg Pole
Part No. 9191-123
Ridge Pole
Part No. 9191-124
Pole
Hub
Illus. 1
Peak Poles
inserted
into hub
Illus. 4
Ridge Poles inserted
into hub of Upright Leg
Leg
Pole
Ridge Poles inserted into
hub of Upright Leg. Upright
Leg not fully assembled.
Illus. 5
Peak Pole inserted into center
of hub of Upright Leg
Illus. 6
Peak Poles and Ridge
Poles assembled into
Upright Leg hub.
Hub
Illus. 2
Peak Poles
inserted
into hub
Ridge Pole
Illus. 3
