Coleman Insta-Clip 9392-142 Installation Instructions

®
When You Are Ready To Assemble
Your Shelter
–Select a level campsite clear of rocks,
branches and other hard or sharp objects.
–Do not assemble your shelter under trees.
–For easier setup, two or more people are
recommended.
–Place fabric in center of selected location
and assemble poles above fabric.
1

Assemble Frame

–You will need to assemble and connect
one pole at a time to the hub.
–Do not completely assemble poles.
a) Beginning at spring-clip end of pole,
assemble all but the last shock-corded
section. The pole and one section
should curve downward (Illus. 2).
b) Insert the spring-clip end into one of
the hub ports until it clicks into
position (Illus. 1, 2).
c) Repeat for each of the five remaining
poles (Illus. 2).

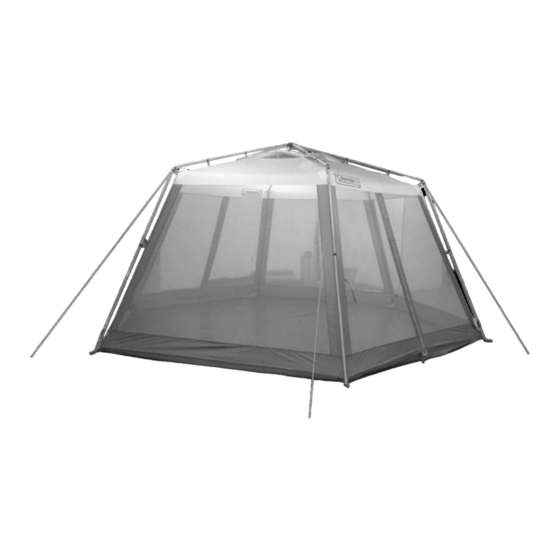

14'x12' Insta-Clip
Instructions apply to Part Number 9392-142
TM
Screen House

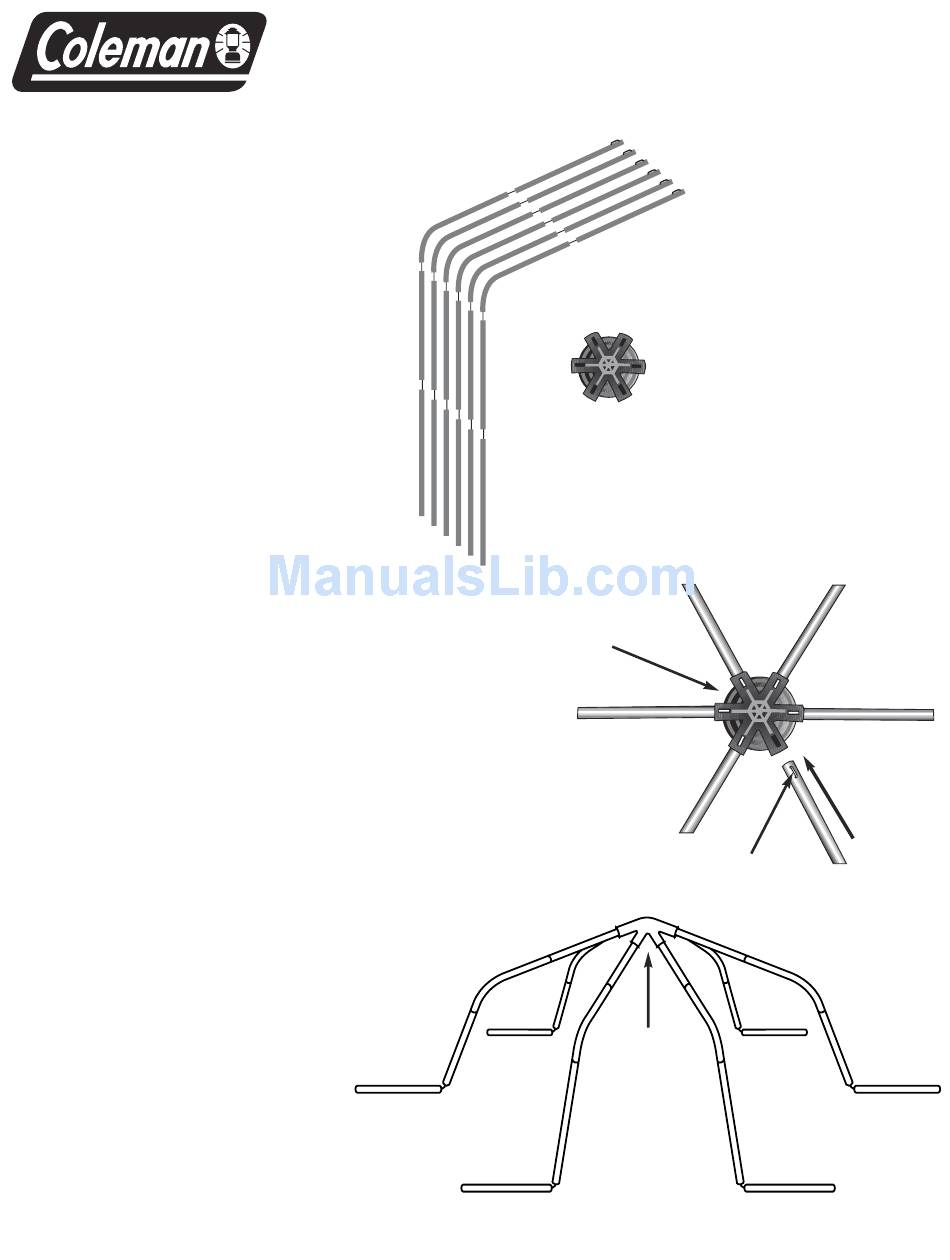

POLE ASSEMBLY PARTS

Poles Part No. 9392-224
Hub Part No. 9392-223
Hub
Illustration 1
Poles inserted
into hub
Spring Clip
Hub
Illustration 2
Partially assembled
frame locked into hub
