Before you begin

Read all instructions before set up.
Select a level site clear of rocks, branches, and other hard or sharp
objects, to install your tent.
WARNING: Keep clear of overhead power lines.
Do not set up your tent under trees because of potential lightning
strikes or falling tree limbs in inclement weather.
Secure with
all stakes and guylines provided to prevent property
damage or personal injury.
For best results in windy conditions, position narrow end of tent into the wind.
Enlist the help of at least one other person to assist you when it is time
to assemble the tent.

Pole Descriptions

Description Qty.
Main Poles, long, black
2
Rainfly Pole, black
w/metal tips
2
Vertical Door Pole, black,
short w/plastic tips
1
Door Pole, black,
long w/plastic tips
1
Self-Rolling Window Spring Descriptions
Color Code Description
Qty.
Green
1
Orange
1
CAUTION: "Springs" may have sharp edges. Handle with care to avoid
injury. Keep out of reach of children.

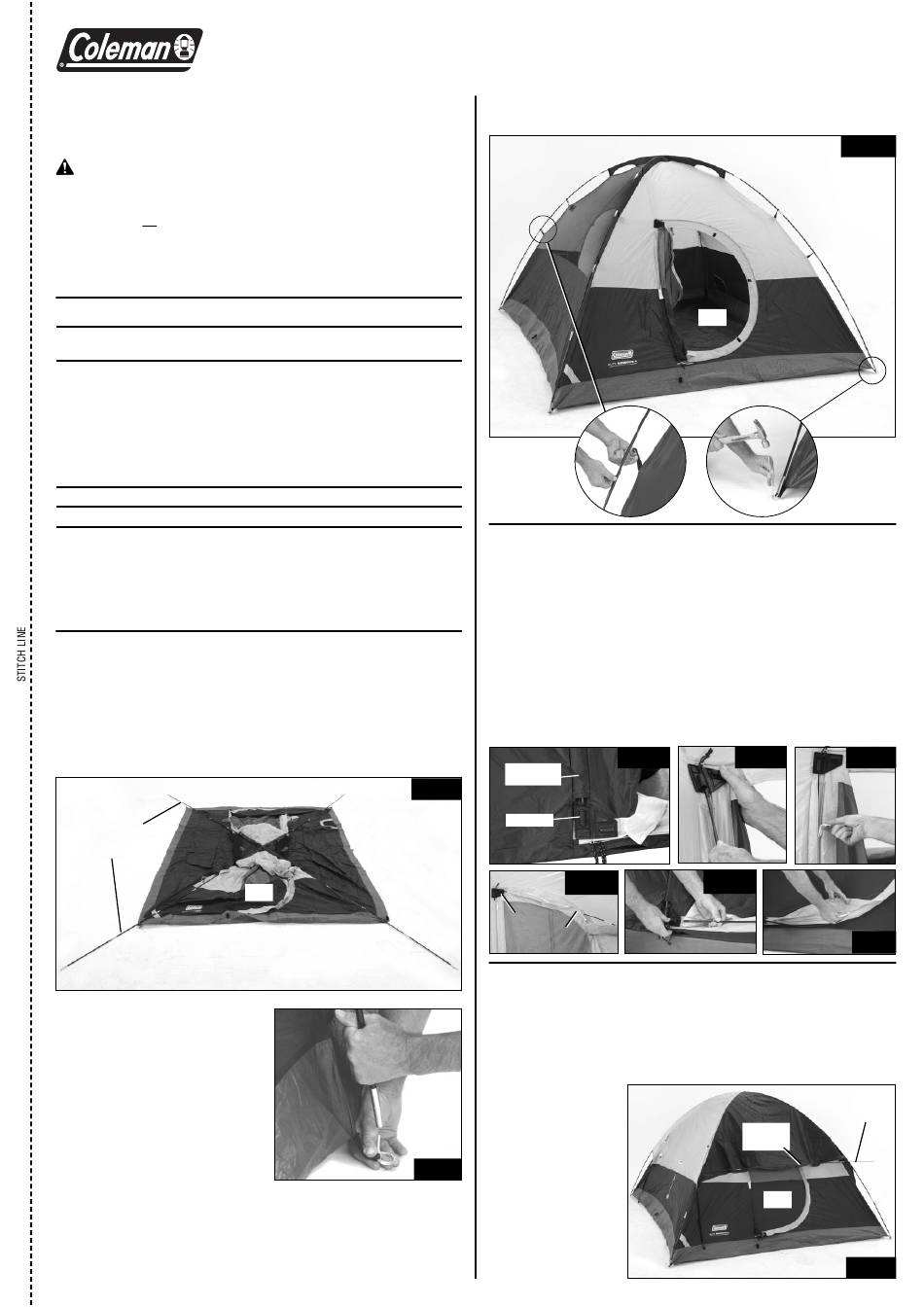

To Set Up Tent

1. Unfold tent and spread out on a clean, level surface with the door
facing the desired direction. (Fig. 1)
2. Assemble two main tent poles by interlocking the longer, black shock-
corded, poles.
3. Insert both, long, black poles through sleeves in top of tent as shown.
(Fig. 1)
Long, Black,
Shock-corded
Main Poles
4. Insert one end of each black pole
into pins in front corners of tent.
(Fig. 2)
5. Go to opposite end of each pole and gradually apply pressure to the
pole forming an arch. Insert the pin into the pole end at the corners of
tent. (Fig. 3)
6. Attach frame clips along edges of tent to black main poles. (Fig. 3A)

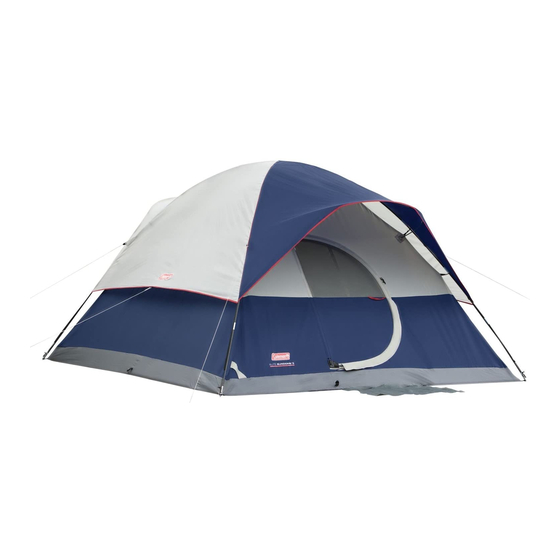

ELITE SUNDOME
Pole
Pole
Pole
Dia.
Repair Kit Replacement Kit
11mm
5010000539
5010000549
6.9mm 5010000542
5010000552
6.3mm 5010000543
5010000545
6.3mm 5010000543
5010000545
Length
Replacement Part No.
550mm
5010000626
670mm
5010000628
Door
Front of Tent
®
6 TENT
7. Stretch corners and sides of tent until fl oor is taut then stake down the
tent per illustration. (Fig. 3)

Hinged, Rigid Door

1. Assemble Vertical Door Pole (shorter black pole with plastic tips); then
insert through zippered vertical pole sleeve on hinged side of door.
(Fig. 4)
2. Insert end of Vertical Door Pole into bottom hinge plate, apply pressure
to form a slight bow, then insert other tip of pole into top hinge. Zip up
vertical pole sleeve. (Fig. 5 & 6)
3. Assemble Door Pole (longer black pole with plastic cap tips); then
insert into zippered pole sleeve at top of door. (Fig. 7)
4. Insert end of Door Pole into top hinge plate, apply pressure to form a
bow, then insert other tip of pole into the bottom hinge. (Fig. 8)
5. Zip up pole sleeve to enclose Door Pole. (Fig. 9)
Vertical Pole
Sleeve
Fig. 1
Door Hinge
Fig. 7
Top
Top
Door
Door
Pole
Pole
Hinge
Hinge
Sleeve
Sleeve

To Attach Rainfly

1. Assemble longer interlocking shock-corded rainfl y pole.
2. Unfold rainfl y. Locate the sleeve, along front edge, and the hook & loop
fasteners on the underside of Rainfl y.
3. Drape Rainfl y over tent. Make sure the sleeve is centered over the
door and the hook & loop fasteners, on the seams on underside of
the Rainfl y, are
positioned over the
black main poles.
4. Slide rainfl y pole
through sleeve at
front of the Rainfl y.
Fig. 2
(Fig. 10)
(continued on
other side)
MODEL 2000005013
Door
3A
3B
Fig. 4
Fig. 5
Fig. 8
Rainfly
Sleeve
Door
Fig. 3
Fig. 6
Fig. 9
Rainfly
Pole
Fig. 10
