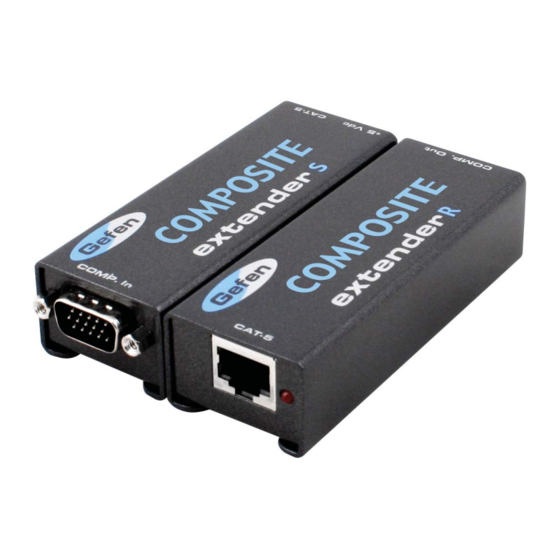

- Page 1 Composite Extender U S E R M A N U A L www.gefen.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Composite Extender is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION FEATURES INSTALLATION INSTRUCTIONS CAT5 WIRING DIAGRAM WIRING DIAGRAM SPECIFICATIONS WARRANTY... -
Page 4: Introduction
The Composite Extender allows users to extend Composite video signals beyond the A/V rack. The Composite Extender Series can be used to extend a Composite signal to cover the distances up to 330 feet. Industry standard Category 5e (CAT-5e) cable is used for the extension. -
Page 5: Features
• Power only required only on transmitter. • Plug & Play installation. • One CAT5 Cable for extension. • No Loss of Quality. Includes: Composite Extender sender unit Composite Extender receiver unit 5V DC power supply 2x VGA to Composite Cables (6 feet) VGA F-F Adapter... -
Page 6: Installation Instructions
Extender Sender Unit. Use the second VGA to Composite Cable to connect the Composite input of your display or projector to the VGA output on the Composite Extender Receiver Unit. Connect the CAT-5 cable between the Composite Extender sender and receiver’s CAT-5 input. -
Page 7: Cat5 Wiring Diagram
CAT5 WIRING DIAGRAM... -
Page 8: Specifications
SPECIFICATIONS Video Amplifi er Bandwidth .................. 350 MHz Input Video Signal ..................1.2 Volts p-p Video In ........................HD-15 Focus ......................25 to 450 FT Video out ....................... HD-15 Link Connector ......................RJ-45 Power Consumption ....................1 Amp Power Supply ......................5V DC Dimensions .................. -
Page 9: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within one (1) year from the date of shipment, Gefen System will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical or other abuse or modifi...
