- Page 1 Composite Extender U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 support@gefen.com www.gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Composite Extender is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
INTRODUCTION FEATURES INSTALLATION INSTRUCTIONS CAT5 WIRING DIAGRAM WIRING DIAGRAM SPECIFICATIONS WARRANTY TABLE OF CONTENTS... -
Page 4: Introduction

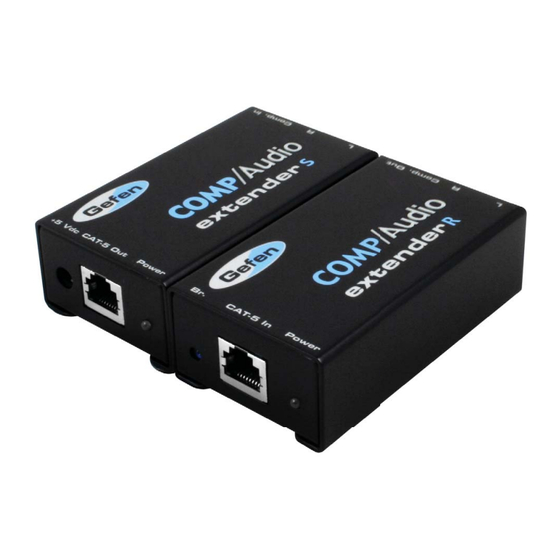

INTRODUCTION Thank you for purchasing the Composite Extender by Gefen, Inc. The Composite Extender allows users to extend Composite video signals beyond the A/V rack. The Composite Extender Series can be used to extend a Composite signal to cover the distances up to 1000 feet. Industry standard Category 5e (CAT-5e) cable is used for the extension. -
Page 5: Features
FEATURES Features • Extends Composite video up to 1000 feet • Power only required only on transmitter. • Plug & Play installation. • One CAT5 Cable for extension. • No Loss of Quality. Includes: (1) Composite Extender sender unit (1) Composite Extender receiver unit (1) 5V DC power supply (1) Composite Cable (1) User’s Manual... -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Connect the Composite output of your TV source to the input on the Composite Extender Sender Unit. Connect the Composite input of your display or projector to the Composite output on the Composite Extender Receiver Unit. Connect the CAT-5 cable between the Composite Extender sender and receiver’s CAT-5 input. -
Page 7: Cat5 Wiring Diagram
CAT5 WIRING DIAGRAM... -
Page 8: Specifications
SPECIFICATIONS Video Amplifi er Bandwidth ... 350 MHz Input Video Signal ... 1.2 Volts p-p Video In ...1 RCA Composite Video Audio In ...2 RCA L+R Audio Video Out ...1 RCA Composite Video Audio Out ...2 RCA L+R Audio Link Connector ... RJ-45 Power Consumption ... -
Page 9: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
