UV8020
TROUBLESHOOTING

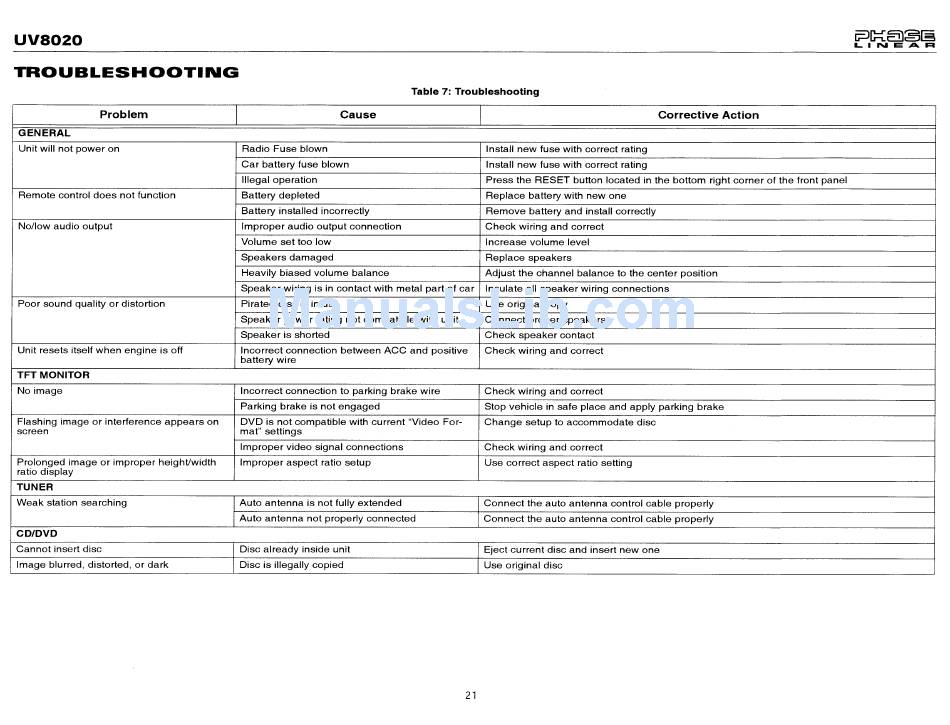

Table 7: Troubleshooting
Problem Cause Corrective Action
GENERAL
Unit will not power on Radio Fuse blown
Install new fuse with correct rating
Car battery fuse blown
Install new fuse with correct rating
Illegal operation Press the RESET button located in the bottom right corner of the front panel
Remote control does not function Battery depleted Replace battery with new one
Battery installed incorrectly Remove battery and install correctly
No/low audio output Improper audio output connection Check wiring and correct
Volume set too low Increase volume level
Speakers damaged Replace speakers
Heavily biased volume balance
Adjust the channel balance to the center position
Speaker wiring is in contact with metal part of car Insulate all speaker wiring connections
Poor sound quality or distortion
Pirated disc is in use Use original copy
Speaker power rating not compatible with unit Connect proper speakers
Speaker is shorted Check speaker contact
Unit resets itself when engine is off Incorrect connection between ACC and positive Check wiring and correct
battery wire
TFTMONITOR
No image
Incorrect connection to parking brake wire Check wiring and correct
Parking brake is not engaged Stop vehicle in safe place and apply parking brake
Flashing image or interference appears on DVD is not compatible with current "Video For- Change setup to accommodate disc
screen
mat" settings
Improper video signal connections Check wiring and correct
Prolonged image or improper height/width Improper aspect ratio setup Use correct aspect ratio setting
ratio display
TUNER
Weak station searching Auto antenna is not fully extended Connect the auto antenna control cable properly
Auto antenna not properly connected Connect the auto antenna control cable properly
CD/DVD
Cannot insert disc Disc already inside unit Eject current disc and insert new one
Image blurred, distorted, or dark Disc is illegally copied Use original disc
21
