- Page 1 H3C MS8000 Media Switch Server User Manual Hangzhou H3C Technologies Co., Ltd. http://www.h3c.com Manual Version: T2-08019E-20081202-C-2.01...
- Page 2 SecPro, SecPoint, SecEngine, SecPath, Comware, Secware, Storware, NQA, VVG, V G, V G, PSPT, XGbus, N-Bus, TiGem, InnoVision and HUASAN are trademarks of Hangzhou H3C Technologies Co., Ltd. All other trademarks that may be mentioned in this manual are the property of their respective owners.
-
Page 3: About This Manual
About This Manual Organization H3C MS8000 Media Switch Server User Manual describes the appearance, features, installation, configuration, and management for H3C MS8000 media switch server (hereinafter referred to as the MS8000). This document is organized as follows: Chapter Contents Describes the appearance, features, LEDs, interfaces and 1 Overview technical specifications of the MS8000. - Page 4 Obtaining Documentation You can access the most up-to-date H3C product documentation on the World Wide Web at this URL: http://www.h3c.com. The following are the columns from which you can obtain different categories of product documentation: [Products & Solutions]: Provides information about products and technologies, as well as solutions.
-
Page 5: Table Of Contents
Rear View ········································································································································1-2 Technical Specifications··························································································································1-3 2 Device Installation ·····································································································································2-1 Precautions ·············································································································································2-1 Installation Flow ······································································································································2-1 Before Installation ···································································································································2-2 Installing the MS8000 in a Rack ·············································································································2-2 Installation Preparation····················································································································2-2 Installation Procedure······················································································································2-2 Verification·······································································································································2-3 Installing the MS8000 on a Workbench ··································································································2-4 Installation Preparation····················································································································2-4 Installation Procedure······················································································································2-4 Installing the Cables································································································································2-4... - Page 6 Changing Password ······················································································································4-11 Traffic Statistics·····································································································································4-11 Introduction····································································································································4-11 Displaying VOD Traffic Statistics···································································································4-12 Displaying Forwarding Traffic Statistics ························································································4-12 5 Compliance and Safety Manual for MS8000 ···························································································5-1 Regulatory Compliance Information········································································································5-1 Regulatory compliance standards ···································································································5-1 European Directives compliance·····································································································5-1 USA regulatory compliance ·············································································································5-2 Canada regulatory compliance········································································································5-2 Japan regulatory compliance ··········································································································5-3...
-
Page 7: Overview
VOD of the audio and video history data The MS8000 is compatible with the all the H3C series of video encoders. It reads the audio and video history data from the IP SAN (storage area network), and then sends the data in the standard RTP streams to the decoder client for decryption and replay. -

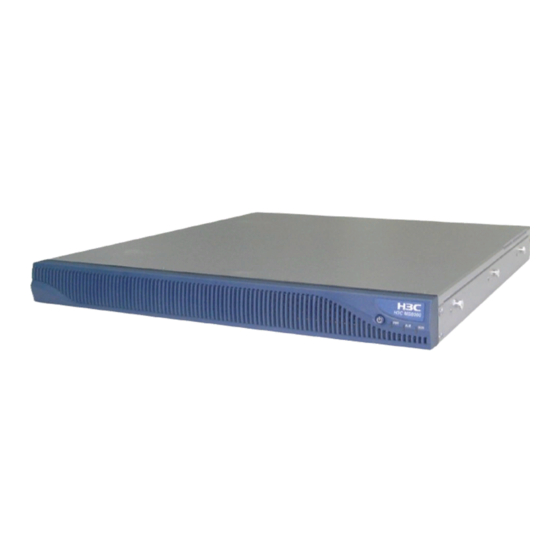

Page 8: Appearance
Green Steady on The MS8000 has started up. The MS8000 is not powered on. Hardware exceptions occur to the system. The MS8000 is performing power-on self-test (POST), or no alarms exist. Steady on The MS8000 is operating normally. Green The MS8000 is operating abnormally. -
Page 9: Technical Specifications
Technical Specifications Table 1-2 MS8000 hardware specifications Item Description 2.8 GHz 2M Cache Xeon Processor Memory (RAM) 2 GB Physical dimensions (H × 43.6 × 430 × 503.4 mm (1.72 × 16.93 × 19.82 in.) W × D) Weight 9.4 kg (20.72 lb) -
Page 10: Device Installation
MS8000: Install the MS8000 indoors. Install the MS8000 in a place with good ventilation, especially around the heat dissipation holes. Do not place any objects on the device. Make sure the requirements on the environment temperature and humidity, and the power supply are met. -
Page 11: Before Installation
Installation Procedure Step1 As shown in Figure 2-2, fix the mounting brackets to the two sides of the MS8000 chassis with screws. Press the inner slide rails (left and right) to the screws on the chassis in the direction indicated by ①,... -
Page 12: Verification
Figure 2-3 Install outer slide rails Step3 Lift the MS8000 to align the inner slide rails with the outer slide rails, and push the MS8000 slowly inside the rack along the slide rails until the mounting brackets contact the rack posts at the front sides of the rack. -
Page 13: Installing The Ms8000 On A Workbench
Make sure the workbench is sturdy enough to hold the MS8000, its accessories and the cables. Make sure the workbench is well grounded and is stable. The MS8000 is shipped with feet. You need to remove the stickers from the feet and fasten the feet to the appropriate positions on the bottom of the MS8000. -
Page 14: Connecting The Ground Wire
If your MS8000 is installed in a 19-inch rack, you can lay the cables either over the top or below the bottom of the rack according to the actual situation (whether the signal cables of the equipment room are wired on the rack top or below the rack bottom). -
Page 15: Connecting The Ac Power Cable
The MS8000 ships with a cable retention clip. Before connecting the power cable, install the cable retention clip first. Step1 Ensure that the power switch of the MS8000 is off, and the power cable retention clip has been installed on the MS8000 correctly. -
Page 16: After Installation
The power to use meets the requirements of the MS8000. The MS8000 is grounded properly, and all cables are connected correctly and firmly. No outdoor cabling is allowed. If all the above check results satisfy the requirements, turn on the power switch to start up the MS8000. -
Page 17: Initial Configuration
No proxy is set for the IE browser on the client PC. Configuration Tasks The MS8000 is installed in the Linux operating system. Its default settings are: msserver1 for the hostname, 192.168.0.30/24 for the IP address on eth1 (as shown in Figure 1-3), 192.168.0.1 for the gateway IP address, root for username, and passwd for the password. -
Page 18: Configuring Host Name
Step4 Edit the hosts file so that the Web server can identify the host name. [root@msserver ~]# vi /etc/hosts Set the file content to 127.0.0.1 localhost.localdomain msserver localhost. Do not change the MS8000 host name after you have configured it successfully, otherwise, system may operate improperly. Configuring the Network Follow these steps to configure the network settings as needed. - Page 19 Interrupt: 169 Step3 Change the configuration. Suppose the IP address of the MS8000 is 192.168.112.186 with the subnet mask being 255.255.255.0, and the default gateway IP is 192.168.112.1. Perform the following configuration. In Linux, use the following command to enter the edit status of configuration file for the eth1 port.
-
Page 20: Configuring Parameters For The Ms8000 Services
After the modification, press Esc, and then enter :wq! if you want to save the changes and exit, or enter :q! if you want to exit without saving the changes. After the services restarts, the IP address is changed. Log in to the MS8000 using the new IP address. -
Page 21: Restarting Ms8000 Services
Esc, and then enter :wq! if you want to save the changes and exit, or enter :q! if you want to exit without saving the changes. Restarting MS8000 Services Step1 After configuration, use the msserver restart command to restart the MS8000 services to make the configuration take effect. [root@msserver ~]# msserver restart Step2 After that, use the msserver status command to display the status of all the services. -
Page 22: Web-Based Management
To log in to the Web interface: Step1 Launch the IE browser on the client PC, and enter the IP address of the MS8000 in the address bar. Step2 On the login page, type the username and password, and click OK to enter the Web interface similar to... -
Page 23: Logging Out
If you are idle without operation for 10 minutes, the system logs you out automatically. Log in again for operations. Logging Out To log out of the MS8000, you can click Quit in the navigation tree and confirm your operation. System Management Introduction The system management allows you to view version information, communication protocol parameters, export and import the configuration, upgrade software, and manage devices. -
Page 24: Displaying Version Information
Step1 Select System Management, and then select the Communication Protocol tab to enter the page as shown in Figure 4-3. Figure 4-3 Communication protocol management Step2 Type the IP address of the VM call control service and the ID of the MS8000, as described in Table 4-1. Table 4-1 Description of communication protocol parameters Item... -
Page 25: Upgrading Software
"Exporting/Importing Configuration" section on page 4-3. Do not power off the device during upgrading, otherwise, the MS8000 may operate improperly. After the software is upgraded, the MS8000 services will restart. You have to re-log in to the Web interface for further configuration. -
Page 26: Displaying Device Information
Displaying Device Information The MS8000 allows you to display the current information of the server. You can check the information in real time against the normal range. This greatly facilitates the server maintenance. Select System Management, and then select the Device Status tab to enter the page as shown in Figure 4-6. -
Page 27: Log Management
Log Management Introduction The logs record key events that happened in the MS8000. Two types of logs are recorded, system logs and operation logs. System logs: Record events that occurred during the MS8000 operation. Operation logs: Record configuration made by the administrator. -
Page 28: Displaying Operation Logs
Click Refresh to view the latest log information. Only the logs of the past three months can be queried and displayed. Displaying Operation Logs Select Log Management, and then select the Operation Log tab to enter the page displaying the operation logs. -
Page 29: Exporting Logs
Figure 4-10 Query logs Step2 Specify the query conditions. You can specify the event level if you select to query system logs. This is not available for operation logs. Step3 Click the calendar icon and set the start and end time as required. The start time must be ahead of the end time. -
Page 30: User Management
User Management Introduction The administrators of the MS8000 falls into two categories: super administrator and common administrator. Super administrator: Owns the rights to execute all the configuration and management operations, including creating, editing, and deleting common administrators. In addition, the super administrator has the preempt login right over other users, that is, the login of super administrator kicks out other users that have logged in. -
Page 31: Adding A User
Adding a User Only the super administrator has the permission to add users to the system. To add a user, follow these steps: Step1 Select User Management to enter the page listing the users. Step2 Click Add to enter the page for adding a user, as shown in Figure 4-13. Figure 4-13 Add a user Step3 Input the information as required, such as the user name and password. -
Page 32: Resetting Password
Step2 Type in the old password, the new password and then the confirm password. Step3 Click OK. Traffic Statistics Introduction The MS8000 Web interface displays the current service status, including the VOD service status and forwarding service status. Select Traffic Statistics to enter the page as shown in Figure 4-14. 4-11... -
Page 33: Displaying Vod Traffic Statistics
Figure 4-14 Traffic statistics Displaying VOD Traffic Statistics Select Traffic Statistics to enter the page as shown in Figure 4-14. The VOD Traffic tab is displayed by default. The information about the VOD service status is displayed, including the media URL, speed rate, and client IP address. - Page 34 Figure 4-16 Forwarding traffic statistics 4-13...
-
Page 35: Compliance And Safety Manual For Ms8000
EN 60825-2 FDA 21 CFR Subchapter J GB 4943 European Directives compliance LVD/EMC Directive MS8000 product complies with the European Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC. A copy of the signed Declaration of Conformity can be downloaded from: http://www.h3c.com/portal/Technical_Documents... -
Page 36: Usa Regulatory Compliance
USA regulatory compliance FCC Part 15 MS8000 complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. -
Page 37: Japan Regulatory Compliance
Japan regulatory compliance VCCI MS8000 complies with the requirements of VCCI Class A Information Technology Equipment (ITE). Warning: If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be required to take corrective actions. - Page 38 Anmerkung Lesen Sie bitte alle Arbeitsanweisungen und Sicherheitvorschriften sorgfältig durch, bevor Sie mit dem Arbeiten beginnen. Nur durch Beachtung dieser Hinweise lässt sich das Unfallrisiko minimieren. Die in anderen Handbüchern aufgeführten Symbole Anmerkung, Achtung, Warnung und Gefahr beinhalten nicht alle zu beachtenden Sicherheitvorschriften. Sie dienen lediglich der Ergänzung. Deshalb muss sich das für die Installation und Instandhaltung der Ausrüstung verantwortliche Personal mit allen Sicherheitshinweise vertraut machen.
- Page 39 Table 5-2 Safety symbol and description Sicherheitssymbole und Beschreibung 安全标识和描述 Safety Symbol Description Symbole Erläuterung 安全标识 描述 Generic alarm symbol: To suggest a general safety concern Alarm: Hinweis auf ein generelles Sicherheitsproblem 一般注意标识：用于一般安全提示 ESD protection symbol: To suggest electrostatic-sensitive equipment. ESD-Schutz: Hinweis auf Beschädigung infolge elektrostatischer Entladung 防静电标识：用于表示静电敏感的设备...
-
Page 40: Electricity Safety Elektrische Sicherheit 用电安全
For AC supplied model: The plug-socket combination must be accessible at all times because it serves as the main disconnecting device. Mit Wechselstrom betriebenes Modell: Der Netzstecker muss jederzeit leicht zugänglich sein. AC 供电：插座必须随时可用，因为它是主要的切断电源装置。 Because the device has several power supplies, disconnect all of them to switch off the device. Da das Gerät mehrere Energiequellen hat, ist es notwendig stets alle Verbindungen zu unterbrechen, um den energiefreien Zustand zu erreichen. - Page 41 Sollte sich Wasser im Baugruppenträger befinden oder der Baugruppenträger feucht sein, ist die Energiezufuhr sofort zu unterbrechen und das System abzuschalten. 当有液体进入机架或机架有损坏时，请立即切断电源。 When operation is performed in a damp environment, make sure that water is kept off the equipment. Muss in einem feuchten Umgebung gearbeitet werden, ist sicherzustellen, dass kein Wasser in die Ausrüstung dringen kann.
- Page 42 Anmerkung Das Entfernen und Anbringen von Zuleitungen ist strengstens verboten. Kurzschlüsse zwischen innerem und äußerem Leiter können Lichtbögen oder Funkenflug verursachen, was zu Feuer oder einer Augenverletzung führen kann. 禁止安装和移动带电的线缆。因为导电体和带电的线缆，即使短暂接触，也会引起电火花或电弧，从而 导致失火或是伤害眼睛。 Before the power cable is installed or removed, the power switch must be turned off. Das System muss stets abgeschaltet werden, bevor die Zuleitung angebracht oder entfernt wird.
-
Page 43: Fuse Sicherung保险丝
Thunderstorm Gewitter 防雷击 Danger High voltage and AC operations or operations on a steel tower and a mast on a thunderstorm day are prohibited. In order to prevent the equipment from being damaged by lightning, proper grounding is required. Gefahr Arbeiten mit Hochspannung und Wechselstrom oder Arbeiten auf Stahltürmen und masten während eines Gewitters sind verboten.
