Summary of Contents for Chauvet LX-15

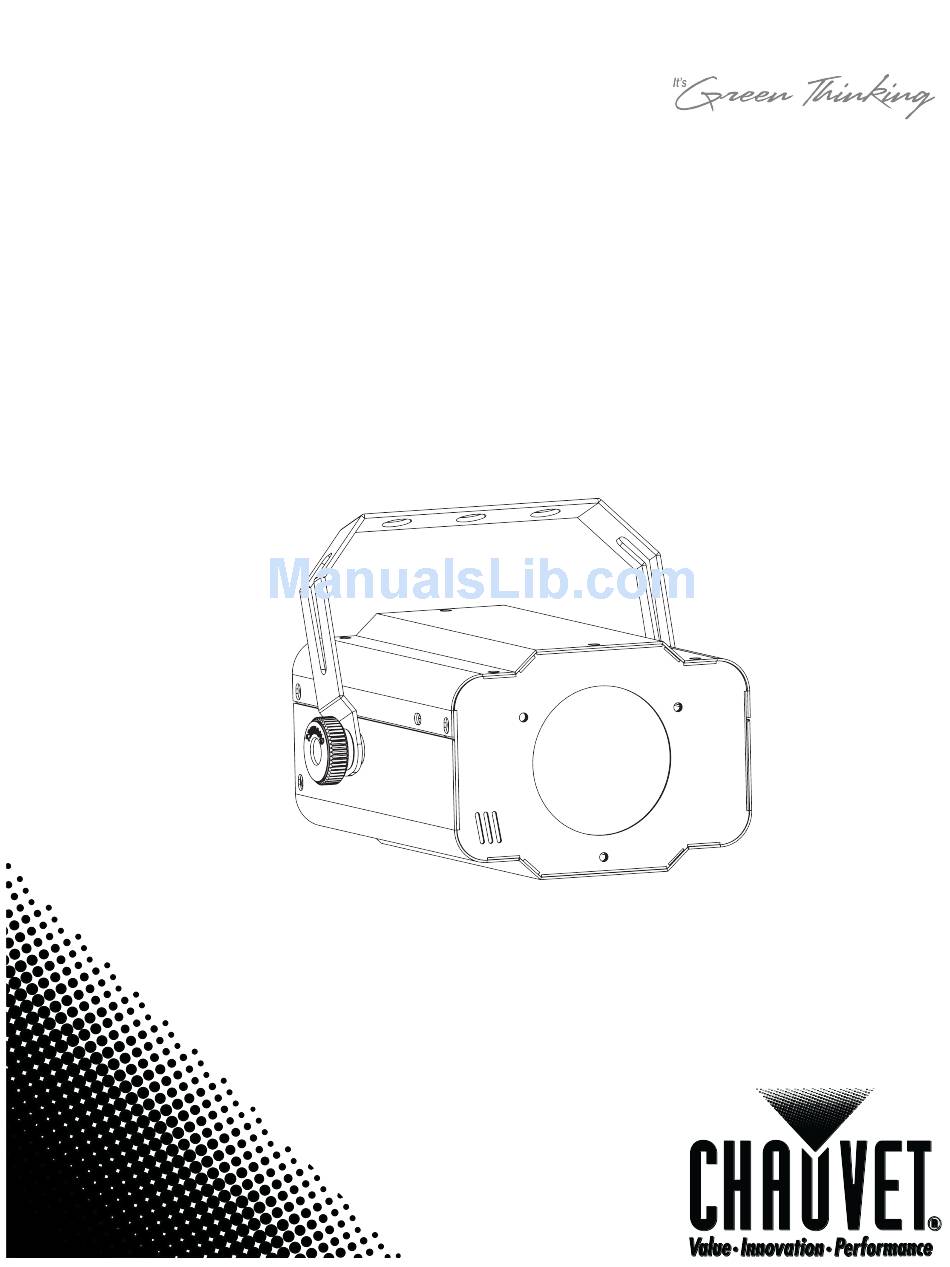

- Page 1 LX-15 User Manual...
-
Page 2: Table Of Contents
CONTACT US ...................................12 CHAUVET®, 2010, All Rights Reserved Information and specifications in this User Manual are subject to change without notice. CHAUVET® assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. Author: Anthony Chiappone... -
Page 3: Before You Begin
In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Manual Conventions CHAUVET® manuals use the following conventions to differentiate certain types of information from the regular text. EANING... -
Page 4: Safety Instructions
Safety Instructions Please read these instructions carefully. It includes important information about the installation, usage, and maintenance of this product. · Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ·... -
Page 5: Introduction
2. I NTRODUCTION Product Overview Microphone Safety Microphone Sensitivity Power In Fuse holder Back Panel 2. Introduction 1/11/2011 6:12 PM... -
Page 6: Setup
3. S ETUP AC Power This fixture runs on 100~240 VAC, 50/60 Hz. Before powering on the unit, make sure the line voltage to which you are connecting it is within the range of accepted voltages. To determine the power requirements for a particular fixture, see the label affixed to the back plate of the fixture or refer to the fixture’s specifications chart. -
Page 7: Mounting
Mounting Orientation The LX-15 may be mounted in any position, provided there is adequate room for ventilation. Rigging Be sure that the structure can support the weight of the fixture. Please see the “Technical Specifications” section of this manual for a detailed weight listing. Mount the fixture securely. -
Page 8: Operating Instructions
4. O PERATING NSTRUCTIONS Standalone (Sound-Active) Please see the instructions below for details on this mode. Plug the fixture into power. Rotate the microphone sensitivity adjustment knob until the desired level has been reached. The microphone will only respond to low frequencies (bass). 4. -
Page 9: Appendix
· Check power cord Device does not · Replace fuse with same type & power up · Blown fuse rating If you still have a problem after trying the above solutions, please contact CHAUVET® Technical Support. 5. Appendix 1/11/2011 6:12 PM... -
Page 10: General Maintenance
Package must be clearly labeled with a Return Merchandize Authorization Number (RMA #). Products returned without the RMA # will be refused. Call CHAUVET® and request an RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 11: Technical Specifications
Rating (RGB) ................3 W, 350 mA x 3, 50,000 hrs PHOTO OPTIC Coverage angle ........................36° INDOOR/OUTDOOR Rating ......................For indoor use only THERMAL Maximum ambient temperature ................104° F (40° C) ORDERING INFORMATION LX-15 ........................... LX15 WARRANTY INFORMATION Warranty....................1-year limited warranty... -
Page 12: Contact Us
954-929-1115 (Press 4) Fax ..................954-929-5560 (Attention: Service) Email ....................tech@chauvetlighting.com World Wide Web ............... http://www.chauvetlighting.com UNITED KINGDOM & IRELAND General Information ................CHAUVET® Europe Ltd Address ..........................Unit 1C Brookhill Road Industrial Estate Pinxton, Nottingham, UK NG16 6NT Voice ......................+44 (0)1773 511115 Fax .......................
