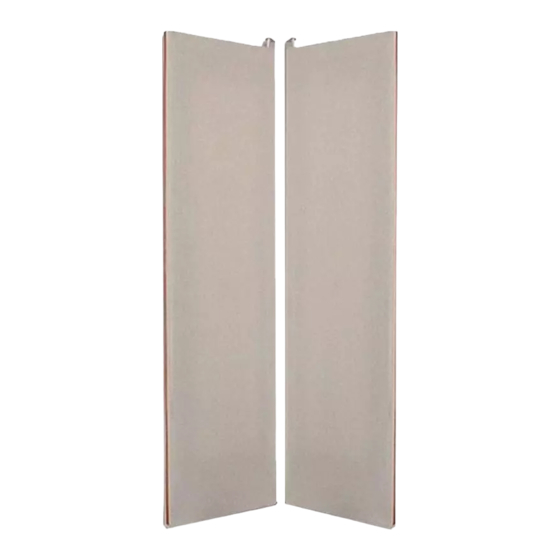

MAGNEPLANAR® MMG W
Instruction Manual
White Bear Lake, Minnesota
www.magnepan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MMG W and is the answer not in the manual?

Questions and answers

Summary of Contents for MAGNEPLANAR MMG W

  • Page 1 MAGNEPLANAR® MMG W Instruction Manual White Bear Lake, Minnesota www.magnepan.com...
  • Page 2 Connect the (+) (red) output from your amplifier to the white wire (with red mark) on the MMG W, and (-) (black) of the amplifier to the all white wire on the MMG W. If the speaker wires are not routed...
  • Page 3 MMG W INVERTED INSTALLATION The MMG W may be installed in an inverted position (if you wish to have the wires exit at the top of the speaker). Invert the brackets during installation. Since the pin may fall out in an inverted position,...
  • Page 4 Front Channel Installation Typical side wall installation Typical cabinet installation The MMG W may be placed flat against the wall or cabinet when not in operation. In operation, the speaker should be positioned as shown above.
  • Page 5 (approaching an equilateral triangle with the listener). Dual Center Channel Installation A dual mono center channel MMG W achieves a derived center channel image. When sitting to the right, the left center channel speaker that is on axis with the listener is louder than the right...
  • Page 6 For this type of installation, hook the 2 center channel MMG W's in series as shown below. Rear Channel Installation Typical rear channel installation More precise rear imaging can be achieved by increasing the angle and receiving more direct radiation from the speaker. However, our experience is that a direct radiating surround speaker can be too precise in rear imaging, and the listener becomes aware of the sound coming from a speaker which ruins the holographic effect of surround sound.
  • Page 7 Ideally, the MMG W should be positioned about 24 inches from the floor, but may be installed as high as the ceiling, as shown below. It also shows an optional horizontal ceiling installation. The MMG W may also be installed on the rear walls, as shown below.
