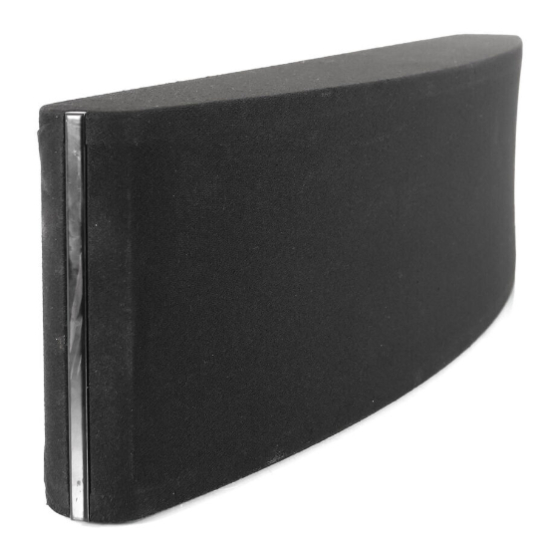

- Page 1 MAGNEPLANAR® MMG C Instruction Manual White Bear Lake, Minnesota www.magnepan.com...
- Page 2 1 - Speaker Emblem 1 - Owners Manual PACKAGING Save all packaging. If you ever need to ship the MMG C, it can be shipped safely only in the original packaging. Should you discard it, packaging is available from Magnepan.
- Page 3 INSTALLATION IN A CABINET The MMG C may be placed above or below the TV monitor in a cabinet. If the speaker is placed in an enclosed part of the cabinet, a space of 12" or more is required behind the speaker for damping material.
- Page 4 Again, for the smoothest response, tilt the MMG C to aim it approximately at the listener's head as shown above. INSTALLATION USING BUILT- IN "T" NUTS As shown below, there are 3 "T" nuts built into the top and bottom of the MMG C, at the designated locations.
- Page 5 "full range" front left/right Magneplanars. AMPLIFICATION WARNING: The MMG C is a 5 ohm speaker. Be certain the amplifier or receiver you are using is capable of driving a 5 ohm load. If you are uncertain, call the manufacturer of the amplifier.
- Page 6 SPECIFICATIONS System Description: Curved, one-way planar magnetic dipole loudspeaker Frequency Response: 100Hz - 16kHz + 5dB Recommended Power: See "Frequently Asked Questions" on our web site at www.magnepan.com Sensitivity: 88dB @ 2.83V/1 Meter/500Hz Impedance: 5 Ohms Dimensions: 36" W X 9" H X 5-1/" D Warranty: Limited 3-Year to Original Owner Shipping Weight: 18 Lbs.
