Summary of Contents for Zanussi FJE 1207
-

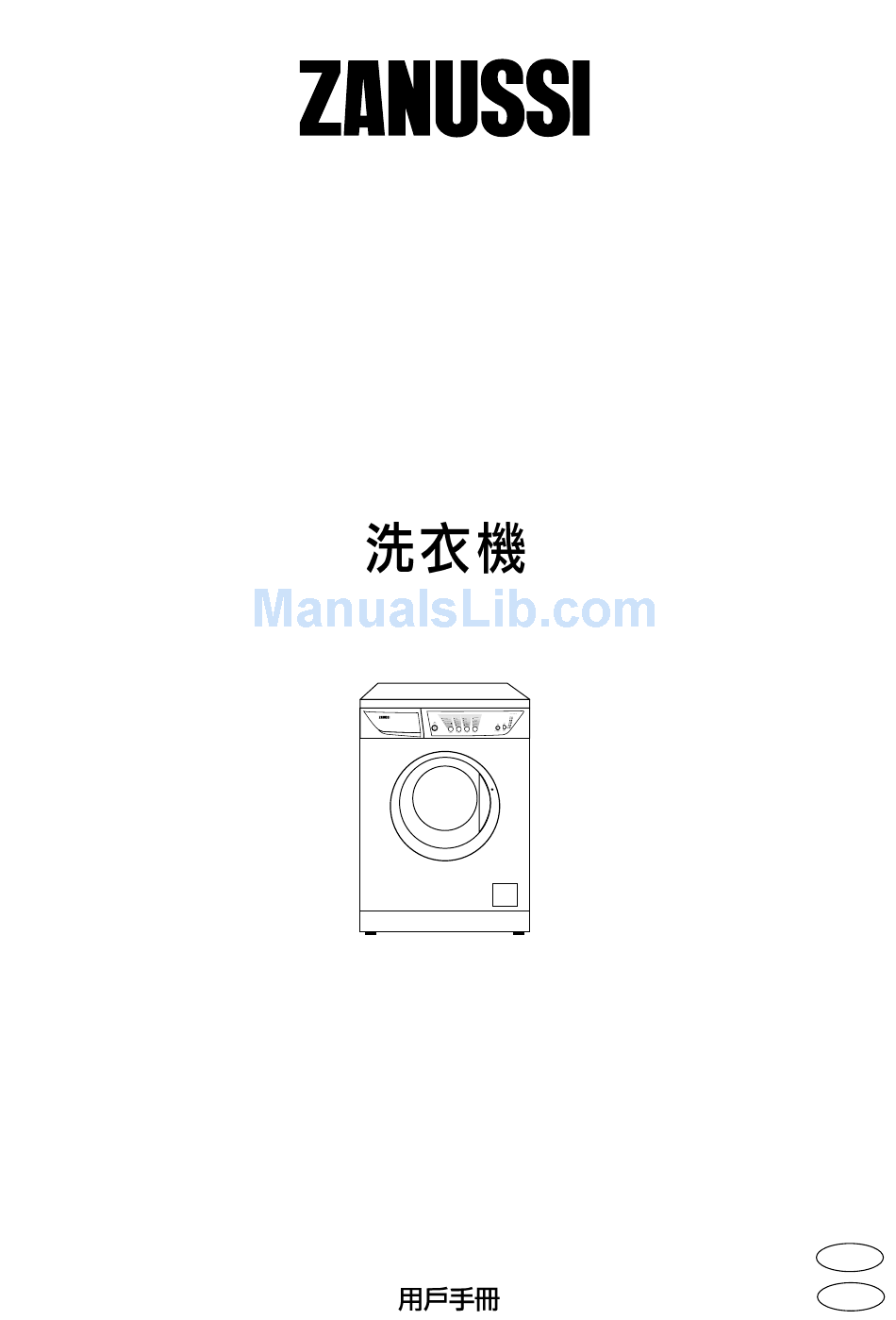

Page 1: Washing Machine
WASHING MACHINE FJE 1207 USER MANUAL 132999880... - Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
-
Page 3: Table Of Contents
Contents Warnings Maintenance Door seal Disposal Bodywork Detergent dispenser drawer Tips for environmental protection 5 Drain filter Water inlet filter Technical specifications Emergency emptying out The dangers of freezing Installation Unpacking Something not working? 22-23 Positioning Water inlet Water drainage Electrical connection Your new washing machine Description of the appliance... -
Page 4: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door •... -
Page 5: Disposal
Child safety • Make sure that children or pets do not climb into the drum. • Children are often not aware of how dangerous • When the appliance is to be scrapped, cut off the electrical appliances can be. When the machine is electrical supply cable and destroy the plug with working, children should be carefully supervised the remaining cable. -
Page 6: Technical Specifications
Technical specifications DIMENSIONS Height 85 cm Width 60 cm Depth 60 cm MAXIMUM LOAD Cotton 7 kg Synthetics 3 kg Delicates 3 kg Woollens SPIN SPEED 1200 rpm max. POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED 2200 W MINIMUM FUSE PROTECTION 10 A WATER PRESSURE... -
Page 7: Installation
Installation Unpacking Positioning Install the machine on a flat hard floor. All transit bolts and packing must be removed Make sure that air circulation around the machine is before using the appliance. not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen You are advised to keep all transit devices so that units. -
Page 8: Water Drainage
Water drainage Electrical connection This machine is designed to operate on a 220-230 V, The end of the drain hose can be positioned in three single-phase, 50 Hz supply. ways: Hooked over the edge of a sink using the plastic Check that your domestic electrical installation can hose guide supplied with the machine. -
Page 9: Your New Washing Machine
Your new washing machine This new washing machine, which is fitted with the Jet system, patented Zanussi, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. Further savings are achieved by washing small loads of laundry, since water and electricity consumption is proportional to the quantity and type of laundry being washed. -
Page 10: Use
Control panel 1 ON/OFF button 4 TEMPERATURE button Press this button to switch the washing machine on. Press this button repeatedly to increase or decrease Press the ON/OFF button again to switch the the temperature, if you want your laundry to be washed machine off. -
Page 11: Options Button
At the end of the cycle, the light of the START/ drained. PAUSE button will flash and the programme • BIO: this function can be selected for cotton and phase indicator light will remain lit to indicate that synthetics with a washing temperature of 40° or the water must be drained. - Page 12 Example: 10 Programme phase indicator In this case, only the lights spin (at the speed When you select a programme, the lights relevant to provided for the the phases that form the programme light up. selected type of fabric) will be performed. This button allows you also to select special programmes, such as RINSES, SPIN and DRAIN.
-
Page 13: Washing Hints
Laundry weights Washing hints The following weights are indicative: bathrobe 1200 g Sorting the laundry napkin 100 g Follow the wash code symbols on each garment quilt cover 700 g label and the manufacturer’s washing instructions. Sort the laundry as follows: sheet 500 g whites, coloureds, synthetics, delicates, woollens. -
Page 14: Detergents And Additives
Ink: depending on the type of ink, moisten the fabric Quantity of detergent to be used first with acetone (*), then with acetic acid; treat any The type and quantity of detergent will depend on residual marks on white fabrics with bleach and then the type of fabric, load size, degree of soiling and rinse thoroughly. -
Page 15: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not... -
Page 16: Operating Sequence
4. Switch the machine on Operating sequence To switch the machine on, press the ON/OFF button : the mains-on light comes on. Before washing your first load of laundry, we recommend that you run a cotton cycle at 60°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. -
Page 17: Start The Programme
7. Select the spin speed or the 10. Start the programme RINSE HOLD option Press the START/PAUSE button. The relevant light will stop flashing, the DOOR LOCKED light will light Press the SPIN SPEED button repeatedly, in up, and only the light relevant to the phase that is in order to select the desired spin speed or the RINSE progress will remain lit. -
Page 18: End Of Programme
13. How to open the door during 14. End of programme the cycle of a programme At the end of the programme, the washing machine stops automatically and gives an audible signal. You can open the door, after having set the washing machine to PAUSE, provided the following If you had selected the RINSE HOLD option, the conditions exist:... -
Page 19: Washing Programmes
Programme chart Washing programmes Type of Consumption* laundry and Max. Programme/ Description of Available options symbols on load temperature programme Energy Water Time labels litres h/min. 7 kg Wash at 2.35 Cottons White cotton: 60°-90°C 60°-90°C e.g. sheets, 3 rinses tablecloths, Long spin household... -
Page 20: Maintenance
Maintenance 1. Door seal Detergent can also accumulate inside the drawer recess: clean it with an old toothbrush. Refit the Check from time to time the door seal and eliminate drawer after cleaning. eventual possible objects that could be trapped in the fold. -
Page 21: Water Inlet Filter
5. Water inlet filter If you notice that the machine is taking longer to fill, check that the filter in the water inlet hose is not blocked. Turn off the water tap. Unscrew the hose from the tap. Clean the filter with a stiff brush. Screw the hose back onto the tap. -
Page 22: Something Not Working
Something not working? Problems which you can resolve yourself. During machine operation it is possible that one of the following lights on programme phase indicator comes on and the START/PAUSE light and the END light flash indicating a fault in machine operation: : problem with the water supply : problem with water draining : door open... -
Page 23: The Door Will Not Open
Problem Possible cause • The door will not open: • The programme is still running, the drum is turning. • The door lock has not yet released (door locked light on). • The water level is above the bottom edge of the door. •...
