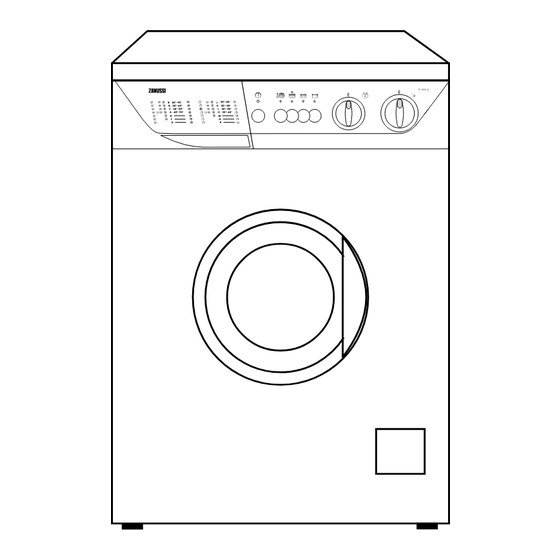

Page 1: Washing Machine
WASHING MACHINE STIRALWNAÅ MAfiINA TVÄTTMASKIN PYYKINPESUKONE FJ 905 N F 805 N 60 -95 30 -60 30 -60 30 -40 30 -40 30 -40 60 -95 30 -60 INSTRUCTION BOOKLET RUKOVODSTVO PO ÈKSPLUATACII BRUKSANVISNING KÄYTTÖOHJE 132998711... - Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
-
Page 3: Table Of Contents
Contents Warnings Maintenance Bodywork Disposal Door seal Detergent dispenser drawer Tips for environmental protection 5 Drain filter Water inlet filter Technical specifications Emergency emptying out Frost precautions Installation Unpacking Something not working? 20-21 Positioning and levelling Water inlet Water drainage Electrical connection Your new washing machine Description of the appliance... -
Page 4: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • All internal packing must be removed before using • Leave the porthole door slightly ajar when the the appliance. -
Page 5: Disposal
Child safety • Children are often not aware of how dangerous • Keep all detergents in a safe place out of children’s electrical appliances can be. When the machine is reach. working, children should be carefully supervised • Make sure that children or pets do not climb into and not be allowed to play with the appliance. -
Page 6: Technical Specifications
Technical specifications DIMENSIONS Height 85 cm Width 60 cm Depth 45 cm MAXIMUM LOAD Cotton Synthetics Delicates Woollens SPIN SPEED 900 rpm max. POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED 2200 W MINIMUM FUSE PROTECTION 10 A WATER PRESSURE Minimum 50 kPa Maximum... -
Page 7: Installation
Installation Unpacking Positioning and levelling Install the machine on a flat hard floor. All transit bolts and packing must be removed Make sure that air circulation around the machine is before using the appliance. not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen You are advised to keep all transit devices so that units. -
Page 8: Water Drainage
Water drainage Electrical connection The end of the drain hose can be positioned in three This machine is designed to operate on a 220-230 V, ways: single-phase, 50 Hz supply. Hooked over the edge of a sink using the plastic Check that your domestic electrical installation can hose guide supplied with the machine. -
Page 9: Your New Washing Machine
Your new washing machine Your new washing machine, fitted with the Zanussi “JET SYSTEM”, meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. Even small loads are washed “economically” because the amount of water used is regulated automatically according to the load and type of fabric. -
Page 10: Use
Control panel 6 Intensive rinse button 1 Detergent dispenser drawer Can be used only for cotton programmes A-B-C. 2 ON/OFF button The machine will perform the rinses with more water. This option is recommended for people who are By depressing this button the machine is switched on. allergic to detergents and in areas where the water is By depressing it again the machine is switched off. -
Page 11: Washing Hints
Washing hints Laundry weights The following weights are indicative: Sorting the laundry bathrobe 1200 g Follow the wash code symbols on each garment napkin 100 g label and the manufacturer’s washing instructions. quilt cover 700 g Sort the laundry as follows: sheet 500 g whites, coloureds, synthetics, delicates, woollens. -
Page 12: Detergents And Additives
Red wine: soak in water and detergent, rinse and Quantity of detergent to be used treat with acetic or citric acid, then rinse. Treat any The type and quantity of detergent will depend on residual marks with bleach. the type of fabric, load size, degree of soiling and Ink: depending on the type of ink, moisten the fabric hardness of the water used. -
Page 13: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95 C 60 C 40 C 30 C Hand wash... -
Page 14: Operating Sequence
Operating sequence 4. Select the desired option(s) Depress one or more buttons, depending on the Before washing your first load of laundry, we selected programme. recommend that you run a cotton cycle at 60°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. -
Page 15: At The End Of The Programme
7. At the end of the programme The machine stops automatically. If you have selected a programme which ends with the water of the last rinse left in the tub (button depressed), drain the water before opening the door. Wait one or two minutes before opening the door to give the electric locking mechanism time to release Depress the ON/OFF button again to switch the machine off. -
Page 16: Washing Programmes
Programme table Washing programmes for cotton and linen Max. load: 4.5 kg Possible Progr. Temp. Type of laundry Cycle description options WHITES WITH PREWASH, Prewash at 40°C for example work garments, Wash at 60°-95°C 60°-95° sheets, household linen, 3 rinses underwear, towels Long spin WHITES WITHOUT... - Page 17 Programme table Washing programmes for synthetics, mixed fabrics, delicates and wool Max. load: 1.5 kg, wool 1 kg Possible Progr. Temp. Type of laundry Cycle description options SYNTHETICS WITH Prewash at 40°C PREWASH, for example Wash at 30°-60°C 30°-60° underwear, coloured items, 3 rinses shirts, blouses Short spin...
-
Page 18: Maintenance
Maintenance Bodywork Detergent can also accumulate inside the drawer recess: clean it with an old toothbrush. Refit the Clean the outside of the machine with soap and drawer after cleaning. water only. Rinse with clean water and dry with a soft cloth. -
Page 19: Water Inlet Filter
Water inlet filter Frost precautions If you notice that the machine is taking longer to fill, If the machine is installed in a place where the check that the filter in the water inlet hose is not temperature could drop below 0°C, proceed as blocked. -
Page 20: Something Not Working
Something not working? Problems which you can resolve yourself. Problem Possible cause • The machine does not start up: • The door is not firmly closed. • The machine is not plugged in or there is no power at the socket. •... - Page 21 Problem Possible cause • Water is not visible in the • The machine, which is the result of modern technology, runs in a very economical way with low machine: water consumption. Performance is nevertheless excellent. • Spinning starts late or the •...
