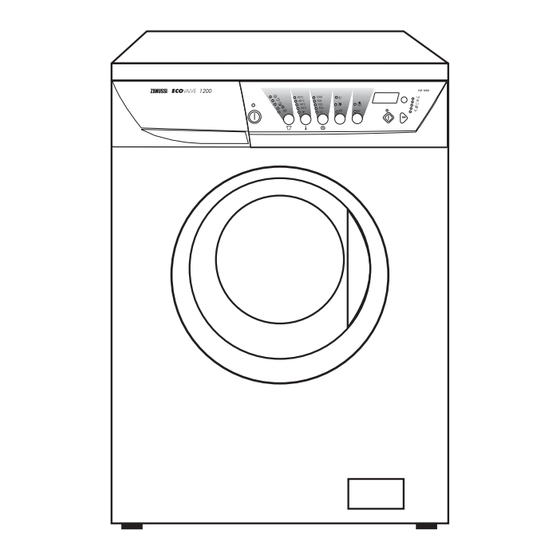

- Page 1 Copertina 132998120 7-06-2004 17:58 Pagina 1 WASHING MACHINE TVÄTTMASKIN PYYKINPESUKONE STIRALWNAÅ MAfiINA FJE 1205 INSTRUCTION BOOKLET BRUKSANVISNING KÄYTTÖOHJE 132988120 RUKOVODSTVO PO ÈKSPLUATACII...
- Page 2 132988120gb.qxd 08/06/2004 08.49 Pagina Dear customer, Transport damages Please read these operating instructions carefully When unpacking the appliance, check that it is not and pay particular attention to the safety notes damaged. If in doubt, do not use it and contact the indicated in the first pages.
- Page 3 132988120gb.qxd 08/06/2004 08.49 Pagina Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation General safety • All internal packing must be removed before using • Repairs to the machine must be carried out only by the appliance.
- Page 4 132988120gb.qxd 08/06/2004 08.49 Pagina Disposal Packaging materials Machine The materials marked with the symbol Use authorised disposal sites for your old appliance. recyclable. Help to keep your country tidy! >PE<=polyethylene >PS<=polystyrene >PP<=polypropylene This means that they can be recycled by disposing of them properly in appropriate collection containers.
- Page 5 132988120gb.qxd 08/06/2004 08.49 Pagina Installation Unpacking Remove the polystyrene base. Set the machine upright and unscrew the remaining rear screw. Slide out the relevant pin. All transit bolts and packing must be removed Fill all the holes with the plastic plugs supplied with the instruction booklet.
- Page 6 132988120gb.qxd 08/06/2004 08.49 Pagina The inlet hose must not be lengthened. If it is too Electrical connection short and you do not wish to move the tap, you will This machine is designed to operate on a 220-230 have to purchase a new, longer hose specially V, single-phase, 50 Hz supply.
- Page 7 132988120gb.qxd 08/06/2004 08.49 Pagina Your new washing machine This new machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. • The automatic cooling of the washing water from 95° to 60°C before draining will prevent old drain pipes from being deformed.
- Page 8 132988120gb.qxd 08/06/2004 08.49 Pagina Control panel 8 9 10 11 12 1 ON/OFF button Position corresponds to cold wash. Important! Press this button to switch the washing machine on. Press the ON/OFF button again to switch the By depressing TEMPERATURE and SPIN machine off.
- Page 9 132988120gb.qxd 08/06/2004 08.49 Pagina The washing time will be reduced according to the can change the spin speed by means of button and type of fabric and the selected temperature. then depress Start/Pause The PREWASH, NIGHT CYCLE and QUICK WASH Important! If you accidentally press the options cannot be selected together.
- Page 10 132988120gb.qxd 08/06/2004 08.49 Pagina While the programme is running (after you have pressed the START/PAUSE button), the displayed time value decreases by one unit every minute. • The washing machine has stopped with water in the tub, at the end of a programme with the RINSE HOLD or NIGHT CYCLE option:...
- Page 11 132988120gb.qxd 08/06/2004 08.49 Pagina You can also press the RESET button to exclude - select the type of fabric by means of button one or several phases of the programme which is select the special programme as previously running, as indicated below. described.
- Page 12 132988120gb.qxd 08/06/2004 08.49 Pagina Laundry weights Washing hints The following weights are indicative: bathrobe 1200 g Sorting the laundry napkin 100 g Follow the wash code symbols on each garment quilt cover 700 g label and the manufacturer’s washing instructions. sheet 500 g Sort the laundry as follows:...
- Page 13 132988120gb.qxd 08/06/2004 08.49 Pagina Ink: depending on the type of ink, moisten the fabric Quantity of detergent to be used first with acetone (*), then with acetic acid; treat any The type and quantity of detergent will depend on residual marks on white fabrics with bleach and then the type of fabric, load size, degree of soiling and rinse thoroughly.
- Page 14 132988120gb.qxd 08/06/2004 08.49 Pagina International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C...
- Page 15 132988120gb.qxd 08/06/2004 08.49 Pagina 4. Switch the machine on Operating sequence Press the ON/OFF button to switch the machine on. The display will show three blinking dashes or a Before washing your first load of laundry, we blinking zero. The light above the button will light up. recommend that you run a cotton cycle at 60°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub.
- Page 16 132988120gb.qxd 08/06/2004 08.49 Pagina 10. Start the programme 7. Select the spin speed or the RINSE Press the START/PAUSE button . The relevant HOLD option light will stop flashing and only the light relevant to Press the SPIN SPEED button repeatedly, in the phase that is in progress will remain lit.
- Page 17 132988120gb.qxd 08/06/2004 08.49 Pagina 13. How to open the door during the Note: when you switch the machine on, if you must erase the previously performed programme, it is also cycle of a programme sufficient to press the FABRIC button and select a You can open the door, after having set the washing new programme.
- Page 18 132988120gb.qxd 08/06/2004 08.49 Pagina Washing programmes Type of Consumption* Programme/ Description of laundry and Available options temperature programme Energy load symbols on Time Water labels litres h/min. Main wash at Cottons 60°-95°C 60°-95°C White cotton: 2.20 5 kg 3 rinses e.g.
- Page 19 132988120gb.qxd 08/06/2004 08.49 Pagina Maintenance 1. Door seal Detergent can also accumulate inside the drawer recess: clean it with an old toothbrush. Refit the Check from time to time the door seal and eliminate drawer after cleaning. eventual possible objects that could be trapped in the fold.
- Page 20 132988120gb.qxd 08/06/2004 08.49 Pagina • Remove any objects from the pump impeller by Emergency emptying out rotating it. If the water is not discharged, proceed as follows to empty out the machine: • pull out the plug from the power socket; •...
- Page 21 132988120gb.qxd 08/06/2004 08.49 Pagina Something not working? Problems which you can resolve yourself. During machine operation it is possible that one of the following alarm codes appears on the display: - E10: problem with the water supply - E20: problem with water draining - E40: door open At the same time the buzzer sounds.
- Page 22 132988120gb.qxd 08/06/2004 08.49 Pagina Problem Possible cause • The door will not open: • The water level is above the bottom edge of the door. • The machine is heating the water. • The drum is turning. • Spinning starts late or the •...
- Page 23 132988120•rus.qxd 7-06-2004 18:02 Pagina 90 From t Made in EEC...
