_ REmOVing THE COnCORD ULTimAX

To make the removal of the CONCORD ULTIMAX easier we recommend you first remove
the seat (a) (see „REMOVING THE SEAT").
Always mount and remove the COnCORD ULTimAX without a child in it!

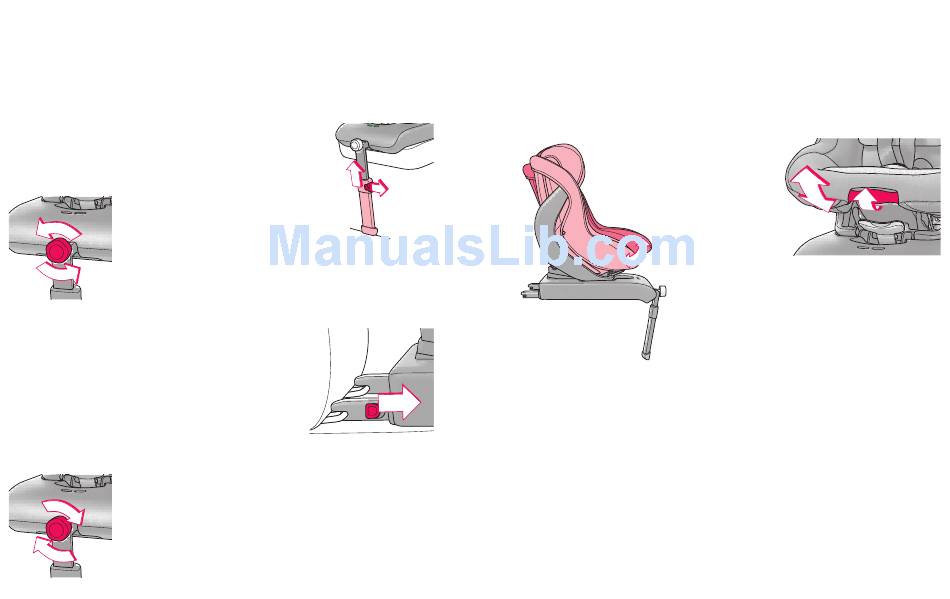

Push the release button (09) outward and move the support
leg (10) into its top-most position.
Turn the ISOFIX SYSTEM (08) control
dial on the front of the CONCORD
ULTIMAX ISOFIX base to the left and
move the base forward.
Pull the ISOFIX SYSTEM unlocking buttons (13) on the left
and right of the base forward, so that the ISOFIX adapters
(15) are loosened from the receptacles and the base
springs forward.
Lift the CONCORD ULTIMAX out of the car seat.
Turn the ISOFIX SYSTEM (08) control dial to the right until the
ISOFIX adapter (15) is fully extended.
32

_ USing THE TiLT ADJUSTmEnT

CAUTION!
• The tilt adjustment is only allowed to be used if the seat is installed in
the driving direction (from 9 - 18 kg).
• The seat is only allowed to be used in a backwards position if it is upright!
Move the tilt adjustment operating lever (05) at
the front of the seat upwards and bring the seat
into the desired position.
By releasing the lever (05) the seat is locked.
