- Page 1 Filtered Water Inonizer CPE-06ALW/B • This product can not be used if the voltage is different from that mentioned in the rating plate. • For your safety and proper use of the product, please read this User’s Manual before use. • Warranty card is included in this User’s Manual.
- Page 2 FEATURES 1. Ambient / ion water filtering system. Filtering is improed with ambient / ion water system with the NF membrane filter. 2. Cold ion water feature You can have cold alkaline water without extra cooling machine. 3. One-touch electronic extraction It protects extraction from external contamination. Extraction of ambient water and alkaline water are separated and one-touch electronic extraction system makes it easy to use. 4. Electrolysis cleaning feature Electrolysis cleaning feature helps to protect and maintain the product healthy.
-
Page 3: Table Of Contents
DEAR CUSTOMERS Filtered Water Inonizer. Thank you for using our Please read this Users’ Manual to use and maintain the product correctly. If you encounter a problem while using the product, you may solve the problem referring to the User’s Manual. As this manual contains the product warranty card, please keep it in a safe place. This system (CPE-06AL) conforms to NSF/ANSI 42 for aesthetic chlorine and NSF/ANSI 53 for VOC as verified and substantiated by test data. See performance data sheet for individual contaminants and reduction performance. CONTENTS FOR INFORMATION HOW TO USE SAFETy iNFORmATiON . . . . . . . . . . . . . . . . . . . 3 iNSTAllATiON PRECAUTiONS . -
Page 4: Safety Information
SAFETy INFORMATION Be careful to keep this safety information. Please read this information to prevent property loss and ensure your safety. If not observed, If not observed, If not observed, slight serious injury or serious injury or injury or property even death could property damage damage could occur. Danger Warning Caution occur. could occur. Electricity safety do not use a damaged do not pull the power power cord or plug, and cord . -
Page 5: Installation Safety
Otherwise, electric shock or fire may occur as a result. Otherwise, electric shock or fire may occur as a result. in the case the power cord is damaged, do not replace the cord yourself . Call Coway Service Center to have it replaced . Otherwise, electric shock or fire may occur as a result. Installation safety do not install near a do not install the heating device . -
Page 6: Operation Safety
SAFETy INFORMATION If not observed, If not observed, If not observed, slight serious injury or serious injury or injury or property even death could property damage damage could occur. Danger Warning Caution occur. could occur. Operation safety When the water is if our product produces a coming inside of the strange noise or odd product or there is a smell, immediately puddle on the product, unplug from the... -
Page 7: Others
Danger Warning Caution Others Clean after unplugging . do not clean by spraying the water directly or Otherwise, electric shock or don’t wipe the product fire may occur as a result. using the benzene and thinner . Otherwise, electric shock or fire may occur as a result. do not repair, do not use filtered water disassemble, or modify . for the water exchange of an aquarium or a Otherwise, electric shock or... -
Page 8: Parts Name

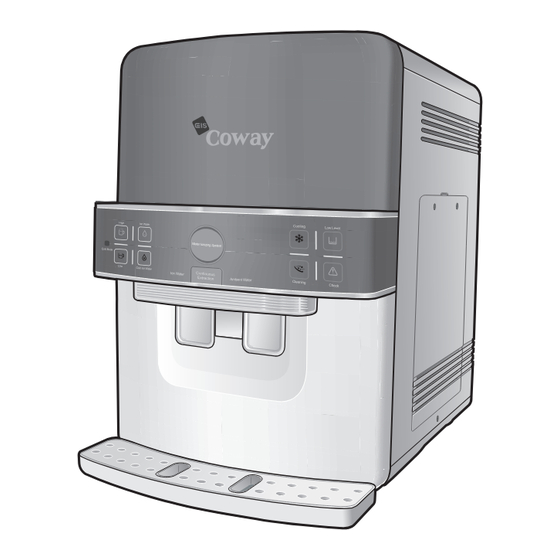

PARTS NAME Front Operation Part Indication Part Continuous Extraction Button Ambient Water Extraction Lever Front Draining Door Ion Water Extraction Lever Rear Top Cover Wire Condenser Power Cord Inlet(Orange) Tubing Outlet(Blue) Tubing... -
Page 9: Water Filtration Process
WATER FILTRATION PROCESS The filter is the core technology of the filtration system. If you don’t use qualifying filter or if you use an old filter that has expired, the system performance may degrade. The 5-step Water Filtering System(CPE-06AL) Step 1 : PlUS SEdimENT FilTER This plus sediment filter has the functions to reduce infusible particles from feed water and to protect membrane and pre-carbon filter from being plugged. Step 2 : PRE-CARbON FilTER This pre-carbon filter has the function to reduce aesthetic chlorine, odor, volatile organic compounds(VOC’s). Step 3 : NF mEmbRANE FilTER Step 4 : iNNO-SENSE FilTER This inno-sense filter has the functions to reduce smell induction material and to improve taste of water. It also has the function to reduce aesthetic chlorine, volatile organic compounds(VOC’s). Step 5 : CERAmiC FilTER PLUS SEDIMENT PRE-CARBON NF MEMBRANE... - Page 10 WATER FILTRATION PROCESS The filter is the core technology of the filtration system. If you don’t use qualifying filter or if you use an old filter that has expired, the system performance may degrade. The 6-step Water Filtering System(CPE-06AL) Step 1 : PlUS SEdimENT FilTER This plus sediment filter has the functions to reduce infusible particles from feed water and to protect membrane and pre-carbon filter from being plugged. Step 2 : PRE-CARbON FilTER This pre-carbon filter has the function to reduce aesthetic chlorine, odor, volatile organic compounds(VOC’s). Step 3 : NF mEmbRANE FilTER Step 4, 5 : FiNE POST-CARbON FilTER This fine post-carbon filter has the functions to reduce smell induction material and to improve taste of water. It also has the function to reduce aesthetic chlorine, volatile organic compounds(VOC’s).
-
Page 11: Installation Precautions
INSTALLATION PRECAUTIONS The summary for the proper installation of the water filtration device 1 . Close main water supply valve to separate the faucet . 2 . Wind the teflon tape on the adaptor and fit it to the pipe . do not turn the water pipe . - Page 12 INSTALLATION PRECAUTIONS Please check before use! This product is for 120 V~ 60 Hz only . P lease connect the power plug to a dedicated grounded electrical outlet for 120 V~ 60 Hz. The water filtration device works normally only when the electricity is connected. • Open the main water supply valve. • The main water must be supplied to operate the water filtration device normally. • After installing the product Get rid of the saved water above the full water in the inner water tank 2 times or more to use. • When the indicator in the indication part is turned off When the indicator in the indication part is turned off, check if the power supply was stopped due to the power failure or other cause. • Regularly filter replacement It is important to replace the filter regularly to drink the pure water. If the filter is overused beyond its service life, the performance of the water filtration device deteriorate, Do not miss the filter replacement cycle. • When you didn’t use for a long time If you saved the water for a long time or you didn’t use, drain the water inside of the water filtration device completely and remove the newly filtered water one time to use. • When you don’t want to use for a long time Close the main water supply valve and unplug.
-
Page 13: Operation / Indication Part
OPERATION / INDICATION PART Indication part/Operation part Indication Part Operation Part Cooling mode Ion water Strong alkaline selection button button water button Weak alkaline Power Cooling Cleaning water button indicator indicator indicator Cold ion Continuous Low level Check water button extraction button indicator indicator Power indicator Cooling indicator If you connect the power, When selecting cooling mode, the indicator is turned on. the indicator is turned on. The indicator blinks during When cooling is complete, the Continuous Extraction... - Page 14 OPERATION / INDICATION PART Operation part Cooling mode ion water button selection button Press this button to extract ionized water. If you press Press this button to select or this button, the button is deselect cooling mode. This turned on. button is turned on when cooling mode is selected. Strong alkaline water Weak alkaline water button button Press this button to extract Press this button to extract strong alkaline water. If you weak alkaline water. If you press this button, the button press this button, the button is turned on. is turned on. Cold ion water button Continuous Continuous extraction button...
- Page 15 To use the cold water function Press the cold mode button and confirm that the cold mode button is turned on. If you want to turn off cold mode, press and hold the button for about 3 seconds or more. Y ou can drink cold ion water in about two hours after turning the cold mode. ▶ If no key is pressed for 1 minute after ionized water has been extracted. Electrolysis vessel cleaning function The auto electrolysis vessel cleaning function is provided to keep the vessel clean and protect the product. During electrolysis vessel cleaning, the cleaning indicator is turned on. 1 I f no ionized water is extracted 1 minute after ionized water is extracted, the vessel is cleaned automatically. 2 I f the stop period exceeds 7 hours after water is ▶ extracted, the vessel is cleaned automatically. If the stop period exceeds 7 hours after water 3 I f about 30 minutes has passed after the power is has been extracted. turned on and then cool mode is turned on, the vessel is cleaned automatically ▶...
-
Page 16: How To Use
HOW TO USE To drink cold ion water Push high or low alkaline button. Then push cold ion water button. You can have cold ion water by push extraction lever of cold ion water. Safety interruption feature: extraction stops automatically after 1 minute continuous extraction. Tips If low level lamp is on, cold lon water is not extracted. Ion water and cold ion water button is canceled automatically 10 seconds after extraction. According to environment or user’s drinking habit, the first cup maybe not cold enough. but it is not product break down. However, you can have cold water from second cup. To drink ion water Choose high or low alkaline button. Then push ion water button. You can have ion water by push extraction lever of ion water. Safety interruption feature: extraction stops automatically after 1 minute continuous extraction. Tips If low level lamp is on, cold lon water is not extracted. Ion water and cold ion water button is canceled automatically 10 seconds after extraction. To drink ambient water You can have ambient water by push ambient water lever. Safety interruption feature : if pushing the lever for 2 minutes continuously, extraction stops automatically. Tips... -
Page 17: To Extract Continuosly
To extract continuosly ▶ To extract ionized water continuously To extract ionized water continuously, press the strong or weak alkaline button. Press the Ion water or cold mode button.(Make sure to confirm that the required ion water selection button is turned on.) If you press and hold the continuous extraction button for about 2 seconds, you can receive the selected ion water for about 1 minute. When extracting water continuously, check if the ion water and cold mode buttons are turned off. (If you press a button that has been turned on again, the button is turned off.) If you press and hold the continuous extraction button for about 2 seconds, you can receive water for about 2 minutes ▶ To extract filtrated water continuously and 30 seconds. One more push on continuous extraction button stops continuous extraction. Tips Ion water and cold ion water button is automatically canceled after 10 seconds. - W hen the low water level indicator is turned on, the ion or cold ion water is not extracted. Continuous Continuous Button status Lamp status extraction extraction botton... -
Page 18: Installation
INSTALLATION Follow the instruction for installation Main water supply valve Cooling stopper 120 V~ 60 Hz Only Connect the orange color inlet tubing to the tap water supplying pipe. Connecting the outlet tubing Inlet tubing (Orange) Outlet tubing(Blue) - Page 19 After installing the water filtration system Filtered water: F ill the water tank with the filtrated water and remove the water twice or more if necessary after installing it. Ion water: F ill the water tank with the ionized water and remove the water twice or more if necessary after installing it. Removing moisture: R emove moisture and dust from the operating, display and connecting parts of the front cover. Cold water plumbing Cold water plumbing Please connect to the cold water pipe necessarily. (If you connect to the warm water pipe, the filter can be damaged.) movement and installation When the position is moved, connect the power cord when 30 minutes passes after installing. To maintain optimal product performance, consult a Coway engineer for the detailed installation methods. There may be some water remaining inside of the filter which was used to test the product during inspection process at the factory. Tips Please feel at easy and use as it isn’t the used product. Don’t reuse the main water supply valve and hose that was previously used when you install the product.
-
Page 20: Cleaning Method
CLEANING METHOD Storage tank 1 . Turn it off by pressing the cold mode button at the front panel of the product for about 3 seconds and unplug the power cord . Close the main water supply valve . Take care that water does not enter the product other than through the water hose. - Page 21 4 . Separate the ceramic filter from the bottom of the cover of the internal water tank and use the stored water to clean it . 5 . Please wipe the surface of the storage tank with a soft cloth . 6 .
-
Page 22: Gutter
CLEANING METHOD 8 . Close the top cover, plug in the power cord and open the water supply valve . Close the storage tank cover completely. A worm or a foreign body can be entered. When you clean the storage tank, don’t use the medicine or the detergent. If you don’t clean the medicine or the detergent cleanly, it can be Tips harmful to the body. - Keep the surroundings cleanly and clean the storage tank once per two months. Gutter 1 . Gutter separation method The gutter can be separated easily with lifting up the front part of the gutter and taking out. 2 . Gutter assembling methods Clean the gutter and then insert it into the groove at the bottom of the front of the product slightly to install it.. -
Page 23: Filter Replacement
FILTER REPLACEMENT Filter The life of the water filtration system is the filter. It it isn’t the legitimated filter or you use too long even if it is the legitimated filter, the filter performance can be lowered. Please change to the legitimated filter according to the replacement cycle. Filter replacement cycle If the filter is not regularly replaced, it may degrade the water quality from the product. The filter replacement cycle depending on the main water quality can be shortened rater than the expected replacement cycle. The period for the filter exchange is made based on 10 L use in a day for house use(4 people based) and 20 L use for business. CPE-06Al Part No. Names of Filter Usable Period WJSF11-PLUS Plus sediment fiter 6 months WJCF8-PRE Pre-carbon filter 12 months WJMF11-NF NF membrane filter 12 months WJIF11-S Inno-sense filter 18 months /WJFCF11-POST / Fine post-carbon filter WJCC-02 Ceramic filter 12 months... -
Page 24: Filter Replacement Method
FILTER REPLACEMENT METHOD 1 . Close the main water supply valve after unplugging the power cord and drain the water inside of the internal water tank of the water filtration device (see p19) . 2 . Open the top cover and loosen the fixing screw at the top of the product . Open the front cover and disconnect the connected cable completely . - Page 25 3 . After separating the fitting connected to the filter to replace, please replace the filter .(Separate the fitting using the proper tool .) By changing the filter and connecting the fitting and the hose precisely, check that there is no leakage and drain the first filtered water necessarily. Tips 4 . Connect all the cables and close the front cover making sure to align the groove .
-
Page 26: Troubleshooting
TROUBLESHOOTING The water filtration device may operate abnormally due to minor causes not because of the product malfunction but because of the fact that the user is not familiar with the product use. In such a case, problems can be solved easily even without the help from the Service Center by checking the following items. If you can’t solve the problem after checking the following items, please call the Service Center. Symptom Check Measures to take • Did you clean the internal water tank? Clean the internal water tank. Get rid of the saved water and clean the internal water tank. The water tastes odd. •You didn’t use it for a long time. Use ionized water only after extracting and disposing of the water more than twice in ionized water mode. •Is it time to change the filter? Request a filter replacement. •The water is flowing slower. Request a filter replacement. Check if the power cord is plugged into a •Is the power connected? 120 V~ 60 Hz outlet. The water is flowing slower. • D id you close the main water supply valve? Open the main water supply valve. • D id the temperature of the main water drop The amount of filtrated water decreases as suddenly? the temperature of the water drops. Press the Cold Mode button so that it is •Is the Cold Mode button turned on? turned on. - Page 27 Symptom Check Measures to take • D o you live in an area where the water The pH is subject to the region and the hardness is high? quality of water. Keep the height of the domestic water The pH level is • I s the height of the domestic water outlet outlet hose equal to or lower than 25 cm incorrect. hose too high? from the bottom of the product. In this case, please contact the After- • Is the amount of draining water small? Service Center. • Is the water being supplied actively? Check the water supply valve. Check if the power cord is plugged into a • Is the power connected? 120V~ 60Hz outlet. All operations were stopped suddenly In this case, please contact the After- while operating. • Is water overflowing or leaking? Service Center. • I n this case, please contact the After- The amount of filtrated water decreases as Service Center. the temperature of the water drops. • D id the water flow out of the internal Open the top cover to check where the water tank cover or from the inside of the...
-
Page 28: Specification
SPECIFICATION Product The Filtered Water Inonizer Product The Filtered Water Ionizer Model CPE-06ALW/B 120 V~ 60 Hz Standard power voltage Extraction type Separate filtrated/ion water extraction type, electronic extraction type Cleaning indicator, check indicator, low water level indicator, cooling indicator, ion water level display, Ion and cold Ion water display, ion/ Display part contents filtrated water extraction display, cooling mode selection display, and continuous extraction display An ion and cold ion water generation function and a water filtration Major functions function Filtered water Water tank Cold water capacity Total Electrode type/quantity 5 white gold-plated titanium electrodes Electrolysis vessel Electrode specification 62 mm X 110 mm (0.5 t) Dimension 350 mm(W) X 510 mm(D) X 511mm(H) Working Temperature 5 °C - 35 °C Production rate (on the basis of the amount of water of the internal water 151 L/d (25 °C, 138 kPa) -
Page 29: Water Flow Diagram
WATER FLOW DIAGRAM CPE-06Al • An fine post-carbon filter may be installed instead of a inno-sense filter . For the precise specifications of your product, refer to the data plate on the product. -
Page 30: Performance Data Sheet
FINE POST-CARBON 280 gallons (for VOC) FILTER 1,179 gallons (for Aesthetic Chlorine) Min-Max operating pressure: 20 ~ 120 psi (1.4 ~ 8.4 kgf/cm Min-Max feed water temperature: 41 ~ 95 ºF (5 ~ 35 ºC) 0.07 GPM (for VOC) Rated Service Flow 0.5 GPM (for Aesthetic Chlorine) Electrical Requirements: 120 Vac / 60Hz • Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. • Refer to the owners manual for specific installation instructions, manufacturer’s limited warranty, user responsibility, and parts and service availability. • For parts and service availability, please contact your local dealer or Coway. • The product water should be tested every 6 months to ensure that the contaminants are being reduced effectively. Please contact your local dealer or Coway to initiate this service. • The estimated replacement time of filter, which is a consumable part, is not an indication of quality guarantee period, but it means the ideal time of filter replacement. Accordingly, the estimated time of filter replacement may be shortened in case it is used in an area of poor water quality. Model of Filter Type Usable period (months) COST US $ WJSF11-PLUS PLUS SEDIMENT FILTER 7.84 WJCF8-PRE PRE-CARBON FILTER 7.40 WJMF11-NF NF MEMBRANE FILTER 30.00... - Page 31 1,1,2-trichloroethane 0.005 0.150 > 99 0.0005 trichloroethylene 0.005 0.180 > 99 0.0010 trihalomethanes (includes): chloroform (surrogate chemical) bromoform bromodichloromethane 0.080 0.300 0.01 chlorodibromomethane xylenes (total) 0.070 > 99 0.001 1. These harmonized values were agreed upon by representatives of USEPA and Health Canada for the purpose of evaluating products to the requirements of this Standard. 2. Influent challenge levels are average influent concentrations determined in surrogate qualification testing. 3. Maximum product water level was not observed but was set at the detection limit of the analysis. 4. maximum product water level is set at a value determined in surrogate qualification testing. 5. Chemical reduction percent and maximum product water level calculated at chloroform 95% breakthrough point as determined in surrogate qualification testing. 6. The surrogate test results for heptachlor epoxide demonstrated a 98% reduction. These data were used to calculate an upper occurrence concentration which would produce a maximum product water level at the MCL. Woongjin Coway.,Ltd. 658, Yugu-Ri, Yugu Eub, Gongju-Si, Choongchungnam-Do, Korea Tel.: 82-41-850-7879 Fax.: 82-41-841-7816...
- Page 32 State of California Department of Public Health Water Treatment device Certificate Number 08-1929 Date Issued: June 20, 2008 Trademark/model designation Replacement Element(s) Woongjin Coway Co. LTD Wellion CPE-06AL WJSF11-PLUS WJCF8-PRE WJMF11-NF WJIF11-S WJCC-02 Manufacturer: Woongjin Coway Co LTD The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section 116830 of the Health and Safety Code for the following health related contaminants: microbiological Contaminants and Turbidity inorganic/Radiological Contaminants None None Organic Contaminants VOCs Alachlor Endrin Simazine Atrazine Ethylbenzene Styrene Benzene...
- Page 33 MEMO...
-
Page 34: Warranty Card
WARRANTy CARd OR WARRANTy lETTER ONE yEAR limiTEd WARRANTy WATER FiRTRATiON dEViCE CPE-06AlW/b (“PROdUCT”) Model: Serial Number: Customer Name: (“OWNER”) Date of Purchase: What This Warranty Covers: Limitations and Exclusions: Commencing with the date of purchase of the TO THE EXTENT PERMITTED BY APPLICABLE LAW, Product and continuing for a period of one year, COWAY DISCLAIMS ANY OTHER WARRANTY if manufacturing defects in the Product cause the EXPRESS OR IMPLIED, THAN THAT PROVIDED Product to not operate properly for its intended FOR HEREIN. THIS WARRANTY IS IN LIEU OF AND use, then subject to the exclusions, conditions, and EXCLUDES ALL OTHER WARRANTIES, GUARANTEES,... - Page 35 Warranty is conditioned upon the following : If the Product fails to operate for its intended purpose, then notify Coway or its a) The defect or damage is not caused Representative Agency within 48 hours or by or is the result of : abnormal use or within the next business day after discovery conditions; improper storage, unauthorized of any defect in the Product. The OWNER must modifications or repair; misuse, neglect, give written notice to COWAY no later than accident, alteration, improper installation or thirty (30) days after a defect is discovered or other acts that are not the fault of Coway or should by reasonable diligence have been the manufacturer of the product or that are discovered. Claims under this Warranty will not covered by the manufacturer’s warranty; require proof of purchase by the OWNER. b) The Product has not been altered, modified or repaired without prior written approval of COWAY; c) The OWNER has notified COWAY in writing of any failure of the Product covered by this Warranty within thirty (30) days following such failure; d) There has been no misuse, abuse or negligence with respect to the Product on the part of the OWNER. Add : WOONGJIN COWAY USA, INC. 695 SOUTH VERMONT, STE. 110(SOUTH TOWER) LOS ANGELES, CA 90005, USA Call center. : (213) 386-9900 / (213) 480-1600 Fax. : (213) 386-3990...
- Page 36 MADE IN KOREA 1005760...
