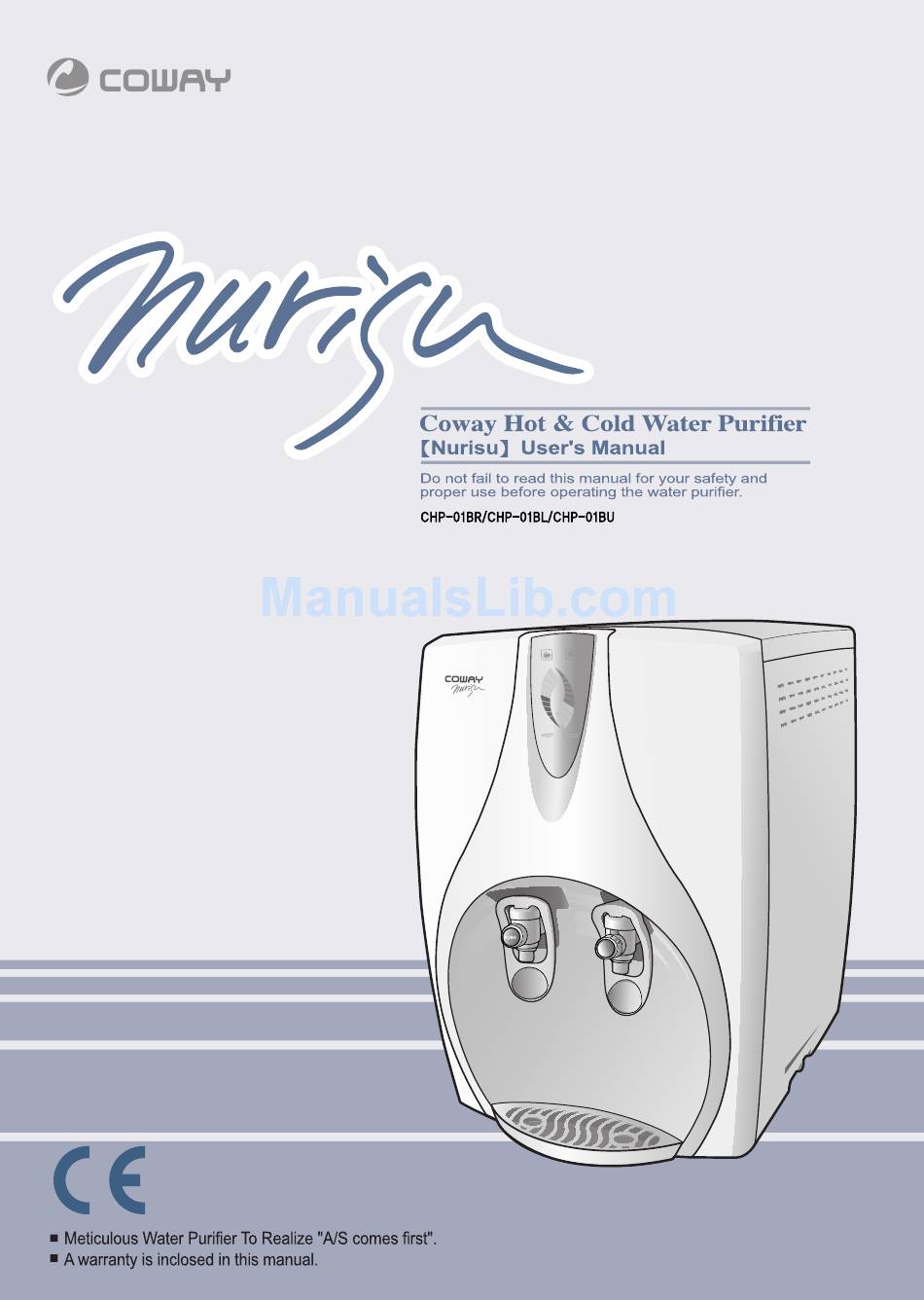

Summary of Contents for Coway Nurisu CHP-01BR
-
Page 2: Table Of Contents
DEAR COWAY’S CUSTOMERS First of all, we would like to thank you very much for purchasing this water purifier by Coway. This product is superior to the ones in function in the past, and we believe that it will provide you with cleaner and healthier water. -
Page 3: Important Safety Information
01/02 IMPORTANT SAFETY INFORMATION Read All Instructions Before Using. WARNING For your safety, the information in this manual must be followed to minimize the risk of property damage or personal injury. Electricity Safety ● Only connect the power cord to voltage rating that matches it on the rating plate to avoid danger such as electric shock or fire. -
Page 4: Installation And Use Safety
WARNING Do not use with water that is microbiologically unsafe or unknown quality. Installation and Safe Use ● Keep the water purifier out of direct sunlight. The sun’s heat may distort non-metallic part and may damage the electronics. ● Do not install the water purifier where it could freeze. - Page 5 03/04 ● Only connect the water purifier to cold water pipe. Do not run hot water over 40 through it. It will defect the filters ℃ of the water purifier. ● Periodical filter replacement is prerequisite for getting clean water. In case filter are overused, the performance of filters is deteriorated.
-
Page 6: Features Of Nurisu
HOT & COLD WATER PURIFIER Micom Control System It is easy to use as it is automatically controlled by Micom. Boost Pump for Pressurizing Supplying Water(CHP-01BR) Superior purified-water quality is guaranteed even in the low water pressure area by pressurizing supplying water. - Page 7 05/06 Detachable and Attachable Waterspout The waterspout can be easily attached or detached. Function of Protecting Overheating and Overcooling As a heating or cooling function does not work when the storage tank is not properly filled with purified water, it prevents damage to be caused by overheating and overcooling of hot/cold water tank.
-
Page 8: Names Of Each Component
NAMES OF EACH COMPONENT/ INDICATION PARTS/ OPERATION PARTS Front ● � Indication Part Changeover Faucet of � Cold/Purified Water ● ● � Hot Water Safety Faucet ● � Cup-Touch Lever � Waterspout ● Rear � Power Cord ● � Radiator ●... -
Page 9: Indication Parts
07/08 Indication Parts � Indication Lamp of Overheating When the temperature of hot water is over the setting temperature(95 ), the lamp is flickering and the thermostat ℃ cuts off the power of heater. As the temperature of hot water ●... -
Page 10: Operation Method
OPERATION METHOD WARNING After installation the power supply cord and plug shall be accessible. Note: The cold and hot water you drink are made of the purified water. Therefore, you do not need to care the quality of them. Connection to the Power Connect it to voltage rating that matches it on the rating plate. - Page 11 09/10 When Cold/Purified Water Is Used � Turn on the cold water selection switch and make sure that the indication lamp of cold water in the indication part is turned on. � Turn the cold/purified changeover faucet to the C.W or C.C.W as you wish to drink water and push the cold/purified switch faucet lever.
-
Page 12: Cleaning Method
CLEANING METHOD CAUTION !! Keep the surrounding environment neat all the time and clean the inside of the tank once a month. Use of Waterspout In case the waterspout is separated. It is easily separated if you take it out while lifting it slightly upward. In case the waterspout is installed to the... - Page 13 11/12 Cleaning the Storage Tank � � Drain all the water in the storage tank by using the Pull out the power cord from the wall outlet drain hose. Then, keep it on a water reservoir. � � Wipe the inside of the storage tank with a soft Open the upper cover of the product and open cloth soaked with a edible detergent.
-
Page 14: About Coway's Reverse Osmosis System
OSMOSIS SYSTEM How does Coway’s Water Purifier Filter Out Wastes? The osmotic membrane phenomenon has been applied to Coway water purifier, where a TFC membrane with pores that measure 0.001 (1/1,000,000 of a stand of hair)is used to purify water. -
Page 15: Water Purifier Process
13/14 Water Purifier Process CHP-01BR/CHP-01BL Plus-Sediment Filter Membrane Filter Pre-Carbon Filter Post-Carbon Filter Disposed Water CHP-01BU Plus-Sediment Filter Post-Carbon Filter Pre-Carbon Filter UF Membrane Filter WARNING Use of Disposed Water It shall be used for cleaning a toilet, cleaning a house, doing the dishes, doing the washing, and as water for sundry uses. -
Page 16: Before Asking For Service
Replace the filter. Is it the time to replace the filter? Check if the power cord is The amount of the Is it connected to the power? plugged in.(CHP-01BR) purified water has suddenly increased(decreas Haven’t you closed the supplying Check the supplying water ed). - Page 17 15/16 Trouble Check-up Troubleshooting Is there the suspension of water No water supply or the supplying water valve Open the supplying water valve. comes out. closed? It looks that the drain faucet out of Ask for A/S service. order. Have you missed the time of filter Replace the filter.
-
Page 18: Waterflow Diagram
WATERFLOW DIAGRAM CHP-01BR NOTE Exclude boost pump, LPS, and check fitting on CHP-01BL CHP-01BU... -
Page 19: Warranty Information
FAX : ☞ In case any other filters or parts which are not genuine product of Coway are used. Coway is not responsible for any problems related to water quality. Coway Co., Ltd 658 Yoogoo-Ri, Yoogoo-Eub, Gongju-Si, Choongnam Province, Korea...
