Behringer Ultra Fuzz UZ400 User Manual

ULTRA FUZZ UZ400
Classic Fuzz Distortion Effects Pedal
Thank you for showing your confidence in us by purchasing the BEHRINGER ULTRA FUZZ UZ400.
This effects pedal is ideally suited for electric guitars and recreates the classic and burning fuzz tone
of the '60s and '70s.

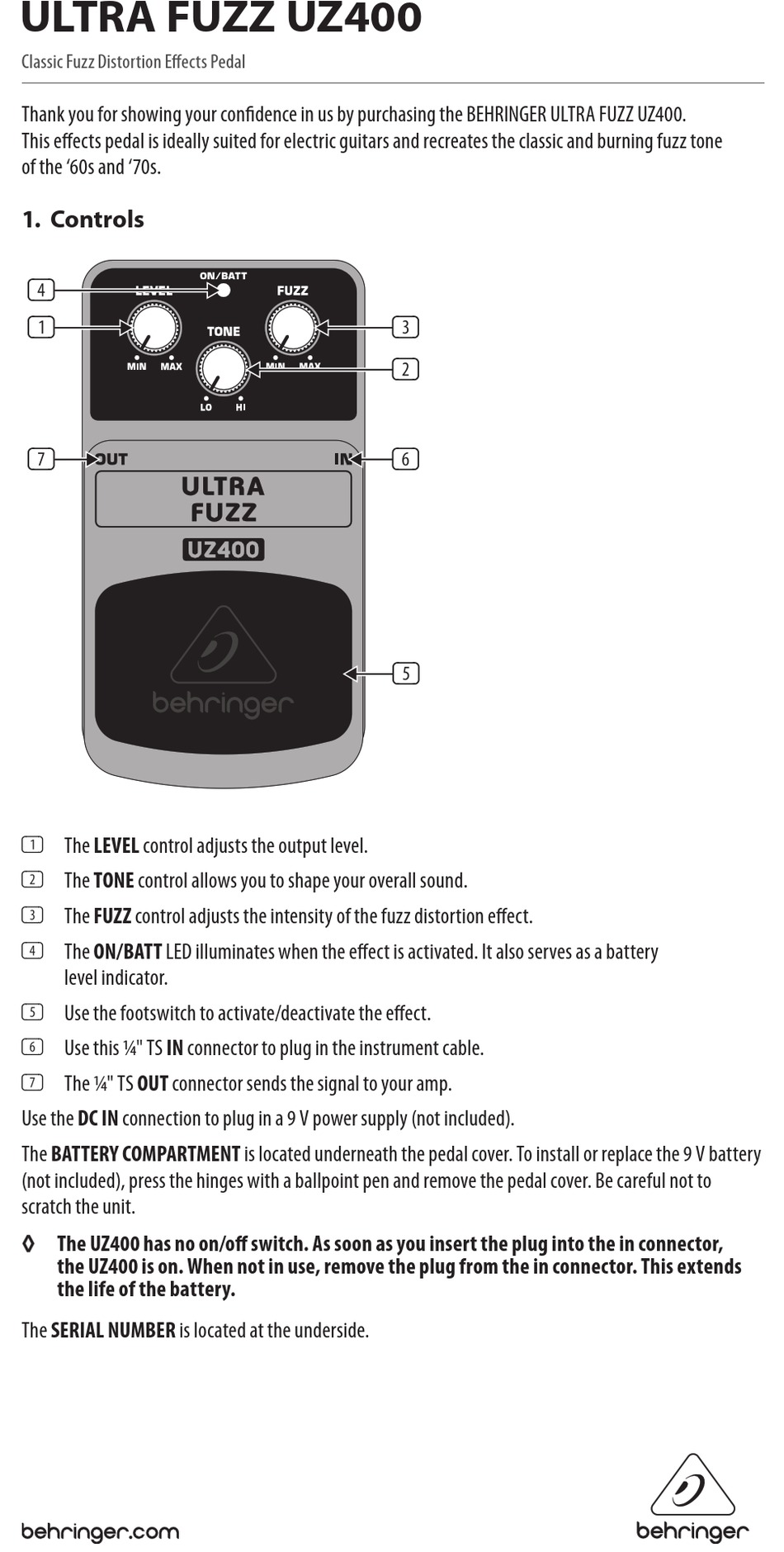

1. Controls
(4)
(1)
(7)
(1) The LEVEL control adjusts the output level.
(2) The TONE control allows you to shape your overall sound.
(3) The FUZZ control adjusts the intensity of the fuzz distortion effect.
(4) The ON/BATT LED illuminates when the effect is activated. It also serves as a battery
level indicator.
(5) Use the footswitch to activate/deactivate the effect.
(6) Use this 1/4" TS IN connector to plug in the instrument cable.
(7) The 1/4" TS OUT connector sends the signal to your amp.
Use the DC IN connection to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery
(not included), press the hinges with a ballpoint pen and remove the pedal cover. Be careful not to
scratch the unit.
◊
The UZ400 has no on/off switch. As soon as you insert the plug into the in connector,
the UZ400 is on. When not in use, remove the plug from the in connector. This extends
the life of the battery.
The SERIAL NUMBER is located at the underside.
(3)
(2)
(6)
(5)
