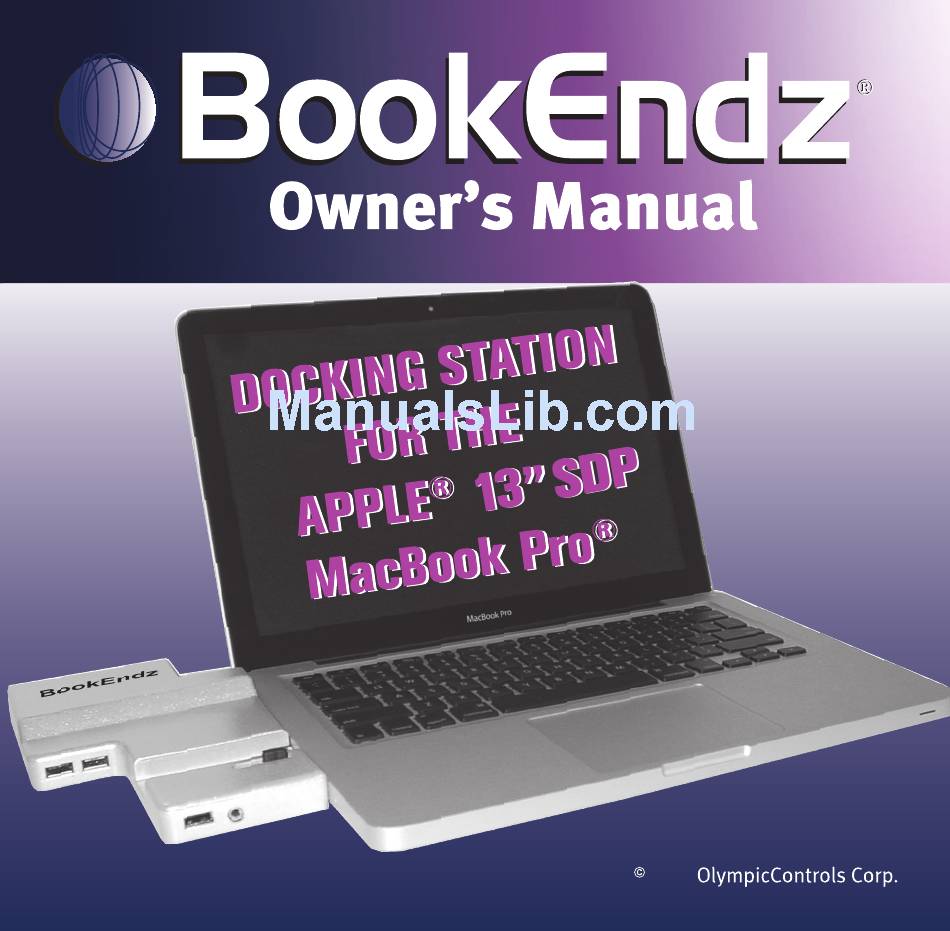

- Page 1 2009...
- Page 2 THANK YOU ® Thank you for purchasing the BookEndz Dock for ® your MacBook Pro Computer. The purpose of ® the BookEndz Dock is to eliminate the hassles, headaches, wear & tear, and delays that arise from having to plug in all of your peripheral cables each time you want to use them.
- Page 3 TABLE OF CONTENTS ® Installing Your New BookEndz Dock ® 13” MacBook Pro - Features & Ports ® BookEndz Dock - Features & Connectors Top View ® BookEndz Dock - Features & Ports Front View / Rear View Limited Warranty...
- Page 4 ® INSTALLING YOUR NEW BookEndz DOCK 1. Place the BookEndz Dock on the fl at surface on which it will be used and plug all of your external devices into the BookEndz Docking Station (video monitor, network, modem, etc.). 2. Shut down the MacBook Pro and close the LCD screen.
- Page 5 THE 13” MacBook Pro w/SD Slot FEATURES & PORTS Your 13” MacBook Pro has eight side panel ports and features as shown: 1. MagSafe Power 4. Mini Display Port 2. Gigabit Ethernet 5. USB 2.0 3. Firewire 800 6. SD Slot 7.
- Page 6 ® BookEndz DOCK FEATURES & CONNECTORS w/SD Slot Top View The connectors shown below mate with those on your MacBook Pro and allow you to easily dock and undock with your external devices. 1. Audio In/Out Firewire 800 2. USB 2.0 Gigabit Ethernet 3.
- Page 7 BookEndz DOCK FEATURES & PORTS Plug all of your peripherals into the ports shown below on the rear of your BookEndz Dock. Be sure all peripherals are turned off prior to connecting them to your BookEndz Dock. Side View 1. Start USB Power* Rear View Stacked USB 2.0...
-
Page 8: Limited Warranty
No waiver or modifi cation of the Warranty or any of its terms shall bind OlympicControls Corp. unless in writing and signed by an offi cer of OlympicControls Corp. ® Apple and MacBook Pro are registered trademarks of Apple Computer Inc. BookEndz is a registered trademark of OlympicControls Corp. All other product names are trademarks or registered trademarks of their respective holders. - Page 9 BookEndz Product Registration Mrs. First Name Last Name Company Address City State Zip Code Telephone Number Fax Number Email Address Where Purchased Purchase Date Model Number Serial Number Please Fax to 1-847-742-5686 sales@bookendzdocks.com Or email...
- Page 12 Pub. No. BE-10359...
