Summary of Contents for ZANKER ZKM 3084 KX

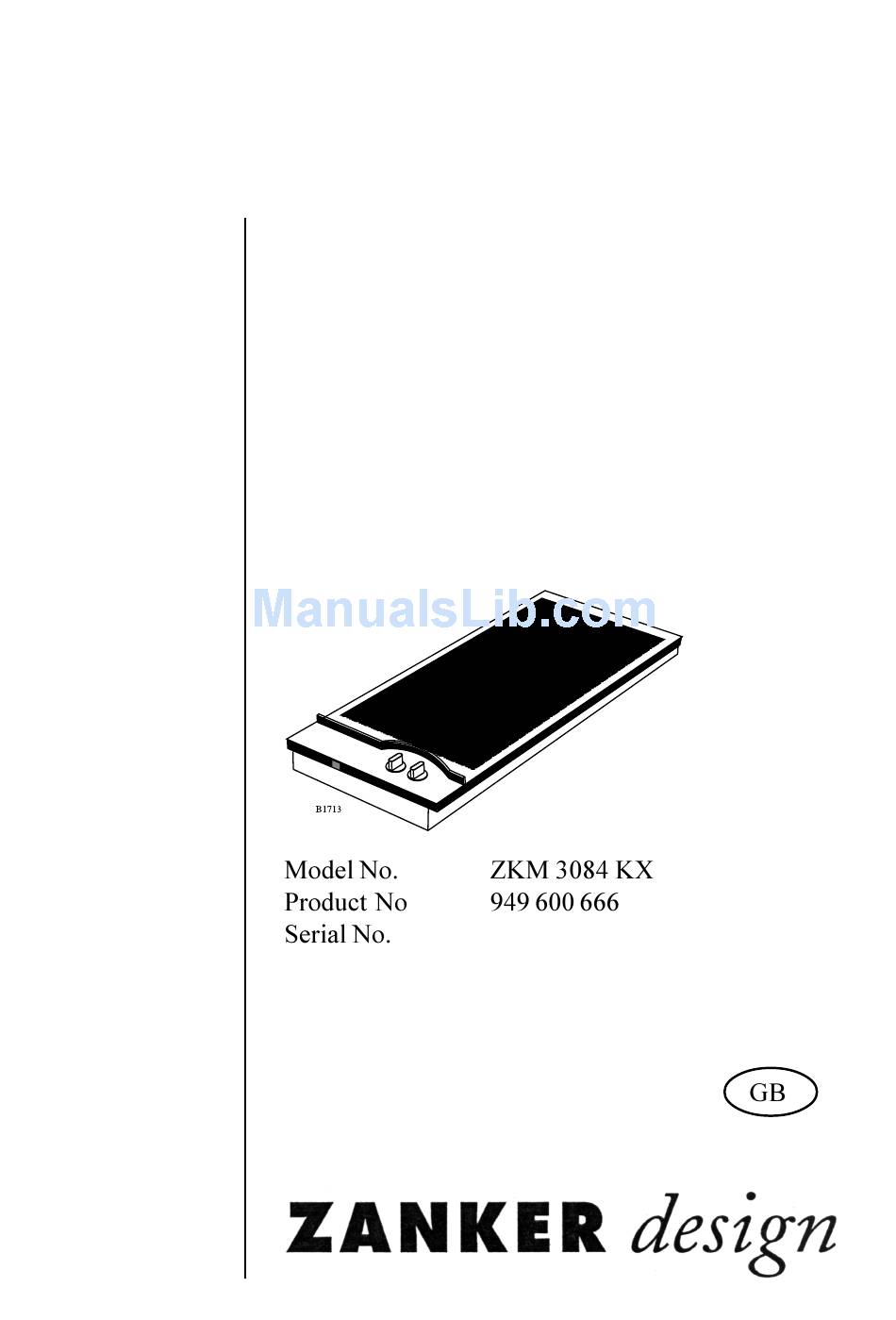

  • Page 1 325 88-2983 Rev. 1-007...

  • Page 3: Product Liability

    For hygienic and safety reasons the Service and repair may only be performed by the distributor, or by a unit must be kept clean. Grease, oil service organization approved by the and food spills create unpleassant odours when burnt, and can in some distributor.

  • Page 4: Field Of Application

    The safety precautions set forth in this Positioning pamphlet have not been adhered to. It is advisable to place the unit near an out-of-the-way, or closed corner, with The unit has been repaired by a party space on either side on which to rest hot other than our authorized service cooking utensils.

  • Page 5: Before Use

    Before use Before using the hob unit, it is advised to clean the ceramic surface. Use a clean, damp cloth or tissue. Dry with a clean cloth.
  • Page 6 Operating instructions - Grill Grill control knob Variable grill temperature "1" is low heat "12" is high heat Grill is turned off Operating instructions - Minute Timer Turn control knob to set desired number of minutes - maximum 30. The timer has no electric connection with the grill element and can just be used independetly of it.
  • Page 7 For reasons of hygiene and safety, the cooking zones must be kept clean. Grease stains and spilled food generate smoke when heated, and can even cause fire. Taking off the panel You can take the panel off, which makes it easier to clean the surface. What to do: 1.
  • Page 8 The glass grill requires cleaning every time it is used. Pour a bit of water containing liquid AJAX, washing-up liquid or similar detergent onto the glass surface while it is still hot or turn the grill element on for a short while. Leave the water to boil up and clean using a washing-up brush, wiping clean with a clean cloth or a bit of...
  • Page 9 Your glass ceramic hob is durable both hot and cold and can take heavy loads. However, as is the case with other hardened glass materials, spot loads may damage the hob, for instance if the salt mill falls down from the herb shelf and hits it in an unfortunate way.

  • Page 10: Using The Grill

    However, the glass grill offers other Using the grill options. The hot glass plate really does The figures 1-12 are grilling justice to a large, oblong fish pan. The temperature settings. The temperature glass grill is also the ideal heating increases from 1 to 11 with automatic plate for pans and dishes.
  • Page 12 The hob unit can be mounted in any type of kitchen with a table surface whose thickness is between 28 mm and 40 mm. Clearance The distance between the top side of the tabletop and the carpentry underneath must be at least 45 mm. Fixing Screw the fixing brackets out to such an extent that they can be turned in under...
  • Page 13 The unit´s externally measured length 145 mm: Cooker hood 290 mm: Two-burner standard electric hob Two-burner ceramic-top electric hob Two-burner gas hob Grill 580 mm: Four-burner standard electric hob Four-burner ceramic-top electric hob Four-burner gas hob Installation of a single unit When mounting a single unit, be it a half-or full size unit, in a table surface which is thicker than 30 mm, it is...
  • Page 14 The electricial installation may only be performed by an authorised fully trained electrician. The electrical installation must be carried out in accordance with prevailing regulations for appliances using heavy current. The installation must comply with any specific requirements specified by the local electricity supply authority.

  • Page 15: Before Calling Service - Technical Advice

    Before calling service - Technical advice Problems Redmedy Grill not working? Check earth leak circuit breaker and fuses. Fuses constantly blowing? Too many electric bulbs may be in use at the same time.

  • Page 16: Warranty

    Warranty This unit is warranteed against defects in materials and workmanship, when used as intended, for a period af one year from the date of purchase. The warranty covers both parts and service, and necessary transprotation costs as well. Keep your proof-of-purchase receipt.
