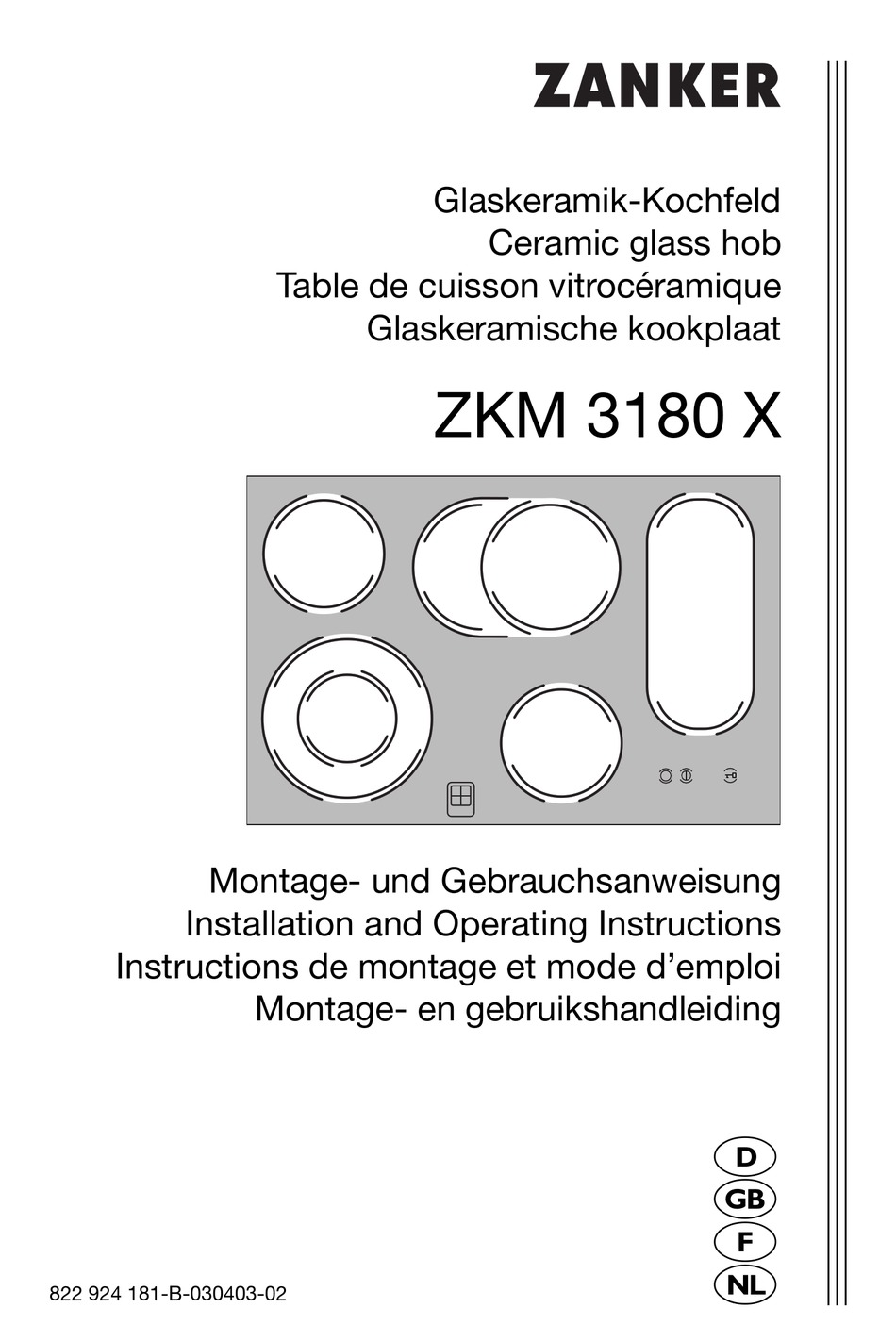

- Page 1 Glaskeramik-Kochfeld Ceramic glass hob Table de cuisson vitrocéramique Glaskeramische kookplaat ZKM 3180 X Montage- und Gebrauchsanweisung Installation and Operating Instructions Instructions de montage et mode d’emploi Montage- en gebruikshandleiding 822 924 181-B-030403-02...
-
Page 2: Dear Customer
Dear customer, Please read these operating instructions carefully. Pay particular attention to the section “Safety information” on the first few pages. Please retain these operating instructions for later reference. Pass them on to possible new owners of the appliance. The following symbols are used in the text: Safety instructions Warning: Information concerning your personal safety. -
Page 3: Table Of Contents
Contents Safety ............Disposal . -
Page 4: Safety
Operating Instructions Safety The safety aspects of this appliance comply with accepted technical stand- ards and the German Appliance Safety Law. However, as manufacturers we also believe it is our responsibility to familiarise you with the following safety instructions. Electrical Safety •... -
Page 5: Safety When Cleaning
Safety When Cleaning • For safety reasons do not clean the appliance with a steam jet or high pressure cleaner. • Clean the hob in accordance with the maintenance and cleaning instruc- tions in this manual. To Avoid Damaging Your Appliance •... -
Page 6: Disposal
Disposal Disposing of the packaging material All materials used can be fully recycled. Plastics are marked as follows: • >PE< for polyethylene, as used for the outer wrapping and the bags in- side. • >PS< for polystyrene foam, e.g., as used for the padding materials. They are completely free of CFCs. -
Page 7: The Key Features Of Your Appliance
The Key Features of Your Appliance • Ceramic glass cooking surface: The appliance has a ceramic glass cooking surface and 4 rapid response cooking zones. The particularly powerful radiant heater elements significantly shorten the amount of time taken for the zones to heat up. •... -
Page 8: Description Of The Appliance
Description of the Appliance Cooking surface layout Single ring cooking zone Casserole zone Warming zone 1200W 2200W 1200W “Activate” Double ring cooking Warming zone warming zone zone 2100W “Off” Residual heat display Warming zone Single ring cooking “On” zone 1200W... -
Page 9: Before Using For The First Time
Before Using for the First Time Initial Cleaning Wipe the ceramic glass surface with a damp cloth. Important: Do not use any caustic, abrasive cleaners! The surface could be damaged. Operating the Hob When a cooking zone is switched on, it may hum briefly. This is a character- istic of all ceramic glass cooking zones and does not impair either the func- tion or the life of the appliance. - Page 10 2.Within 10 seconds, touch the “Switch on” sensor field. The “Activate” sensor field control indicator goes out and the “Switch on” sensor field control indicator lights up. Th warming zone is now switched on. 3.To switch it off, touch the “Switch off” sensor field. The “Switch on” sen- sor field control indicator goes out.
-
Page 11: Residual Heat Indicator
Residual heat indicator The ceramic cooking zone is equipped with a residual heat indicator, a con- trol lamp is allocated to each cooking zone. This lights up as soon the corre- sponding cooking zone is hot and warns against inadvertant contact. The residual heat indicator only goes out when the cooking zone has cooled down even when the cooking zone is switched Off. -
Page 12: Uses, Tables And Tips
Uses, Tables and Tips Pans The better the pan, the better the results. • You can recognise good pans by their bases. The base should be as thick and flat as possible. • Pay particular attention when buying new pans to the diameter of the base. - Page 13 Settings for Cooking on the Rings The setting position required for cooking processes is dependent on the quality of the pots and on the type and amount of the food. Heat Cooking Examples setting method Starting of cooking and roasting, cooking of large quantities of liquid, then switch- Parboiling back to...
-
Page 14: Cleaning And Care
Cleaning and Care Important: Cleaning agents must not come into contact with the hot ce- ramic glass surface! All cleaning agents must be removed with plenty of clean water after cleaning because they can have a caustic effect when the rings are next heated! Do not use any aggressive cleaners such as grill or oven sprays, coarse scourers or abrasive pan cleaners. -
Page 15: Hob Frame
Problem Dirt 1.Remove burnt-on sugar, melted plastic, aluminium foil or other meltable materi- als with a glass scraper immediately and while still hot. Important: There is a risk of burning your- self when the glass scraper is used on a hot cooking zone! 2.Then clean the hob normally when it has cooled down. -
Page 16: What To Do If
What to do if … Rectifying faults It is possible that faults have been caused by a minor error, which you can correct yourself with the help of the following instructions. Do not attempt any further repairs if the following instructions do not help in each specific case. -
Page 17: Installation Instructions
Installation Instructions Important! The new appliance may only be installed and connected by qualified personnel. Please observe this instruction, otherwise the warranty will not cover any damage that may occur. Technical Data Appliance dimensions Width 761mm Depth 501mm Height 42mm Worktop cut-out dimensions Width 750mm... -
Page 18: Regulations, Standards, Directives
Regulations, Standards, Directives This appliance meets the following standards: • EN 60 335-1 and EN 60 335-2-6 relating to the safety of electrical appliances for household use and similar purposes and • EN 60350, or DIN 44546 / 44547 / 44548 relating to the operating features of electric cookers, hobs, ovens, and grills for household use. -
Page 19: Safety Instructions For The Installer
Safety Instructions for the Installer • A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm. Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors. -
Page 20: Electrical Connection
Electrical Connection • Before connection, check whether the nominal voltage of the appliance, the voltage stamped on the nameplate, is in agreement with the available supply voltage and the nominal voltage of the combination appliance. The nameplate is situated on the under-covering of the cooking surface. •... -
Page 21: Service
Service In the “What to do if …” section a number of malfunctions are listed that you can rectify yourself Look there first if a fault occurs. Is it a technical fault? If so, please contact your customer service centre. (You will find addresses and telephone numbers in the section “Customer Service Centres”.) Always prepare in advance for the discussion. -
Page 22: Assembly
Assembly / Montage... - Page 24 Änderungen vorbehalten Wijzigingen voorbehouden Sous réserve de modifications 822 924 181-B-030403-02 Subject to change without notice From the Electrolux Group. The world´s No.1 choice. The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use.
