Yamaha MAJESTY 400 Owner's Manual page 52

PERIODIC MAINTENANCE AND MINOR REPAIR

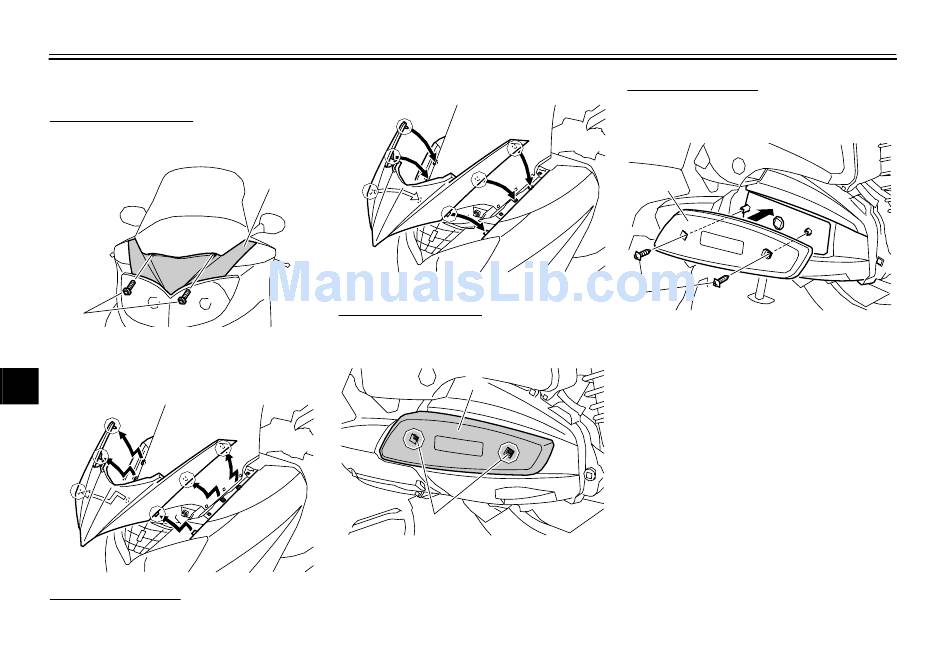

Panel A
To remove the panel
1. Remove the bolts.
1
2
3
4
1
5
1. Bolt
2. Panel A
6
2. Pull the panel out as shown.
7
8
9
To install the panel
Place the panel in the original position,
and then install the bolts.
EAU34290
2
Panel B
To remove the panel
Remove the screws, and then pull the
panel outward.
2
1. Panel B
2. Screw
To install the panel
Place the panel in the original position,
and then install the screws.
1
1. Screw
2. Panel B
1
6-11
2
