  Summary of Contents for Westinghouse SB926

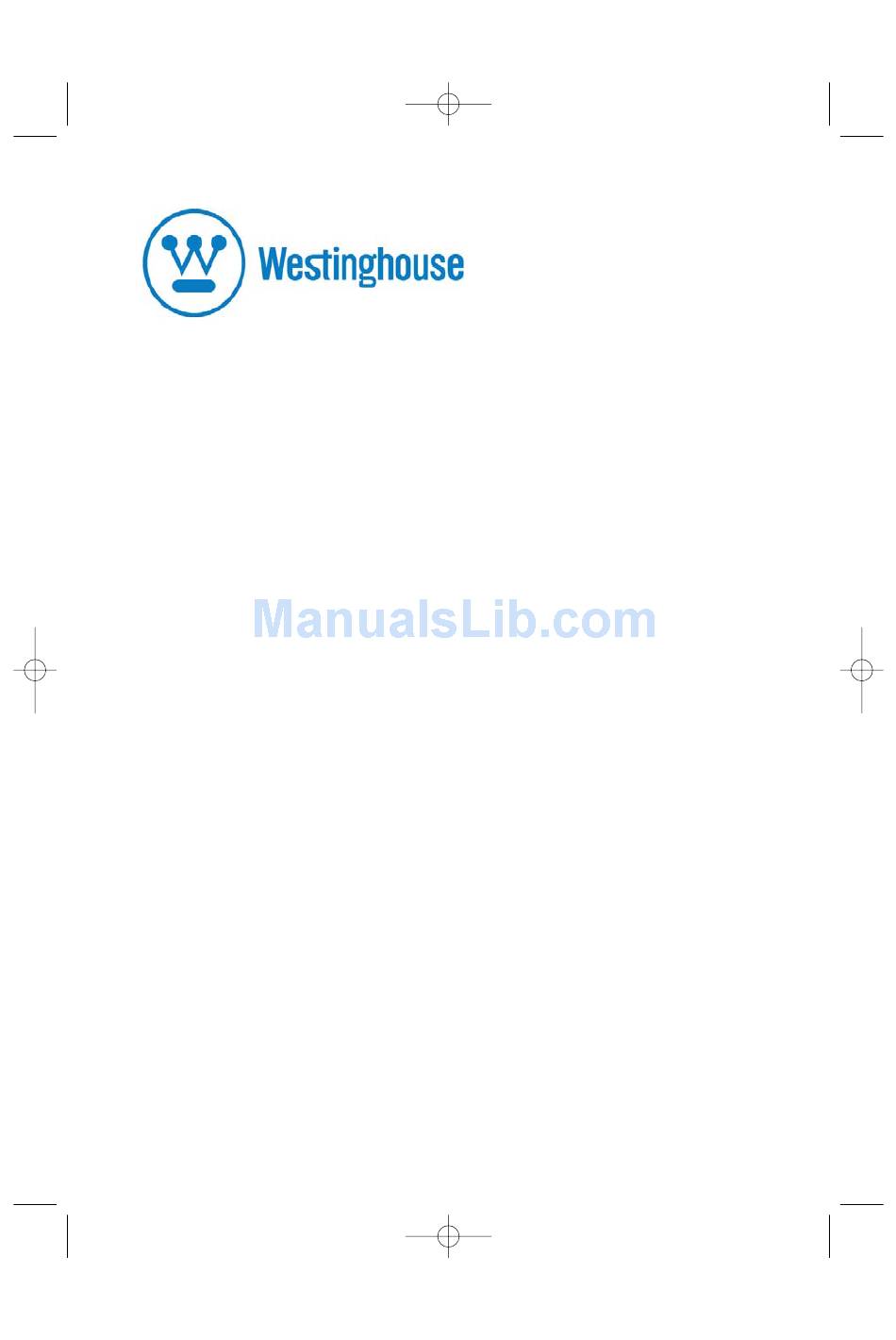

  • Page 1 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 1 user manual Dishwasher SB926...
  • Page 2 So when we say we’re thinking of you, you know we mean just that. Electrolux. Thinking of you. Westinghouse. We are part of the Electrolux family. Share more of our thinking at www.electrolux.com...
  • Page 3: Table Of Contents

    117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 3 contents 3 Contents Safety information Product description Control panel First use Daily use Washing programmes Care and cleaning Something not working Technical data Hints for test institutes Installation Building-in Environment concerns Warranty The following symbols are used in this manual: Important information concerning your personal safety and information on how to avoid damaging the appliance.
  • Page 4: Safety Information

    117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 4 4 safety information Safety information ● If the supply cord is damaged, it must be replaced by the manufacturer or its service agent In the interest of your safety and to or a similarly qualified person in ensure correct use, before order to avoid a hazard.
  • Page 5 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 5 safety information 5 Child safety Installation ● This appliance is not intended for ● Check your dishwasher for any use by young children or infirm transport damage. Never connect persons unless they have been a damaged machine.
  • Page 6: Product Description

    117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 6 product description Product description Upper basket Pressure balancing device This dishwasher has an internal Detergent dispenser light that turns on when the door is opened. Rinse aid dispenser Internal light equipped with led Rating plate lamp CLASS 1 in accordance with Filters...
  • Page 7: Control Panel

    117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 7 control panel 7 Control panel POWER light POWER button The digital display indicates: the approximate remaining time of PROGRAM selection button the running program, the end of a washing program DELAY button (a zero will appear in the digital display), START / Button LOCK the countdown of the delay start,...
  • Page 8 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 8 control panel If any button is pressed, an audible signal indicates that the key lock funtion is active. Button Lock option To cancel the selected program and select a new one, reset the Close the door.
  • Page 9: First Use

    117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 9 first use 9 First use Before using your dishwasher for the The dispenser holds about 110 ml of first time: rinse aid, which is sufficient for between 16 and 40 dishwashing Ensure that the electrical and ●...
  • Page 10: Daily Use

    117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 10 10 daily use Daily use Check if it’s necessary to refill with - Lay small objects in the cutlery ● rinse aid basket. Load cutlery and dishes into the ● Plastic items and pans with non ●...
  • Page 11 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 11 daily use 11 For washing in the dishwasher the following cutlery and dishes are not suitable: - Cutlery with wooden, horn, china or mother-of- pearls handles. - Plastic items that are not heat resistant. - Older cutlery with glued parts that are not temperature resistant.
  • Page 12 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 12 12 daily use Open the door and slide out the The rows of prongs on the lower baskets to load the dishes. basket can be easily lowered to allow you to load pots, pans and bowls. The lower basket The lower basket is designed to take saucepans, lids, plates, salad bowls,...
  • Page 13 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 13 daily use 13 The cutlery basket For best results we recommend you use the cutlery grids. If the size and dimensions of the cutlery do not allow the use of the Long bladed knives stored in an grids, they can be easily hidden or upright position are a potential removed.
  • Page 14 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 14 14 daily use The upper basket The upper basket is designed for plates (dessert plates, saucers, dinner plates of up to 24 cm in diameter), salad bowls, cups and glasses. Arrange items on and underneath the cup racks so that water can reach all surfaces.
  • Page 15 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 15 daily use 15 Adjusting the height of the upper basket If washing very large plates you can load them in the lower basket after moving the upper basket to the higher position. Maximum height of the dishes in the lower basket upper basket lower basket With upper basket raised 31 cm...
  • Page 16 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 16 16 daily use Use of detergent 20 = approximately 20 g of detergent 30 = approximately 30 g of detergent Only use detergents specifically 3. All programmes with prewash need designed for use in dishwashers. an additional detergent dose (5/10 g) that must be placed in the Please observe the manufacturer’s...
  • Page 17 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 17 daily use 17 Use of Tablets These products are detergents with a combined cleaning, rinsing and salt functions. They can also contain different agents depending on the tablets you choose («3 in 1», «4 in 1», «5 in 1»...
  • Page 18 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 18 18 daily use Select and start a washing With DELAY fuction activated: programme ● The countdown starts automatically. The number in the 1. Check that the baskets have been display is no longer flashing but loaded correctly and that the spray fixed with static light.
  • Page 19 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 19 daily use 19 Cancel a delay start or a washing program in progress Simultaneously press and hold the ● The dishwasher drying system is two program buttons positioned provided with a device that allows air over the word Cancel, until only to circulate inside the dishwasher to the POWER light is on.
  • Page 20: Washing Programmes

    117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 20 20 washing programmes Washing programmes Program Degree of Type of load Program description soil Partial load 1 cold rinse (to avoid food RINSE (to be scraps from sticking together). completed This program does not require later in the the use of detergent.
  • Page 21 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 21 washing programmes 21 Washing programmes information During the "SENSOR" washing program the amount of soil on the dishes is determined by how cloudy the water is. The program duration, water and energy consumption levels can vary, this depends upon if the appliance is fully or partially loaded and if the dishes are lightly or heavily solied.
  • Page 22: Care And Cleaning

    117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 22 22 care and cleaning Care and cleaning Cleaning the filters 4. Take hold of the coarse filter (A) by the handle with the hole and The filters must be checked and remove from the microfilter (B). cleaned from time to time.
  • Page 23 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 23 care and cleaning 23 Prolonged periods of non- operation If you are not using the machine for NEVER try to remove the spray any prolonged period of time you are arms. advised to: If soil residue has clogged the holes in the spray arms, remove them with a 1.
  • Page 24: Something Not Working

    117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 24 24 something not working Something not working The dishwasher will not start or stops during operation. Certain problems are due to the lack of simple maintenance or oversights, which can be solved with the help of the indications described in the chart, without calling out a service technician.
  • Page 25 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 25 something not working 25 Fault code Malfunction Possible cause Solution The program does The dishwasher Close the door ● ● not start door has not been properly closed The main plug is Insert the main ●...
  • Page 26 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 26 26 something not working The wash results are not satisfactory The dishes are not clean The wrong washing program has been selected. ● The dishes are arranged in such a way as to stop water ●...
  • Page 27: Technical Data

    117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 27 technical data 27 Technical data Dimensions Width 59,6 cm Height 82 cm Depth 58,2 cm Electrical connection Information on the electrical connection is given Voltage - Overall power - on the rating plate on the inner edge of the Fuse dishwasher’s door Water supply pressure...
  • Page 28 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 28 28 technical data Consumption values Program Programdur Energy Water ation consumption consumption (in minutes) (in kWh) (in litres) Rinse <0,1 FAST_30 60° NORMAL ECO 0.82 - 0,92 14 - 16 (Test programme for test institutes) HEAVY 70°...
  • Page 29: Hints For Test Institutes

    117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 29 hints for test institutes 29 Hints for test institutes Testing in accordance with AS/NZS The rinse aid dispenser must be filled 2007 must be carried out with the and the door must be opened at the appliance fully loaded and using the end of cycle for 30 minutes for drying test programme (see "Consumption...
  • Page 30: Installation

    117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 30 installation Installation Water supply connections This dishwasher may be fed with either hot (max. 60°) or cold water. Any electrical and/or plumbing However, a hot water supply is not work required to install this always efficient with very soiled crockery appliance should be carried out by as it shortens the washing programmes...
  • Page 31 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 31 installation 31 Always use a new hose-set when connecting the appliance to the water mains. An old hose-set must Warning! not be reused. The inlet hose Dangerous voltage should be inspected every 12 months for deterioration and replaced if necessary.
  • Page 32: Drain Hose

    117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 32 installation Drain hose - Connect drain hose to the sink. Secure it with the supplied hose clamp. - Required height: 30 to 100 cm above bottom of the dishwasher. - If you use a drain hose extension the total length should not be longer than 4 metres.
  • Page 33 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 33 installation 33 Electrical connection Safety standards require the appliance to be earthed. Prior to using the appliance for the first time, ensure that the rated voltage and type of supply on the rating plate match that of the supply where the appliance is to be installed.
  • Page 34: Building-In

    117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 34 34 building-in Building-in This dishwasher is designed to be Adjusting the height of the fitted either under a kitchen counter or dishwasher a worksurface. To adjust the height proceed as It is essential that the recess follows: dimensions indicated in the illustration 1.
  • Page 35 117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 35 building-in 35 Fitting the steam protection Fit the steam protection onto the front part of the worktop, using the screws The dishwasher must be secured provided. to the underside of the worktop or to adjacent units by using the brackets supplied.
  • Page 36: Environment Concerns

    117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 36 36 environment concerns Environment concerns Packaging material Old appliance The packaging materials include This appliance should be handed over recyclable items. The plastic to the applicable collection point for components are identified by recycling.
  • Page 37: Warranty

    117994710 10042007.qxp 4/10/2007 3:04 PM Pagina 37 warranty 37 Warranty 5. Parts and Appliances not supplied by Electrolux are not FOR SALES IN AUSTRALIA AND NEW ZEALAND covered by this warranty. APPLIANCE: Dishwasher This document sets out the terms and conditions of 6.
  • Page 38 117994710 10042007.qxp 4/10/2007 3:05 PM Pagina 38 38 warranty Limitation of Liability (a) in the case of Appliances, at its option, to the replacement or repair of the Appliances or the 10. To the extent permitted by law: supply of equivalent products or the (a) Electrolux excludes all warranties other than as payment of the cost of replacing the Appliances or contained in this document;...
  • Page 39 117994710 10042007.qxp 4/10/2007 3:05 PM Pagina 39...
  • Page 40 117994710 10042007.qxp 4/10/2007 3:05 PM Pagina 40 www.electrolux.com www.westinghouse.com.au 117 994 710 -00-10042007...
