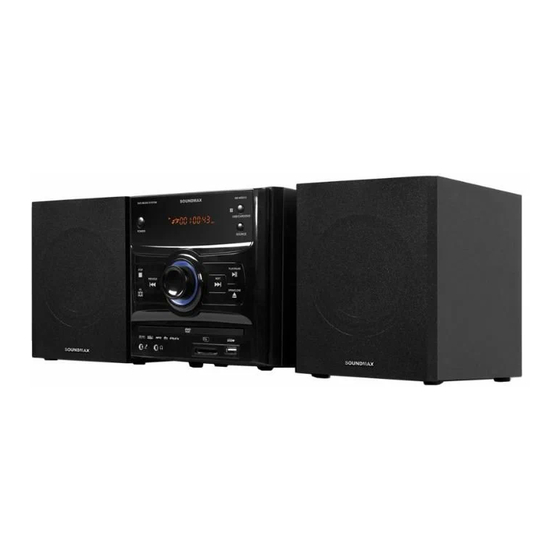

MS-MSD10
DVD MICRO SYSTEM
DVD
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-MSD10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SoundMax MS-MSD10

Summary of Contents for SoundMax MS-MSD10

  • Page 1 MS-MSD10 DVD MICRO SYSTEM Instruction manual...

  • Page 2: Table Of Contents

    Contents Contents Before you start Control elements Connection Button functions System setup Other operations General information Specification...

  • Page 3: Before You Start

    Before you start Utilization of the product If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Please contact your local authorities for the correct method of disposal.
  • Page 4 Use supply sources of rated voltage; otherwise the unit may not function or may be damaged. Place the unit on a horizontal surface. Keep the unit ventilated. Don’t block the heat hole. Overheat may cause malfunction. Do not place any objects on the cover, this may make it function improperly (incorrect playback). Please place the unit in a dry and well-aired area.
  • Page 5 Supported formats Disc types Symbol Contents Audio + Video Audio Video-CD (VCD) Audio + Video SVCD Audio + Video DVCD Audio + Video HDCD Audio JPEG Digital Photo CDDA Audio Kodak Picture CD Digital Photo MPEG4 Audio + Video...

  • Page 6: Control Elements

    Control elements Front panel Rear panel 1. R/L button 1. Stereo audio out (Left) 2. STOP button 2. SCART connector 3. POWER button 3. Component video out 4. PREVIOUS button 4. Audio line in 1 (Left/Right) 5. Display 5. Audio line in 2 (Left/Right) 6.
  • Page 7 Remote control (RC) 1. STANDBY button 2. Number buttons 3. MUTE button 4. SUBTITLE button 5. ENTER button/Cursor buttons 6. AUDIO button 7. PLAY/PAUSE button 8. STOP button 9. FINE-/FINE+ (FAST BACKWARD/FAST FORWARD) buttons 10. A-B button 11. REPEAT button 12.
  • Page 8 Battery installation 1. Remove the battery compartment cover on the back of the RC. 2. Insert the batteries into the battery compartment making sure that the correct polarity is observed. 3. Install the cover back. Use two AAA/1.5V batteries for the RC. The RC should be pointed at the IR sensor within 8 meters and within 30 degrees at the left or the right side.

  • Page 9: Connection

    Connection Before you start connection of external devices, ensure that power of the unit is switched off. Following outputs are available in this unit: Composite video Use the yellow plug of an AV cable to connect the composite video output of this unit to the video input of a TV/monitor. Component video Use a 3-core AV cable to connect the component outputs of this unit to the corresponding inputs of a TV/monitor.

  • Page 10: Button Functions

    Button functions STANDBY When playing, press STANDBY button on the panel or on the RC to turn off the unit, and standby mode will be activated; Press the button again, to turn on the unit and it will start playing. To switch off the power completely, set POWER switch on the rear panel to OFF position.
  • Page 11 TITLE When playing a DVD disc, press TITLE button to return to the main title menu of the disc. SLOW (for VCD/DVD discs) Press SLOW button repeatedly to change slow playback speed as follows: 1/2 => 1/4 => 1/8 => 1/16 => normal. SETUP Press SETUP button to enter or exit the system setup menu.
  • Page 12 TV-MODE Press this button to select Progressive (P-Scan) or Interlace scan mode. STOP When playing DVD, SVCD, VCD, CD disc, press this button once, the unit will memorize the previous ending point; when afterwards you play the same disc, playback will start from the memorized point. Press STOP button two times, playback will stop without memorizing the stop point.
  • Page 13 When playing DVD disc, press NEXT button to go to the next chapter. When playing SVCD, VCD, CD disc, press NEXT button to go to the next track. MUTE Press MUTE button, the sound will be turned off. Press MUTE button again or adjust the volume to resume the sound. TONE Press this button to select bass (b-) or treble (t-).

  • Page 14: System Setup

    System setup 1. Press SETUP button to enter the setup menu. In setup mode, press SETUP button again to quit the setup page. 2. Use LEFT/RIGHT cursor buttons to choose a setup page: General setup page, Audio setup page, Dolby Digital setup, Video setup page, Preference page.
  • Page 15 Audio setup SPEAKER SETUP: Downmix LT/RT: The audio out is Left and Right channels format even if the original sound is 5.1CH format. Stereo: The audio out format is stereo even if the original sound is 5.1CH format. SPDIF SETUP: Spdif output SPDIF off: no digital signal out (optical or coaxial output off), only analog audio output.
  • Page 16 You can set sharpness, brightness and contrast according to your preference. Preference setup (available while disc is not in) TV TYPE This unit is suitable for all kinds of TV systems. You can select one of the PAL, NTSC or Multi. Multi: the TV system is auto switched according to the disc system.

  • Page 17: Other Operations

    Other operations Karaoke Karaoke disc is a DVD or VCD disc with music and subtitles, showing the user when he/she should start singing this or that song part. You need to use a microphone for singing (not included). Connect microphone to the microphone jack on the front panel. Enter system setup menu on the Karaoke page and perform adjustment according to you preference.
  • Page 18 Button Function STOP Entering playback menu NEXT Next picture PREVIOUS Previous picture PLAY/PAUSE To play/pause slideshow Invert picture DOWN Mirror image LEFT Rotate 90 degrees anticlockwise RIGHT Rotate 90 degrees clockwise ZOOM Change zoom mode Cursor buttons Move zoom center Note: Some file names can be displayed incorrectly due to incompatibility of supported encoding.

  • Page 19: General Information

    General information Handling compact discs Do not insert anything other than a CD into the disc tray. Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause damage to the player. Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface. Store discs in their cases when not in use.
  • Page 20 Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution...

  • Page 21: Specification

    Specification Number of speakers Power output 15 W X 2 The number of storable stations FM range 87.5-108 MHz Supported storage DVD-R/-RW, DVD+R/+RW, CD-R/-RW, USB, SD/MMC Formats of playback DVD, DVCD, Super VCD, VCD, HDCD, CDDA, MP3, Kodak Picture CD, JPEG/MPEG4 (DivX) Built-in sound decoders Dolby Digital Stereo audio out...
  • Page 25 Video-CD (VCD) SVCD DVCD HDCD JPEG CDDA Kodak Picture CD MPEG4...
  • Page 26 STOP SCART POWER PREVIOUS SOURCE USB/CARD/DVD PLAY/PAUSE S-video POWER (On- /Off- SD/MMC NEXT 15. USB- OPEN/CLOSE...
  • Page 27 STANDBY MUTE SUBTITLE ENTER/ AUDIO PLAY/PAUSE STOP FINE-/FINE+ (FAST BACKWARD/FAST FORWARD) REPEAT TV-MODE ZOOM CH-LEVEL OPEN/CLOSE AUTO SEARCH V-MODE ANGLE GOTO SETUP VOL-/VOL+ TITLE MENU SOURCE CH-/CH+ (PREVIOUS/NEXT) PROG SLOW MO/ST ECHO S-EFFECT TONE...
  • Page 28 AAA/1.5V...
  • Page 29 S-Video S-Video S-Video S-Video SCART SCART SCART SCART RCA ( RCA- DVD/VCD/VCR- DTS.
  • Page 30 STANDBY STANDBY STANDBY, POWER OFF. OPEN/CLOSE OPEN/CLOSE OPEN/CLOSE MP3). AUTO SEARCH ECHO ZOOM DVD- VCD- ZOOM : 2x => 3x => 4x => ( ).
  • Page 31 REPEAT REPEAT TITLE TITLE SLOW ( VCD/DVD) SLOW, : 1/2 => 1/4 => 1/8 => 1/16 => SETUP SETUP SUBTITLE SUBTITLE AUDIO MP3- MENU DVD- MENU ENTER ENTER ANGLE ANGLE...
  • Page 32 V-MODE (YUV – RGB – S-Video). SOURCE , DVD, Line1 ( 1), Line2 ( 2)). TV-MODE (P-Scan) STOP DVD/SVCD/VCD/CD- STOP STOP PLAY/PAUSE PLAY/PAUSE PROG PROG NEXT ENTER ENTER PROG. PROG VOL+/VOL- VOL+/VOL-...
  • Page 33 FINE- (FAST BACKWARD) : 2X => 4X => 8X => 16X => 32X => FINE+ (FAST FORWARD) : 2X => 4X => 8X => 16X => 32X => PREVIOUS/NEXT PREVIOUS SVCD, VCD, CD PREVIOUS NEXT SVCD, VCD, CD NEXT MUTE MUTE;...
  • Page 34 USB- DVD ( USB/CARD/DVD , USB GOTO...
  • Page 35 SETUP, SETUP. Dolby Digital, ENTER. 4:3/PS: 4:3/LB: 16:9: SUBTITLE STANDBY...
  • Page 36 HDCD , 1 (44,1 2 (88,2 . SPDIF: SPDIF . SPDIF: SPDIF/RAW: SPDIF/PCM: Dolby Digital...
  • Page 37 S-Video: S-Video YUV: Y/U/V RGB: SCART (P-Scan) «YUV». PAL, NTSC Multi. PAL: Multi: NTSC: 136900. 136900...
  • Page 38 • – VCD, • • • MP3/JPEG/MPEG4 MP3 - MP3- JPEG (Joint Photographic Expert Group) - 15-20 MPEG4 - MP3/MPEG4 PLAY/PAUSE ENTER AVI-...
  • Page 39 JPEG • STOP, • • PLAY/PAUSE ENTER JPEG STOP NEXT PREVIOUS PLAY/PAUSE DOWN LEFT RIGHT ZOOM Cursor buttons USB- SD/MMC USB- SD/MMC USB- USB-...
  • Page 40 AAA 1.5V...
  • Page 42 87,5 – 108 DVD-R/-RW, DVD+R/+RW, CD-R/-RW, USB, SD/MMC DVD, DVCD, Super-VCD, VCD, HDCD, CDDA, MP3, Kodak Picture CD, JPEG/MPEG4 (DivX) Dolby Digital (RCA) + S-Video SCART MPEG4 ID3- ) 179 x 260 x 166 139 x 160 x 164 , 50...
