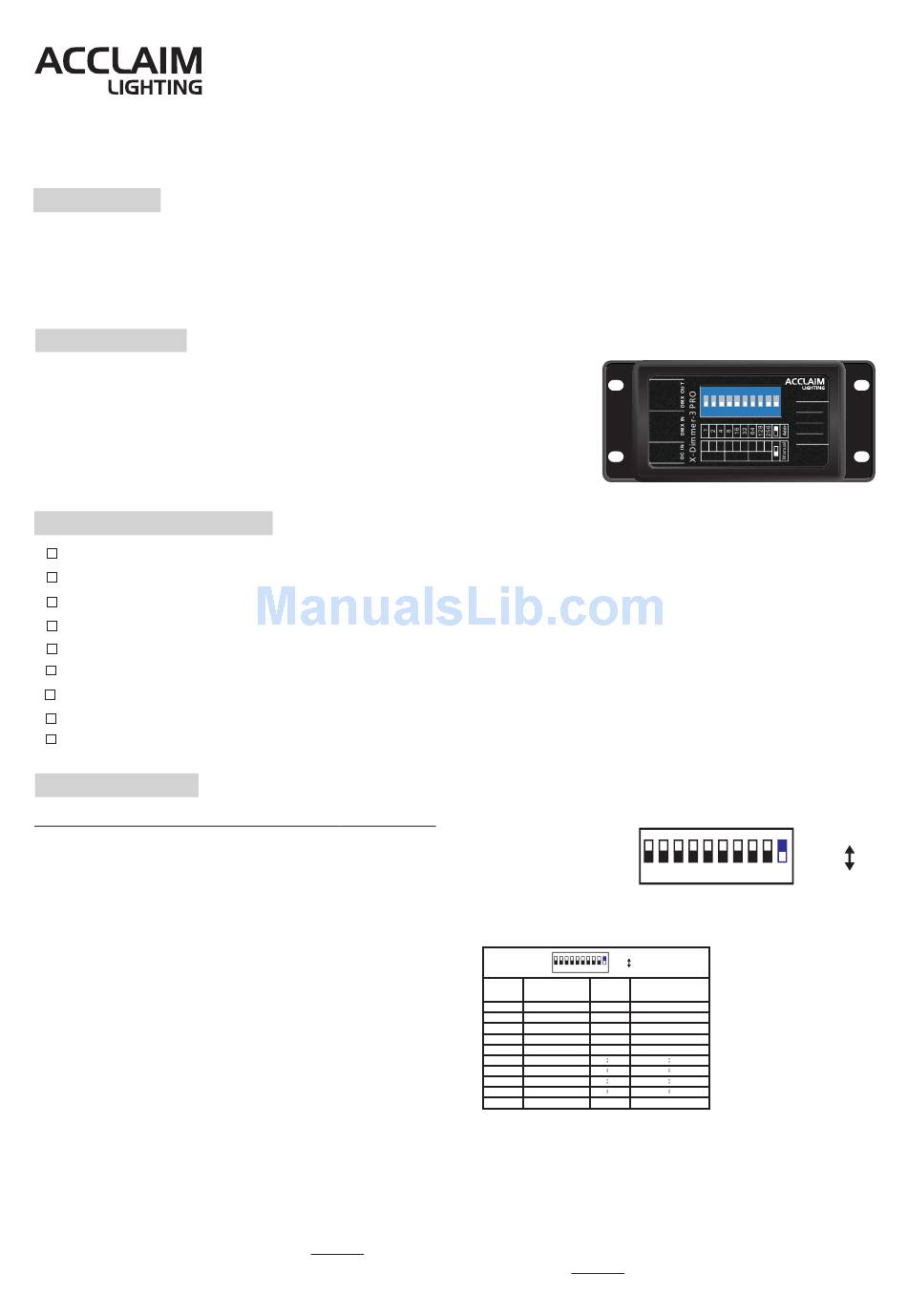

Acclaim Lighting X-Dimmer-3 PRO User Instructions

Descriptions

Congratulations with your purchase of this product.
Read this manual carefully before using our X-Dimmer-3 PRO. The X-Dimmer-3 PRO, three channel (R.G.B.) LED
dimmer, is designed to set the intensity for R.G.B. LEDs, three channels can be controlled separately. Available in
online operation, DMX control mode for slave control, Manual Dim mode for master control.

Delivery Packet

Check for transport damage.
You should be in possession of the following items:
1 X-Dimmer-3 PRO
1 Manual, 1 Screwdriver & 1 connecting part
Should you discover transport damage after unpacking the equipment,
inform the hauler immediately. Never connect a damaged device. You
may also contact your supplier.

Technical Specifications

Power Requirement
Output
Housing
Control Protocol
Connection
Operation temperature
Ingress Protection Rating
Dimensions
Weights

Operation Guide

1.DMX Control Mode(DMX Addressing)-Slave Mode
In this mode, the dip-switch 10 is flipped to the "ON" position, DMX address
can be set and the intensity of LED is controlled. Red effect is controlled by
Ch1, Green effect is controlled by Ch2 and Blue effect is controlled by Ch3.
DMX is short for Digital Multiplex. This is a universal binary language used as a form of communication between
intelligent fixtures. Each Dip Switch represents a binary value.
Dip Switch 1 address equals 1
Dip Switch 2 address equals 2
Dip Switch 3 address equals 4
Dip Switch 4 address equals 8
Dip Switch 5 address equals 16
Dip Switch 6 address equals 32
Dip Switch 7 address equals 64
Dip Switch 8 address equals 128
Dip Switch 9 address equals 256
A DMX value(address) is set by combining the different dipswitches that will add up to the value you wish to achieve,
for example:
X-Dimmer-3 PRO
User Instructions
Setting DMX address for 21.
Flip switches1,3,&5 to the
"ON" position
1=1
3=4
Dipswitches#
5=16
=21
6~24VDC, 6A Max.
6A, Max.
Black plastic
DMX-512 (1990)
Terminal
0 degC to +40 degC
IP 20
90(L) x 40(W) x 20(H)mm
50g
1 2 3 4 5 6 7 8 9 10
START
SWITCHES ON
CH#
1 1
2 2
1,2
3
4 3
1,3
5
6 2,3
7 1,2,3
8 4
1,4
9
2,4
10
Setting DMX address for 201.
Flip switches1,4,7,& 8 to the
"ON" position
Value Dipswitches#
-1-
DMX Address Setting
GND
ON
Data -
Data+
1 2 3 4 5 6
GND
Data -
Data+
1 2 3 4 5 6 7 8 9
+6-24V
Red Green Blue
GND
X-Dimmer-3 PRO
1 2 3 4 5 6 7 8 9 10
1 = ON
0= OFF
START
SWITCHES ON
CH#
11 1,2,4
3,4
12
1,3,4
13
2,3,4
14
1,2,3,4
15
511 1,2,3,4,5,6,7,8,9
1=1
4=8
Value
7=64
8=128
=201
RS
OUTPUT
Blue
7 8 9 10
Green
Red
+6-24V
6A max.
Made in PRC
ON
1 =
0= OFF
P/N:24-004-2999-00
Rev 1.3
