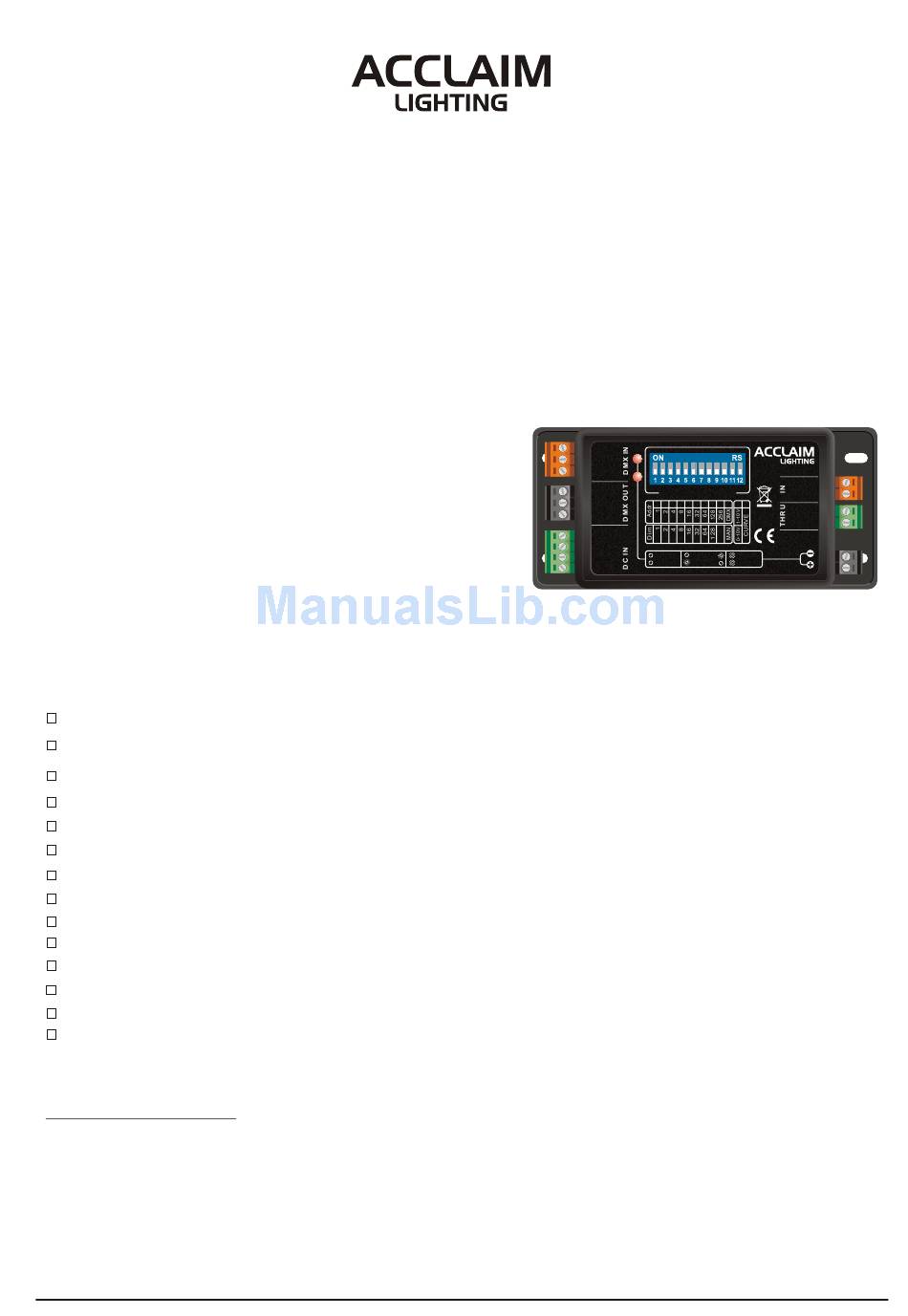

Acclaim Lighting AL-DIMMER-1 HP User Instructions

DESCRIPTIONS
Congratulations with your purchase of this product.
Read this manual carefully before using our AL-DIMMER-1 HP. This unit serves as a single channel dimmer. It is
designed to set the intensity for the high power R.G.B. LEDs, features the user may select the current output as
350mA, 500mA or 700mA. Its working mode is available in DMX control and Manual Dim mode, and the analog
signal is available in 0~10V and 1~10V, it's working mode and the DMX address can be set by Dip-switch.
DELIVERY PACKET
Check for transport damage.
You should be in possession of the following items:
1 AL-DIMMER-1 HP
1 Manual
1 Screwdriver
Should you discover transport damage after unpacking the equipment,
inform the hauler immediately. Never connect a damaged device. You
may also contact your supplier.

TECHNICAL SPECIFICATIONS

Power Requirement
Output Current
DC In
DMX In/Out
Analog In/THRU
Loading Output
Housing
Control Protocol
Connection
Listing
Operation temperature
Ingress Protection Rating
Dimensions
Weight

OPERATION GUIDE

1.Output Current Option
Make sure the output current matches the power requirements of the LED fixtures prior to use AL-DIMMER-1 HP.
The output current defaults as 350mA and a built-in Dipswitch allows the user to select the output current
as 350mA,500mA or 700mA.
The following contents instruct to how to make the selection for the output current.
AL-DIMMER-1 HP
User Instructions
12~24VDC
350mA,500mA or 700mA for option
4-pin terminal
3-pin terminal
2-pin terminal
2-pin terminal
Black plastic
DMX-512 (1990)
Terminal
CE certified
0 degC to +40 degC
IP 20
115(L) x 54(W) x 23(H)mm
150g
-1-
GND
Data-
AL-DIMMER-1 HP
Data+
GND DMX Address Se tting
Data -
1 2 3 4 5 6 7 8 9 10 11 12
Data+
+12-24V
+12-24V
OUTPUT
GND
350mA 500mA 700mA
GND
Made in P.R.C.
AL-DIMMER-1 HP
GND
0-10V/1-10V
GND
0-10V/1-10V
RoHS
