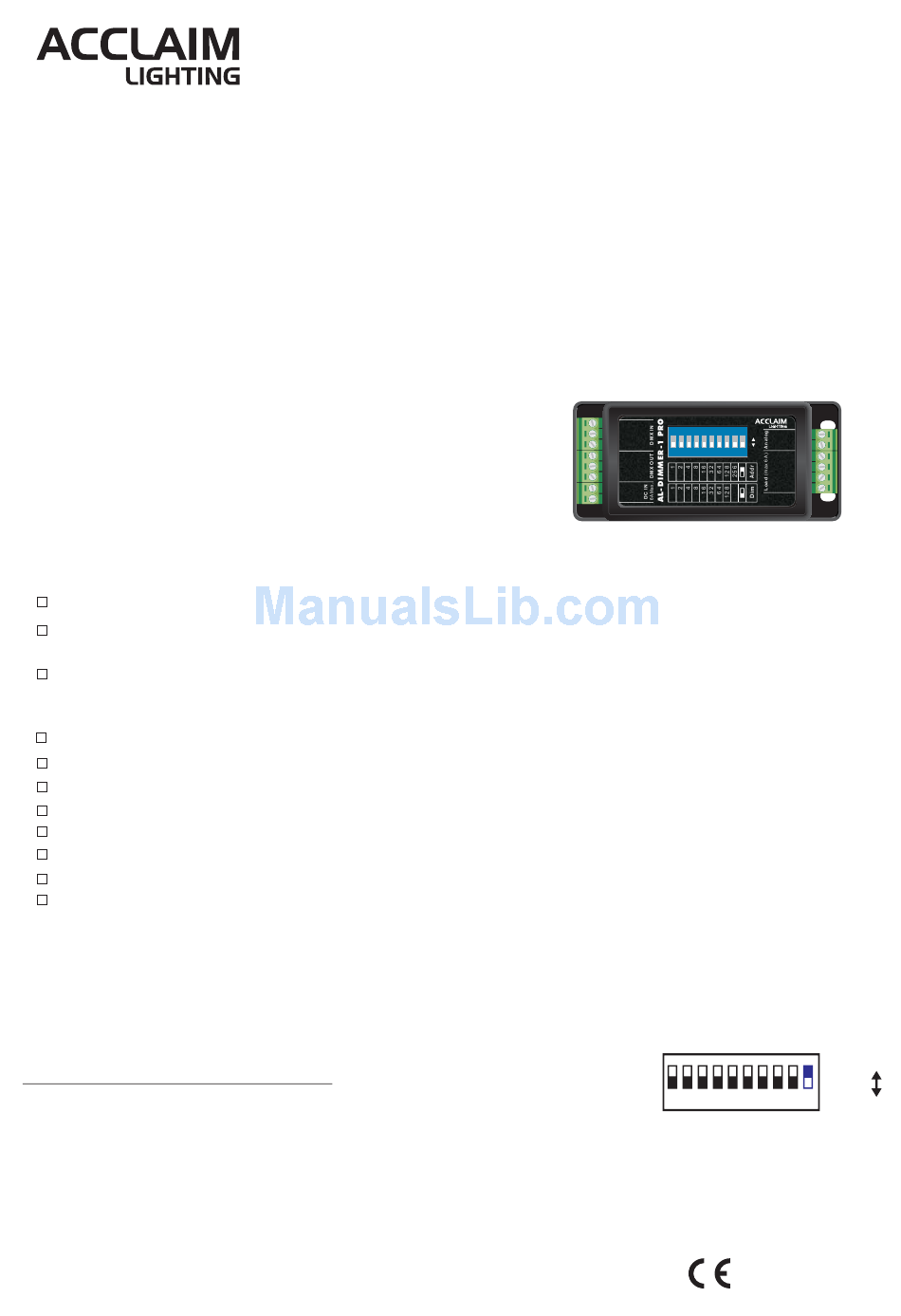

Acclaim Lighting AL-Dimmer-1 PRO User Instructions

DESCRIPTIONS

Congratulations with your purchase of this product.
Read this manual carefully before using our AcclaimLighting AL-Dimmer-1 PRO. This unit serves as a single channel
dimmer. A maximum of up to 6A loads are allowed on a single output, DMX address enables to be addressed by
flipping the dip-switch. The dimmer is available in DMX Control Mode, Manual Dim Mode and features 0-10V analog
input. The intensity of LED product can be dimmed in the Manual Dim Mode.

DELIVERY PACKET

Check for transport damage.
You should be in possession of the following items:
1 AL-Dimmer-1 PRO
1 Manual, 1 Screwdriver & 1 Connecting part
Should you discover transport damage after unpacking the
equipment, inform the hauler immediately. Never connect a
damaged device. You may also contact your supplier.

TECHNICAL SPECIFICATIONS

Power Requirement
Output(6A Max.)
Input
INGRESS PROTECTION RATING
Housing
Control Protocol
Connection
Listing
Operation temperature
Dimensions
Weights
*Please Note: Improvements and specifications in the design of the unit and the manual are subject to
change without any prior written notice.

OPERATION GUIDE

1.DMX Control Mode(DMX Addressing)
In this mode, the dip-switch 10 is flipped to the "
be addressed and the intensity of LED product is dimmable.
DMX is short for Digital Multiplex. This is a universal binary language used as a form of communication between
intelligent fixtures. Each Dip Switch represents a binary value.
AL-Dimmer-1 PRO
User Instructions
12~24VDC 6A Max
3-pin terminal connector for DMX out
4-pin terminal connector for LOAD
2-pin terminal connector for Power In
2-pin terminal connector for Analog In
3-pin terminal connector for DMX In
IP20
Black plastic
DMX-512 (1990)
Terminal
CE certified
0 degC to + 40 degC
90(L) x 40(W) x 20(H)mm
50g
ON " position, DMX address can
-Page 1-

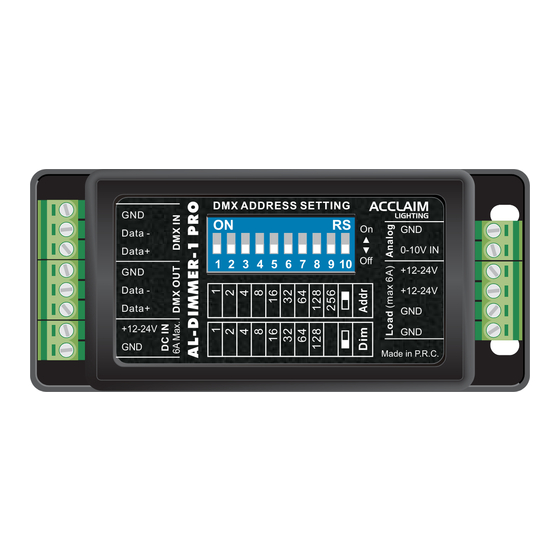

DMX ADDRESS SETTING
GND
ON RS
On GND
Data -
0-10V IN
Data+
Off
1 2 3 4 5 6 7 8 9 10
+12-24V
GND
Data - +12-24V
Data+
GND
+12-24V
GND
GND
Made in P.R.C.
AL-Dimmer-1 PRO
1 2 3 4 5 6 7 8 9 10
24-004-2461-00
Rev 1.1
1 = ON
0= OFF
