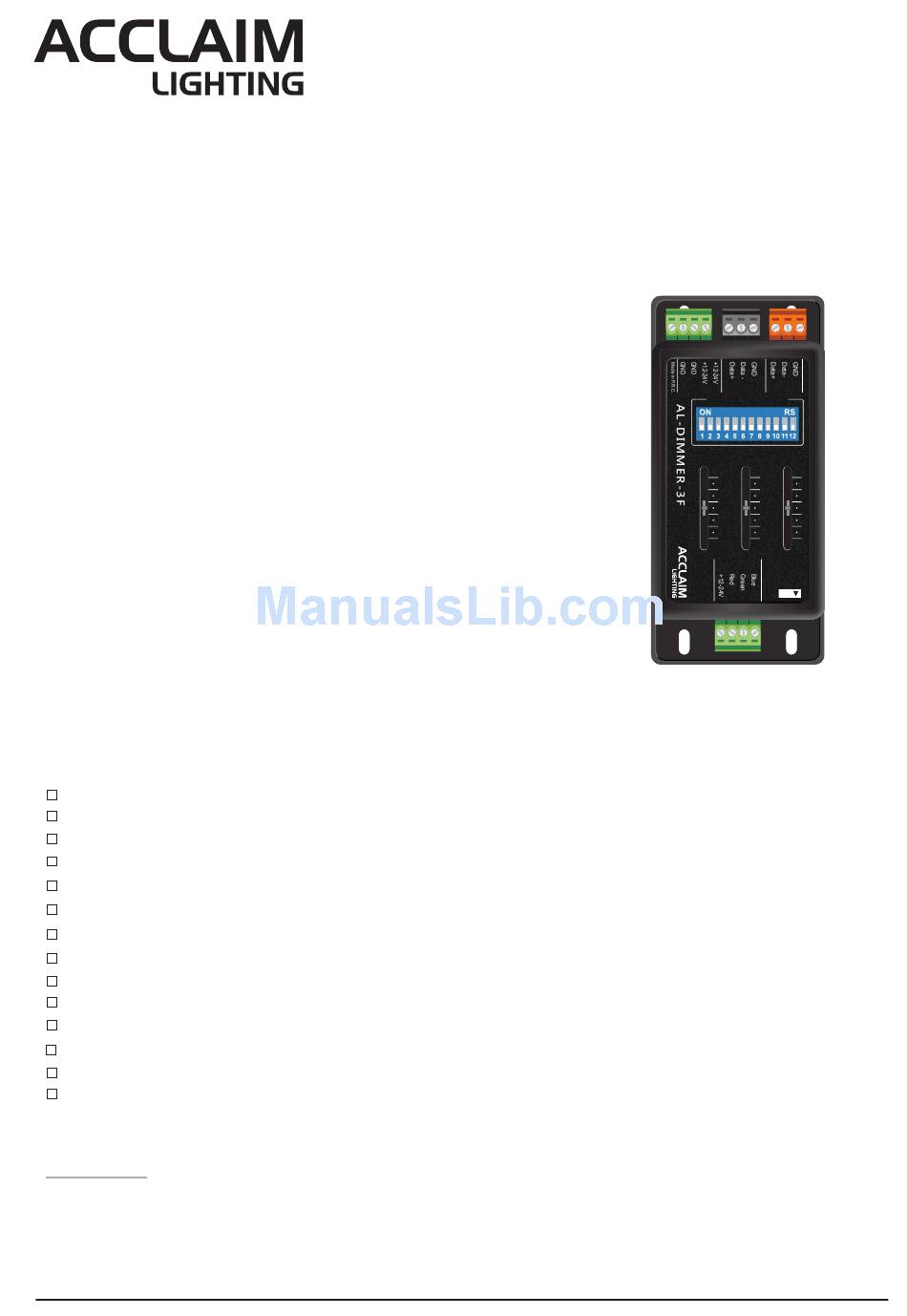

Acclaim Lighting AL-DIMMER-3F User Instructions

DESCRIPTIONS

Congratulations with your purchase of this product.
The AL-DIMMER-3F is a multifunction LED dimmer with 3 channels. It is
designed to set the intensity for R.G.B. LEDs, features that the three
channels' intensity can be controlled separately by the relevant fader. The
Dip-switch is applied to set working mode and DMX address. It is available
in online operation, DMX control mode for slave control, Auto and Manual
Dim mode for master control, in additionally, infrared remote controllable
as well.

DELIVERY PACKET

Check for transport damage.
You should be in possession of the following items:
1 AL-DIMMER-3F
1 Manual
1 Screwdriver
1 External Infrared Remote EYE sensor
1 LED remote controller
Should you discover transport damage after unpacking the equipment,
inform the hauler immediately. Never connect a damaged device. You
may also contact your supplier.

TECHNICAL SPECIFICATIONS

Power Requirement
Output Current
IR In
DC In
DMX In/Out
Loading Out
Housing
Control Protocol
Connection
Listing
Operation temperature
Ingress Protection Rating
Dimensions
Weight

OPERATION GUIDE

1.Luminance
The AL-DIMMER-3F features the user may use the 3 faders to separately control the intensity of the 3 channels
(Red, Green & Blue). Meanwhile, the outputs intensity of these 3 channels also can be controlled by Dipswitch,
DMX or infrared remote controller. At this time, the intensity channels work on the principle of "highest takes
precedence"(HTP). If the intensity is turned on at diffirerent levels in several memories, the highest level will be
output.
AL-DIMMER-3F
User Instructions
12~24VDC, 6.5A Max.
6A/CHMax.,Total 6A Max.
External Infrared Remote sensor port
4-pin terminal
3-pin terminal
4-pin terminal
Black plastic
DMX-512 (1990)
Terminal
CE certified
0 degC to +40 degC
IP 20
115(L) x 54(W) x 23(H)mm
150g
-1-
DC IN DM X OU T DM X IN
DMX Addres s Sett ing
Red Green Blu e
10 10 10
8 8 8
6 6 6
4 4 4
2 2 2
0 0 0
OUTPUT
(6A Max.)
RoHS
IR
AL-DIMMER-3F
