DESCRIPTIONS
Congratulations with your purchase of this product.

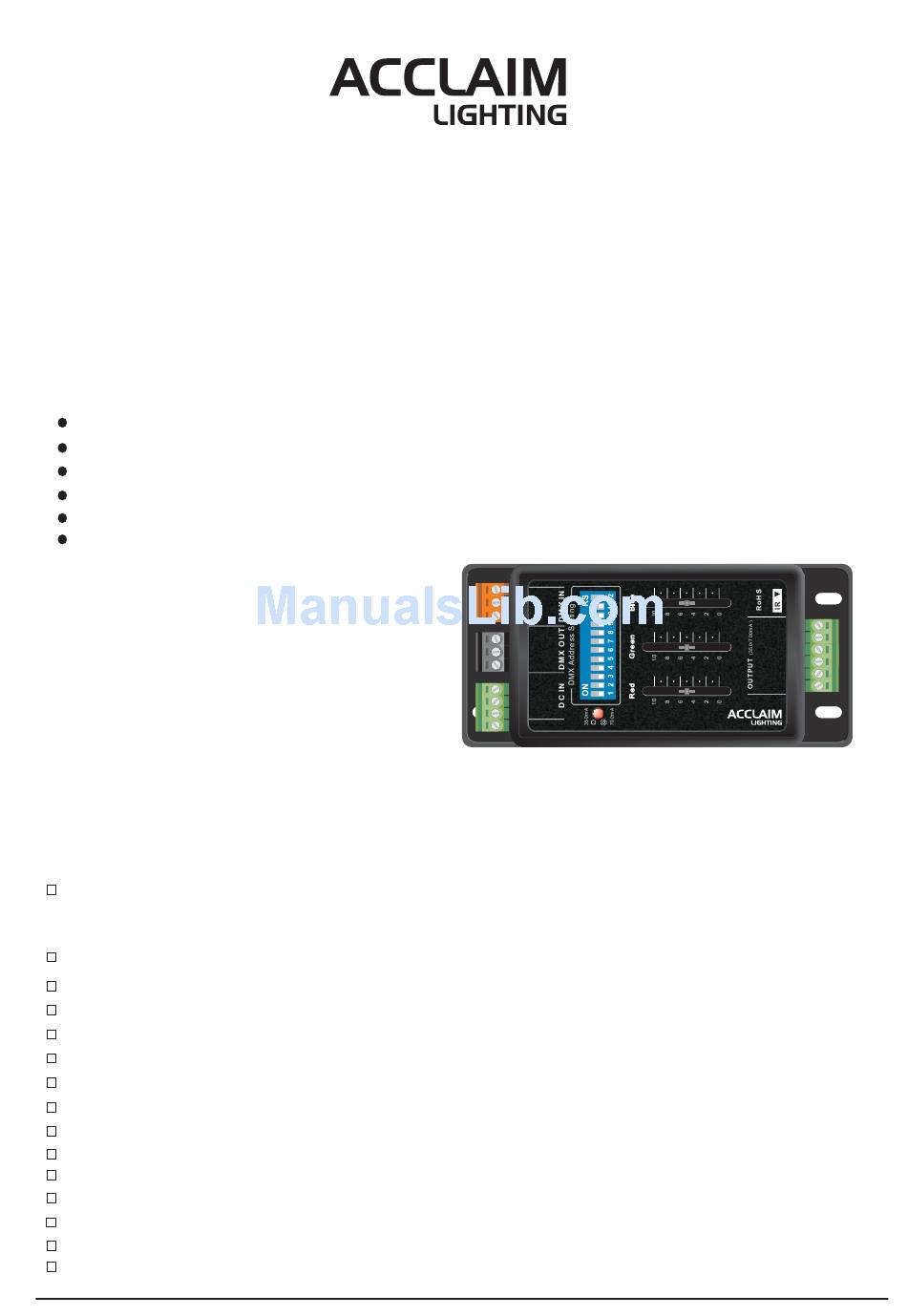

Read this manual carefully before using our AL-DIMMER-3F HP. The AL-DIMMER-3F HP, a multifunction LED
dimmer with 3 channels, is designed to set the intensity for the high power RGB LEDs.
FEATURES
The three faders can separately control the relevant channel value.
The current output is available in 350mA and 700mA for option.
Available in online operation and DMX control for slave control, Auto and Manual mode are for master control.
In online operation mode, the master can drive up to 32pcs slave AL-DIMMER-3F HP.
Infrared remote control.
Working mode and DMX address can be set by Dip-switch.
DELIVERY PACKET
Check for transport damage.
You should be in possession of the following items:
1 AL-DIMMER-3F HP
1 Manual
1 Screwdriver
1 External Infrared Remote EYE sensor
1 LED remote controller
Should you discover transport damage after unpacking the equipment,
inform the hauler immediately. Never connect a damaged device. You
may also contact your supplier.
TECHNICAL SPECIFICATIONS
Power Requirement
Output Current
Loading
IR In
DC In
DMX In/Out
Loading Out
Housing
Control Protocol
Connection
Listing
Operation temperature
Ingress Protection Rating
Dimensions
Weight
AL-DIMMER-3F HP
AL-DIMMER-3F HP
User Instructions
GND
Data-
Data+
GND
Data -
Data+
+12-24V
+12-24V
GND
GND
Made in P.R.C.
12~24VDC, 6.5A Max.
12VDC: enables to drive 1~3 LEDs/CH.
24VDC: enables to drive 1~6 LEDs/CH.
350mA or 700mA for option
6A/CH max., Total 6A max.
External Infrared Remote sensor port
4-pin terminal
3-pin terminal
6-pin terminal
Black plastic
DMX-512 (1990)
Terminal
CE certified
0 degC to +40 degC
IP 20
115(L) x 54(W) x 23(H)mm
150g
-1-
Blue-
Blue+
Green-
Green+
Red-
Red+
AL-DIMMER-3F HP
AL-DIMMER-3F HP
Advertisement
Related Manuals for Acclaim Lighting AL-DIMMER-3F HP
Summary of Contents for Acclaim Lighting AL-DIMMER-3F HP
- Page 1 DESCRIPTIONS Congratulations with your purchase of this product. Read this manual carefully before using our AL-DIMMER-3F HP. The AL-DIMMER-3F HP, a multifunction LED dimmer with 3 channels, is designed to set the intensity for the high power RGB LEDs. FEATURES The three faders can separately control the relevant channel value.
-
Page 2: Operation Guide
The following contents instruct to how to make the selection for the output current as 350mA or 700mA. 1. Take out the AL-DIMMER-3F HP and the screw driver from packing. 2. Use the screw driver to prize up the rear panel of AL-DIMMER-3F HP with the proper stength, as the following figures. - Page 3 3.DMX Control Mode(DMX Addressing)------Slave Mode In this mode, the dip-switch 11 is flipped to the " " position, DMX address can be set and the intensity of LED is controlled. Red effect is controlled by 1 2 3 4 5 6 7 8 9 10 11 12 Ch1, Green effect is controlled by Ch2 and Blue effect is controlled by Ch3.
- Page 4 Auto(Program 1~7 running in a cycle ) Note: In online operation, only one master AL-DIMMER-3F HP is allowed in a link. The master controls the slave AL-DIMMER-3F HP and maximum 32pcs can be controlled. 6.IR Control (with LED Remote Operation) The AL-DIMMER-3F HP is available in being controlled by external connected IR EYE sensor.
- Page 5 Keys Functions Red, 100% brightness Green, 100% brightness GREEN Blue, 100% brightness BLUE Cyan, 100% brightness CYAN Magenta, 100% brightness MAGENTA Yellow, 100% brightness YELLOW White, 100% brightness WHITE Amber, 100% brightness AMBER Automatically cycles through colors at100% brightness AUTO Selects the next pattern or increase the Red brightness.
