Summary of Contents for Supero 6047R-E1R24N

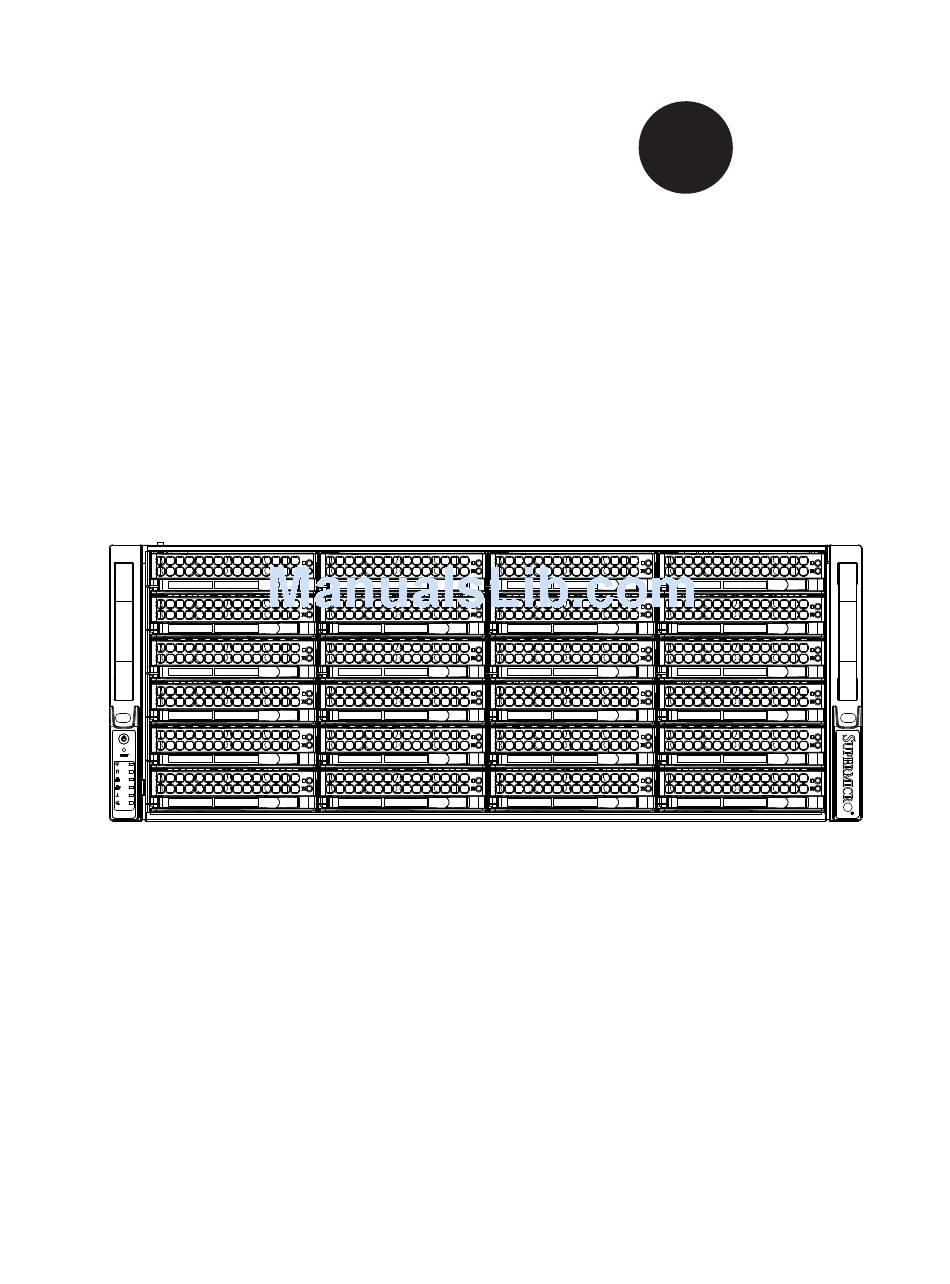

  • Page 1 UPER ® UPER TORAGE YSTEM 6047R-E1R24N USER’S MANUAL 1.0a...
  • Page 2 This product, including software and docu- mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.
  • Page 3: About This Manual

    SC846E16-R920B chassis. Chapter 2: Server Installation This chapter describes the steps necessary to install the 6047R-E1R24N into a rack and check out the server confi guration prior to powering up the system. If your server was ordered without processor and memory components, this chapter will refer you to the appropriate sections of the manual for their installation.
  • Page 4 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the X9DRi-LN4F+ serverboard, includ- ing the locations and functions of connections, headers and jumpers. Refer to this chapter when adding or removing processors or main memory and when reconfi g- uring the serverboard.
  • Page 5 Preface Notes...
  • Page 6: Table Of Contents

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 Serial ATA ......................1-2 PCI Expansion Slots ..................1-2 Rear I/O Ports ....................1-2 Server Chassis Features ................1-3 System Power ....................
  • Page 7 Table of Contents Control Panel Buttons ..................3-1 Control Panel LEDs ..................3-1 Drive Carrier LEDs ..................3-3 Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............4-1 Warning Defi nition ................... 4-1 Installation Instructions ..................4-4 Circuit Breaker ....................
  • Page 8 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Connector Defi nitions ................... 5-18 Jumper Settings .................... 5-25 5-10 Onboard Indicators ..................5-29 5-11 SATA Ports ....................5-30 5-12 Installing Software ..................5-31 SuperDoctor III ....................5-32 5-13 Onboard Battery .................... 5-33 Chapter 6 Advanced Chassis Setup Static-Sensitive Devices ..................
  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction Overview The 6047R-E1R24N is a high-end storage system comprised of two main subsys- tems: the SC846E16-R920B 4U/rack mount chassis and the X9DRi-LN4F+ dual processor serverboard. Please refer to our web site for information on operating systems that have been certifi ed for use with the system (www.supermicro.com).
  • Page 10: Serverboard Features

    YSTEM 6047R-E1R24N User's Manual Serverboard Features The 6047R-E1R24N is built around the X9DRi-LN4F+, a dual processor serverboard based on the Intel C600 chipset and designed to provide maximum performance. Below are the main features of the X9DRi-LN4F+. (See Figure 1-1 for a block diagram of the chipset).
  • Page 11: Server Chassis Features

    SATA drives. Front Control Panel The control panel on the SuperServer 6047R-E1R24N provides you with system monitoring and control. LEDs indicate system power, HDD activity, network activ- ity, system overheat/fan fail and power supply failure. A main power button and a system reset button are also included.
  • Page 12: System Block Diagram

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Figure 1-1. Intel C600 Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. CPU REAR Socket 2 PROCESSOR CPU FRONT Socket 1 PROCESSOR SYSTEM BIOS SATA x4 [7.4]...
  • Page 13 JPME2 IPMB Note: The SSG-6047R-E1R24N comes pre-installed with a Hardware RAID con- troller installed in PCI-E slot 1 and a JBOD expansion port installed in PCI-E slot 2. Serverboard SAS components shown in the fi gure above are not included on...
  • Page 14: Contacting Supermicro

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com...
  • Page 15: Chapter 2 Server Installation

    Precautions in the next section. Preparing for Setup The box the SuperServer 6047R-E1R24N was shipped in should include two sets of rail assemblies, two rail mounting brackets and the mounting screws you will need to install the system into the rack. Follow the steps in the order given to complete the installation process in a minimum amount of time.
  • Page 16: Warnings And Precautions

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual • This product is not suitable for use with visual display work place devices acccording to §2 of the the German Ordinance for Work with Visual Display Units. Warnings and Precautions Rack Precautions •...
  • Page 17: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).
  • Page 18: Rack Mounting Instructions

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Rack Mounting Instructions Rack Rails Assembly This section provides information on installing the SC846 chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly.
  • Page 19: Installing The Inner Rails On The Chassis

    Chapter 2: Server Installation Figure 2-2. Installing the Rails Installing the Inner Rails on the Chassis Installing the Inner Rails 1. Place the inner rails on the side of the chassis aligning the hooks of the chas- sis with the inner rail holes. Make sure that the rail faces "outward" so that it will fi...
  • Page 20: Installing The Outer Rails Onto A Rack

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Secure to the Front of the Rack Secure to the Rear of the Rack Attach Outer Rails Together Figure 2-3. Assembling the Outer Rails Installing the Outer Rails onto a Rack Installing the Outer Rails 1.
  • Page 21 Chapter 2: Server Installation Figure 2-4. Installing the Outer Rails to the Server Rack Note: Figures are for illustrative purposes only. Servers should always be installed to the bottom of a rack fi rst.
  • Page 22: Installing The Chassis Into A Rack

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Figure 2-5. Installing the Rack Rails Installing the Chassis into a Rack Installing the Chassis into a Rack 1. Confi rm that chassis includes the inner rails (A), also confi rm that the outer rails (B) are installed on the rack.
  • Page 23: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the hard drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specifi...
  • Page 24: Power Fail

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Power Fail Indicates a power supply module has failed. The second power supply module will take the load and keep the system running but the failed module will need to be replaced. Refer to Chapter 6 for details on replacing the power supply. This LED should be off when the system is operating normally.
  • Page 25: Drive Carrier Leds

    Chapter 3: System Interface Indicates IDE channel activity. On the SuperServer 6047R-E1R24N, this LED indicates hard and/or DVD-ROM drive activity when fl ashing. Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.
  • Page 26 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Notes...
  • Page 27: Chapter 4 Standardized Warning Statements For Ac Systems

    Only certifi ed technicians should attempt to install or confi gure components. Read this appendix in its entirety before installing or confi guring components in the Supermicro chassis. These warnings may also be found on our web site at http://www.supermicro.com/ about/policies/safety_information.cfm. Warning Defi nition Warning! This warning symbol means danger.
  • Page 28 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befi nden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 29 Warning Statements for AC Systems ‫ﺟﺴﺪﻳﺔ‬ ‫ﺍﺻﺎﺑﺔ‬ ‫ﺗﺘﺴﺒﺐ ﻓﻲ‬ ‫ﺣﺎﻟﺔ ﻳﻤﻜﻦ ﺃﻥ‬ ‫ﺍﻧﻚ ﻓﻲ‬ ‫ﺧﻄﺮ‬ ‫ﻳﻌﻨﻲ‬ ‫ﻫﺬﺍ ﺍﻟﺮﻣﺰ‬ !‫ﺗﺤﺬﻳﺮ‬ ‫ﺍﻟﺪﻭﺍﺋﺮ‬ ‫ﺑﺎﻟﻤﺨﺎﻁﺮ ﺍﻟﻨﺎﺟﻤﺔ ﻋﻦ‬ ‫ﻦ ﻋﻠﻰ ﻋﻠﻢ‬ ، ‫ﻛ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﺗﻌﻤﻞ ﻋﻠﻰ ﺃﻱ‬ ‫ﻗﺒﻞ ﺃﻥ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬ ‫ﺣﻮﺍﺩﺙ‬ ‫ﺃﻱ‬ ‫ﻭﻗﻮﻉ‬ ‫ﻤﻨﻊ‬ ‫ﻟ‬ ‫ﺍﻟﻮﻗﺎﺋﻴﺔ‬...
  • Page 30: Installation Instructions

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前,請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.
  • Page 31: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. 警告 此产品的短路(过载电流)保护由建筑物的供电系统提供,确保短路保护设备的额定电 流不大于250V,20A。 警告 此產品的短路(過載電流)保護由建築物的供電系統提供,確保短路保護設備的額定電 流不大於250V,20A。...
  • Page 32: Power Disconnection Warning

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A. Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components.
  • Page 33 Chapter 4: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...
  • Page 34: Equipment Installation

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Equipment Installation Warning! Only trained and qualifi ed personnel should be allowed to install, replace, or service this equipment. 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifi...
  • Page 35: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalifi ceerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.
  • Page 36: Battery Handling

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .('‫כלי אבטחה בלבד )מפתח, מנעול וכד‬ ‫ﻣﺤﻈﻮﺭﺓ‬ ‫ﻣﻨﺎﻁﻖ‬ ‫ﻟﺘﺮﻛﻴﺒﻬﺎ ﻓﻲ‬ ‫ﻫﺬﻩ ﺍﻟﻮﺣﺪﺓ‬ ‫ﺗﺨﺼﻴﺺ‬ ‫ﺗﻢ‬ ،‫ﺃﺩﺍﺓ ﺧﺎﺻﺔ‬ ‫ﻣﻦ ﺧﻼﻝ ﺍﺳﺘﺨﺪﺍﻡ‬...
  • Page 37 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.
  • Page 38: Redundant Power Supplies

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 警告 此部件连接的电源可能不止一个,必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個,必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.
  • Page 39: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫ﺍﻣﺪﺍﺩ ﺍﻟﻄﺎﻗﺔ‬ ‫ﺑﻮﺣﺪﺍﺕ‬ ‫ﻋﺪﺓ ﺍﺗﺼﺎﻻﺕ‬ ‫ﺠﻬﺎﺯ‬ ‫ﺍﻟ‬ ‫ﻳﻜﻮﻥ ﻟﻬﺬﺍ‬ ‫ﻗﺪ‬ ‫ﺍﻟﻜﻬﺮﺑﺎء‬ ‫ﻋﻦ‬ ‫ﻮﺣﺪﺓ‬ ‫ﺍﻟ‬ ‫ﻟﻌﺰﻝ‬ ‫ﻛﺎﻓﺔ ﺍﻻﺗﺼﺎﻻﺕ‬ ‫ﻳﺠﺐ ﺇﺯﺍﻟﺔ‬ Waarschuwing Deze eenheid kan meer dan één stroomtoevoeraansluiting bevatten. Alle aansluitingen dienen verwijderd te worden om het apparaat stroomloos te maken. Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is...
  • Page 40: Comply With Local And National Electrical Codes

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫ﺍﻟﻠﻮﺣﺔ‬ ‫ﺃﻭﺍﻟﻄﺎﻗﺔ ﺍﻟﻤﻮﺟﻮﺩﺓ ﻋﻠﻰ‬ ‫ﺍﻟﺘﻴﺎﺭ ﺍﻟﻜﻬﺮﺑﺎﺋﻲ‬ ‫ﻣﻦ‬ ‫ﺧﻄﺮ‬ ‫ﻫﻨﺎﻙ‬ ‫ﻫﺬﺍ ﺍﻟﺠﻬﺎﺯ‬ ‫ﺧﺪﻣﺔ‬ ‫ﻛﻦ ﺣﺬﺭﺍ ﻋﻨﺪ‬ ‫ﻳﻌﻤﻞ‬ ‫ﺍﻟﻨﻈﺎﻡ‬...
  • Page 41: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫ﺍﻟﻤﺘﻌﻠﻘﺔ‬ ‫ﺍﻟﻤﺤﻠﻴﺔ ﻭﺍﻟﻮﻁﻨﻴﺔ‬ ‫ﻘﻮﺍﻧﻴﻦ‬ ‫ﻳﺠﺐ ﺃﻥ ﻳﻤﺘﺜﻞ ﻟﻠ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬...
  • Page 42: Hot Swap Fan Warning

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 43 Chapter 4: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置,風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.
  • Page 44: Power Cable And Ac Adapter

    fi re. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certifi ed cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 警告...
  • Page 45 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifi és qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
  • Page 46 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Notes 4-20...
  • Page 47: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install the X9DRi-LN4F+ serverboard into the chassis, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are also described. A layout and quick refer- ence chart are included in this chapter for your reference.
  • Page 48: Unpacking

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Unpacking The serverboard is shipped in antistatic packaging to avoid electrical static dis- charge. When unpacking the board, make sure the person handling it is static protected. Connecting Cables Several cables need to be connected to the serverboard. These include the data cables for the peripherals and control panel and the power cables.
  • Page 49: Rear I/O Ports

    Chapter 5: Advanced Serverboard Setup Figure 5-1. Control Panel Header Pins Ground x (Key) x (Key) Power On LED 3.3V HDD LED ID/UID/SW/3.3V Stby NIC1 Link LED NIC1 Activity LED NIC2 Link LED NIC2 Activity LED OH/Fan Fail LED Red + (Blue Cathode Power Fail LED 3.3V Ground...
  • Page 50: Installing The Processor And Heatsink

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro web site for updates on CPU support. Installing an LGA2011 Processor Press down on the lever labeled 'Close 1st' 1.
  • Page 51 Chapter 5: Advanced Serverboard Setup 3. With the lever labeled 'Close 1st' fully retracted, gently push down on the 'Open 1st' lever to open the load plate. Lift the load plate to open it completely. Gently push 4. Using your thumb and the index down to pop the load plate fi...
  • Page 52 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Warning: You can only install the CPU to the socket in one direction. Make sure that the CPU is properly inserted into the socket before closing the load plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the load plate again and double-check that the CPU is aligned properly.
  • Page 53: Installing A Passive Cpu Heatsink

    Chapter 5: Advanced Serverboard Setup Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the re- quired amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the Serverboard's and the Heatsink Bracket underneath.
  • Page 54: Removing The Heatsink

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Removing the Heatsink Warning: We do not recommend that the CPU or the heatsink be removed. However, if you do need to uninstall the heatsink, please follow the instructions below to uninstall the heatsink to prevent damage done to the CPU or the CPU socket.
  • Page 55: Installing Memory

    Chapter 5: Advanced Serverboard Setup Installing Memory Warning: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Memory Support The X9DRi-LN4F+ supports up to 768 GB of ECC registered (RDRIMM)/Load Reduced (LRDIMM) or up to 128 GB of unbuffered (UDIMM) ECC/non-ECC DDR3- 1600/1333/1066/800 4-channel memory modules (24 modules max for RDIMMs/ LRDIMMs, 16 modules max.
  • Page 56: Dimm Module Population Tables

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual DIMM Module Population Tables Refer to the following tables to insert the desired number of CPUs and DIMMs in the correct manner. Processor and Memory Module Population Number of CPU and Memory Population Confi guration Table CPUs+DIMMs 1 CPU &...
  • Page 57 1066, 1333 1333 Note: For detailed information on memory support and updates, please refer to the SMC Recommended Memory List posted on our website at http://www.supermicro.com/sup- port/resources/mem.cfm. Intel E5-2600 Series Processor RDIMM Memory Support-Table Ranks Per Memory Capacity Speed (MT/s) and Voltage Validated by Slot per DIMM &...
  • Page 58 1066 1333 Note: For detailed information on memory support and updates, please refer to the SMC Recom- mended Memory List posted on our website at http://www.supermicro.com/support/resources/ mem.cfm. Important Notes and Restrictions • For memory to work properly, please install DIMM modules of the same type, speed and operating frequency.
  • Page 59 Chapter 5: Advanced Serverboard Setup 1 CPU, 3 DIMMs 1 CPU, 6 DIMMs 1 CPU, 9 DIMMs 1 CPU, 12 DIMMs 2 CPU, 6 DIMMs 2 CPU, 12 DIMMs 2 CPU, 16 DIMMs 2 CPU, 18 DIMMs For two CPUs and 24 DIMMs, populate all DIMM slots. 5-13...
  • Page 60: Adding Pci Add-On Cards

    TORAGE YSTEM 6047R-E1R24N User's Manual Adding PCI Add-On Cards The 6047R-E1R24N can accommodate up to four PCI add-on cards. Installing an Add-on Card 1. Begin by removing the shield for the PCI slot you wish to populate. 2. Fully seat the card into the slot, pushing down with your thumbs evenly on both sides of the card.
  • Page 61: Serverboard Details

    Jumpers not indicated are for test purposes only and should not have their settings changed. The SSG-6047R-E1R24N comes pre-installed with a Hardware RAID controller installed in PCI-E slot 1 and a JBOD expansion port installed in PCI-E slot 2. Serverboard SAS components shown in the fi gure above are not included on the X9DRi-LN4F+.
  • Page 62: X9Dri-Ln4F+ Quick Reference

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual X9DRi-LN4F+ Quick Reference Jumper Description Default Setting JBT1 Clear CMOS See Section 5-9 C1/JI SMB to PCI-E Slots Pins 2-3 (Normal) XDP (Extended Debug Port) Open (Disabled) JPB1 BMC Enable/Disbable Pins 1-2 (Enabled) JPG1...
  • Page 63 Chapter 5: Advanced Serverboard Setup (IPMI) LAN IPMI_Dedicated LAN Onboard Buzzer (Internal Speaker) USB 0/1 Back Panel USB 0/1 USB 2/3 Back Panel USB 2/3 USB 4/5, USB 6/7 Front Panel Accessible USB Connections 4/5, 6/7 USB 9 Front Panel Type A USB 6, USB 7 Ports UID Switch UID (Unit Identifi...
  • Page 64: Connector Defi Nitions

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Connector Defi nitions ATX Power 24-pin Connector Pin Defi nitions Pin# Defi nition Pin # Defi nition Power Connectors +3.3V +3.3V -12V +3.3V A 24-pin main power supply connec- tor (JPW1) and two 8-pin CPU power...
  • Page 65 Chapter 5: Advanced Serverboard Setup Power Fail LED PWR Fail LED The Power Fail LED connection is Pin Defi nitions (JF1) located on pins 5 and 6 of JF1. Re- Pin# Defi nition fer to the table on the right for pin defi...
  • Page 66 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Power On LED Power LED Pin Defi nitions (JF1) The Power On LED connector is lo- Pin# Defi nition cated on pins 15 and 16 of JF1 (use 5V Stby JLED for a 3-pin connector). This...
  • Page 67 Chapter 5: Advanced Serverboard Setup Chassis Intrusion Chassis Intrusion Pin Defi nitions The Chassis Intrusion header is des- Pin# Defi nition ignated JL1. Attach an appropriate Intrusion Input cable from the chassis to inform you Ground of a chassis intrusion when the chas- sis is opened Ethernet Ports Four Ethernet ports are located on the...
  • Page 68 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Serial Port Pin Defi nitions Serial Ports (COM1/COM2) Pin # Defi nition Pin # Defi nition Two serial ports are included on the serverboard. COM1 is a backpanel port and COM2 is a header located near the PCI-E slot 1.
  • Page 69 Chapter 5: Advanced Serverboard Setup IPMB IPMB Header Pin Defi nitions A System Management Bus header Pin# Defi nition for IPMI 2.0 is located at IPMB. Con- Data nect the appropriate cable here to Ground use the IPMB I C connection on your Clock system.
  • Page 70 Note: UID can also be triggered via IPMI. For more information on IPMI, please refer to the IPMI User's Guide posted on our Website @http://www.supermicro.com. Power SMB (I C) Connector PWR SMB Pin Defi...
  • Page 71: Jumper Settings

    Chapter 5: Advanced Serverboard Setup Jumper Settings Explanation of Jumpers To modify the operation of the serverboard, jumpers can be used Connector to choose between optional settings. Pins Jumpers create shorts between two pins to change the function of the con- nector.
  • Page 72 UPER TORAGE YSTEM 6047R-E1R24N User's Manual GLAN Enable/Disable GLAN Enable Jumper Settings JPL1 enables or disables the GLAN Jumper Setting Defi nition ports on the serverboard. See the Pins 1-2 Enabled (default) table on the right for jumper settings. Pins 2-3 Disabled The default setting is Enabled.
  • Page 73 Chapter 5: Advanced Serverboard Setup Manufacturer's Mode Jumper JPME2 allows the user to ME Mode Select Jumper Settings fl ash the system fi rmware from a host Jumper Setting Defi nition server in order to modify system set- Pins 1-2 Normal (Default) tings.
  • Page 74 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Watch Dog Enable/Disable Jumper JWD controls the Watch Dog function. Watch Dog is a sys- tem monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog...
  • Page 75: 5-10 Onboard Indicators

    Chapter 5: Advanced Serverboard Setup 5-10 Onboard Indicators LAN LEDs The Ethernet ports (located beside the JLAN1/2 LED VGA port) have two LEDs. On each (Connection Speed Indicator) port, the yellow LED fl ashes to indi- LED Color Defi nition cate activity while the other LED may NC or 10 Mbps be green, amber or off to indicate the...
  • Page 76: 5-11 Sata Ports

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual 5-11 SATA Ports Serial ATA Ports SATA Port There are six Serial ATA Ports (I- Pin Defi nitions SATA0~I-SATA 5) located on the Pin# Defi nition Defi nition serverboard, including four SATA2 Ground ports and two SATA3 ports. These...
  • Page 77: 5-12 Installing Software

    Chapter 5: Advanced Serverboard Setup 5-12 Installing Software The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO fi...
  • Page 78: Superdoctor Iii

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual SuperDoctor III The SuperDoctor® III program is a web-based management tool that supports remote management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The SuperDoctor III program allows you to monitor the environment and operations of your system.
  • Page 79: 5-13 Onboard Battery

    Chapter 5: Advanced Serverboard Setup Figure 5-7. SuperDoctor III Interface Display Screen (Remote Control) Note: The SuperDoctor III program and User’s Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/accessories/soft- ware/SuperDoctorIII.cfm. For Linux, we recommend that you use the SuperDoctor II application instead.
  • Page 80 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Notes 5-34...
  • Page 81: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform main- tenance on the SC846E16-R920B chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.
  • Page 82: Control Panel

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Figure 6-1. Front and Rear Chassis Views Control Panel Hard Drives (24) Power Supplies (2) Hardware RAID Add-on Card and JBOD Expansion Ports Optional Rear Hot-Swap Drive Bays I/O Ports PCI Expansion Slots Control Panel The control panel (located on the front of the chassis) must be connected to the JF1 connector on the serverboard to provide you with system status indications.
  • Page 83: Removing The Chassis Cover

    Chapter 6: Advanced Chassis Setup Removing the Chassis Cover Remove this screw (if necessary) Release Tab Figure 6-2. Removing the Chassis Cover Removing the Chassis Cover You may need to gain access to the inside of the server to perform various main- tenance tasks.
  • Page 84: System Fans

    Three 8-cm hot-swap chassis fans and two 8-cm exhaust fans provide the cooling for the SuperServer 6047R-E1R24N. It is very important that the chassis top cover is properly installed and making a good seal in order for the cooling air to circulate properly through the chassis and cool the components.
  • Page 85: Drive Bay Installation/Removal

    SATA Drives: You do not need to access the inside of the chassis or remove power to replace or swap SATA drives. Proceed to the next step for instructions. Note: You must use standard 1" high, drives in the SuperServer 6047R-E1R24N. DVD-ROM/Floppy Disk Drive: For installing/removing the DVD-ROM or fl oppy disk drive, you will need to gain access to the inside of the server by removing the top cover of the chassis.
  • Page 86: Sata Drive Installation

    5. Replace the drive tray into the chassis. Make sure to close the drive tray handle to lock the drive tray into place (see Figure 6-5).. Warning! Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro Web...
  • Page 87: Hard Drive Backplane

    Chapter 6: Advanced Chassis Setup Figure 6-4. Mounting a SATA Drive in a Carrier Warning: Regardless of how many hard drives are installed, all drive carriers must remain in the drive bays to maintain proper airfl ow. Figure 6-5. Installing a Drive Carrier Hard Drive Backplane The hard drives plug into a backplane that provides power, drive ID and bus termi- nation.
  • Page 88: Removing The Air Shroud

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Removing the Air Shroud Under most circumstances you will not need to remove the air shroud to perform any service on the system. However, if you need to temporarily remove it (the air shroud sould always be in place when the system is operating), please follow this procedure.
  • Page 89: Power Supply

    Chapter 6: Advanced Chassis Setup Power Supply The SuperServer 6047R-E1R24N has an 920 watt redundant power supply con- sisting of two power modules. Each power supply module has an auto-switching capability, which enables it to automatically sense and operate at a 100V - 240V input voltage.
  • Page 90: Attaching A Jbod Expansion Chassis

    Release Attaching a JBOD Expansion Chassis The SSG-6047R-E1R24N features dual JBOD expansion ports. The Figure below illustrates the recommended expansion strategy. JBOD attachment will vary de- pending on the specifi c JBOD chassis that is being connected. Please follow the instructions provided with the JBOD.
  • Page 91 Chapter 6: Advanced Chassis Setup Figure 6-8. JBOD Expansion Port 2x JBOD OUT (downstream ports) JBOD IN (upstream port) JBOD OUT (downstream port) JBOD IN (upstream port) JBOD OUT (downstream port) 6-11...
  • Page 92 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Notes 6-12...
  • Page 93: Chapter 7 Bios

    The confi guration data that determines the system parameters may be changed by entering the AMI BIOS Setup utility. This Setup utility can be accessed by pressing <F2> at the appropriate time during system boot. Note: For AMI UEFI BIOS Recovery, please refer to the UEFI BIOS Recovery User Guide posted @http://www.supermicro.com/support/manuals/.
  • Page 94: Main Setup

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Starting the Setup Utility Normally, the only visible Power-On Self-Test (POST) routine is the memory test. As the memory is being tested, press the <F2> key to enter the main menu of the AMI BIOS Setup utility. From the main menu, you can access the other setup screens.
  • Page 95: Advanced Setup Confi Gurations

    Chapter 7: BIOS Supermicro X9DR6-LN4+ SMC Version This item displays the SMC version of the BIOS ROM used in this system. SMC Build Date This item displays the date that the BIOS Setup utility was built. Memory Information Total Memory This displays the amount of memory that is available in the system.
  • Page 96 UPER TORAGE YSTEM 6047R-E1R24N User's Manual AddOn ROM Display Mode Use this item to set the display mode for the Option ROM. Select Keep Current to use the current AddOn ROM Display setting. Select Force BIOS to use the Option ROM display mode set by the system BIOS.
  • Page 97 Chapter 7: BIOS CPU Confi guration This submenu displays the information of the CPU as detected by the BIOS. It also allows the user to confi guration CPU settings.  Socket 0 CPU Information This submenu displays the following information regarding the CPU installed in Socket 0.
  • Page 98 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Clock Spread Spectrum Select Enable to enable Clock Spectrum support, which will allow the BIOS to moni- tor and attempt to reduce the level of Electromagnetic Interference caused by the components whenever needed. The options are Disabled and Enabled.
  • Page 99 Chapter 7: BIOS based on the specifi cations of the application running in the system at the time. The options are Disabled and Enabled. Intel® Virtualization Technology (Available when supported by the CPU) Select Enabled to support Intel Virtualization Technology, which will allow one platform to run multiple operating systems and applications in independent parti- tions, creating multiple "virtual"...
  • Page 100 UPER TORAGE YSTEM 6047R-E1R24N User's Manual CPU C3 Report Select Enabled to allow the BIOS to report the CPU C3 State (ACPI C2) to the operating system. During the CPU C3 State, the CPU clock generator is turned off. The options are Enabled and Disabled.
  • Page 101 Chapter 7: BIOS Chipset Confi guration North Bridge Confi guration This feature allows the user to confi gure the settings for the Intel North Bridge. Intergraded IO Confi guration Intel VT-d Select Enabled to enable Intel Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to the VMM (Virtual Working Memory) through the DMAR ACPI Tables.
  • Page 102 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Port 1B Link Speed Select GEN1 to enable PCI-Exp Generation 1 support for Port 1B. Select GEN2 to enable PCI-Exp Generation 2 support for Port 1B. Select GEN3 to enable PCI-Exp Generation 3 support for Port 1B. The options are GEN1, GEN2 and GEN3.
  • Page 103 Chapter 7: BIOS Up Tx Preset This feature allows the user to select the preset setting for a upstream component transmitter. The options are P0 (-6.0/0.0 dB), P1 (-3.5/0.0 dB), P2 (-4.5/0.0 dB), P3 (-2.5/0.0 dB), P4 (0.0/0.0 dB), P5 (0.0/-2.0 dB), P6 (0.0/-2.5 dB), P7 (-6.0/-3.5 dB), P8 (-3.5/-3.5 dB), P9 (0.0/-3.5 dB), and Auto.
  • Page 104 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Isoc Select Enabled to enable Ischronous support to meet QoS (Quality of Service) requirements. This feature is especially important for virtualization technology. The options are Disabled and Enabled. QPI (Quick Path Interconnect) Link Speed Mode Use this feature to select data transfer speed for QPI Link connections.
  • Page 105 Chapter 7: BIOS Memory Mode When Independent is selected, all DIMMs are available to the operating system. When Mirroring is selected, the motherboard maintains two identical copies of all data in memory for data backup. When Lockstep is selected, the motherboard uses two areas of memory to run the same set of operations in parallel.
  • Page 106 UPER TORAGE YSTEM 6047R-E1R24N User's Manual DRAM RAPL This item allows the user to select the average power limit setting when a DRAM module is in operation. The options are Disabled, Mode 0, and Mode 1. Device Tagging Select Enabled to support device tagging. The options are Disabled and En- abled.
  • Page 107 Chapter 7: BIOS Legacy USB Support (Available when USB Functions is not Disabled) Select Enabled to support legacy USB devices. Select Auto to disable legacy sup- port if USB devices are not present. Select Disable to have USB devices available for EFI (Extensive Firmware Interface) applications only.
  • Page 108 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Aggressive Link Power Management Select Enabled to enable Aggressive Link Power Management support for Cougar Point B0 stepping and beyond. The options are Enabled and Disabled. Port 0~5 Hot Plug Select Enabled to enable hot-plug support for a particular port, which will allow the user to change a hardware component or device without shutting down the system.
  • Page 109 Chapter 7: BIOS Thermal Confi guration Thermal Management Select Enabled to initialize the PCH Thermal subsystem device located at D31:F6. The options are Enabled and Disabled. ME SMBus Thermal Reporting Select Enabled to support ME SMBus (System Management Bus) reporting. The options are Enabled and Disabled.
  • Page 110 UPER TORAGE YSTEM 6047R-E1R24N User's Manual PERR# Generation Select Enabled to allow a PCI device to generate a PERR number for a PCI Bus Signal Error Event. The options are Enabled and Disabled. SERR# Generation Select Enabled to allow a PCI device to generate an SERR number for a PCI Bus Signal Error Event.
  • Page 111 Chapter 7: BIOS Option ROM is Enabled, and the default settings for LAN2 Option ROM~LAN4 Option ROM are Disabled. VGA Priority This feature allows the user to select the graphics adapter to be used as the primary boot device. The options are Onboard VGA, and Add-on VGA. Network Stack Select Enabled enable PXE (Preboot Execution Environment) or UEFI (Unifi...
  • Page 112 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Console Redirection Settings This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user. Terminal Type This feature allows the user to select the target terminal emulation type for Con- sole Redirection.
  • Page 113 Chapter 7: BIOS VT-UTF8 Combo Key Support Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Enabled and Disabled. Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server.
  • Page 114 UPER TORAGE YSTEM 6047R-E1R24N User's Manual TPM State Select Enabled to enable TPM security settings to improve data integrity and network security. The options are Disabled and Enabled. Pending Operation: This item displays the status of a pending operation. Current Status Information: This item displays the information regarding the current TPM status.
  • Page 115: Event Logs

    Chapter 7: BIOS TPM Support: Trusted Platform support TPM State: Trusted Platform state Intel ME Subsystem Confi guration This feature displays the following ME Subsystem Confi guration settings. • ME BIOS Interface Version • ME Version iSCSI: This item displays the following iSCSI information: iSCSI Initiation Name: This item displays the name of the iSCSI Initiator, which is a unique name used in the world.
  • Page 116 UPER TORAGE YSTEM 6047R-E1R24N User's Manual  Change SMBIOS Event Log Settings This feature allows the user to confi gure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot. The options are Enabled and Disabled.
  • Page 117 Chapter 7: BIOS METW (Multiple Event Count Time Window) This item allows the user to decide how long (in minutes) should the multiple event counter wait before generating a new event log. Enter a number between 0 to 99. The default setting is 60. View SMBIOS Event Log This item allows the user to view the event in the SMBIOS event log.
  • Page 118: Ipmi

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual IPMI Use this feature to confi gure Intelligent Platform Management Interface (IPMI) settings. IPMI Firmware Revision This item indicates the IPMI fi rmware revision used in your system. IPMI Status This item indicates the status of the IPMI fi rmware installed in your system.
  • Page 119 Chapter 7: BIOS When SEL is Full This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately. Customize EFI Logging Options Log EFI Status Codes Select Enabled to log EFI (Extensible Firmware Interface) Status Codes, Error...
  • Page 120: Boot

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Boot This submenu allows the user to confi gure the following boot settings for the system. Boot Option Priorities Boot Option #1 This item allows the user to select the fi rst boot drive. Select a LAN device to boot the system from the network connection.
  • Page 121: Security

    Chapter 7: BIOS Security This menu allows the user to confi gure the following security settings for the system. Administrator Password Use this feature to set the Administrator Password which is required to enter the BIOS setup utility. The length of the password should be from 3-character long to 8-character long.
  • Page 122: Save & Exit

    UPER TORAGE YSTEM 6047R-E1R24N User's Manual Save & Exit This submenu allows the user to confi gure the Save and Exit settings for the system. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system confi...
  • Page 123 Chapter 7: BIOS Discard Changes Select this feature and press <Enter> to discard all the changes and return to the BIOS setup. When the dialog box appears, asking you if you want to load previ- ous values, click Yes to load the values previous saved, or click No to keep the changes you've made so far.
  • Page 124 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Notes 7-32...
  • Page 125: Appendix A Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed at each system boot, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue to boot.
  • Page 126 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Notes...
  • Page 127: Appendix B System Specifi Cations

    Appendix B: System Specifi cations Appendix B System Specifi cations Processors Single or dual Intel® Xeon E5-2600 Series processors Note: Please refer to our web site for a complete listing of supported processors. Chipset Intel C600 chipset BIOS 32 Mb AMI® SPI Flash ROM Memory Capacity Twenty-four DIMM sockets supporting up to 768 GB of ECC registered (RDRIMM)/Load Reduced (LRDIMM) or up to 128 GB of unbuffered (UDIMM)
  • Page 128 UPER TORAGE YSTEM 6047R-E1R24N User's Manual Chassis SC846E-R920B, 4U rackmount Dimensions: (WxHxD) 17.2 x 7 x 26 in. (437 x 178 x 660 mm) Weight Gross (Bare Bone): 78 lbs. (35.5 kg.) System Cooling Three 8-cm system fans Two 8-cm exhaust fans...
  • Page 129 Appendix B: System Specifi cations Regulatory Compliance Electromagnetic Emissions: FCC Class A, EN 55022 Class A, EN 61000-3-2/-3-3, CISPR 22 Class A Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11) Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and Canada), CE Marking (Europe) California Best Management Practices Regulations for Perchlorate Materials:...
  • Page 130 YSTEM 6047R-E1R24N User's Manual (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in signifi...

Table of Contents
