Supero SUPERSTORAGE 6027R-E1CR12L User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

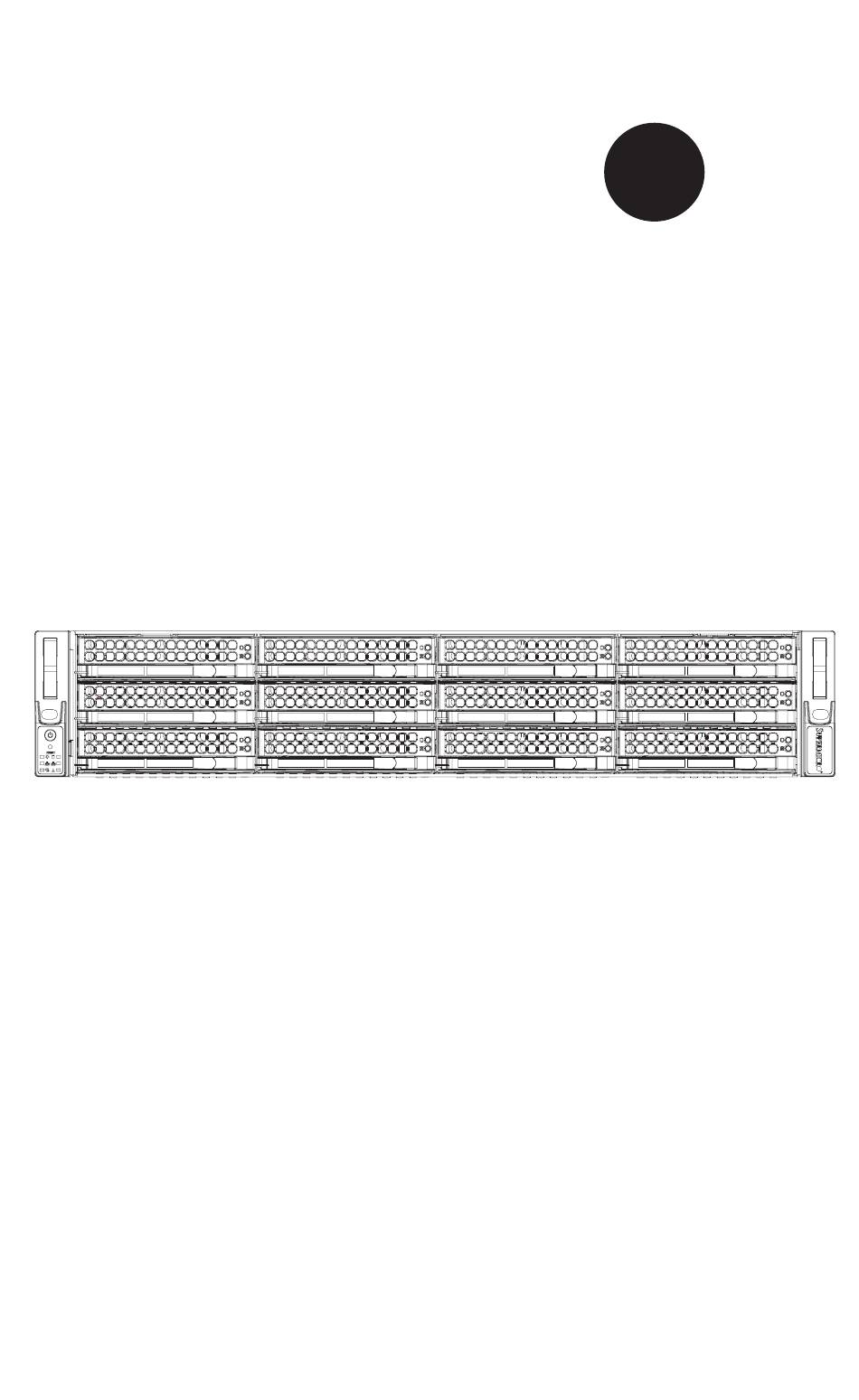

S
UPER
®
S
S
S
UPER
TORAGE
YSTEM
6027R-E1CR12L
USER'S MANUAL
1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPERSTORAGE 6027R-E1CR12L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supero SUPERSTORAGE 6027R-E1CR12L

Summary of Contents for Supero SUPERSTORAGE 6027R-E1CR12L

  • Page 1 UPER ® UPER TORAGE YSTEM 6027R-E1CR12L USER’S MANUAL...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.
  • Page 3 Preface Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the 6027R-E1CR12L. Installation and maintainance should be performed by experienced technicians only. The 6027R-E1CR12L is a high-end storage system based on the SC826BE1C- R920LPB 2U rackmountable chassis and the X9DRD-EF dual processor serverboard.
  • Page 4 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the X9DRD-EF serverboard, including the locations and functions of connections, headers and jumpers. Refer to this chapter when adding or removing processors or main memory and when reconfig- uring the serverboard.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 SATA ........................ 1-2 I/O Ports ......................1-2 PCI Expansion Slots ..................1-2 Onboard Graphics ................... 1-2 Server Chassis Features ................
  • Page 7 Table of Contents Power ......................3-1 Control Panel LEDs ..................3-2 Power Fail ....................... 3-2 Overheat/Fan Fail: ..................3-2 NIC1 ........................ 3-2 NIC2 ........................ 3-2 HDD ......................... 3-3 Power ......................3-3 Drive Carrier LEDs ..................3-3 Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............
  • Page 8 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Adding Add-on Cards ..................5-11 Serverboard Details ..................5-12 X9DRD-EF Quick Reference ................ 5-12 Connector Definitions ..................5-14 Jumper Settings .................... 5-21 5-10 Onboard Indicators ..................5-23 5-11 SATA Drive Ports ................... 5-24 5-12 Installing Drivers .................... 5-25 SuperDoctor III ....................

  • Page 9: Chapter 1 Introduction

    Chapter 1: Introduction Chapter 1 Introduction Overview The 6027R-E1CR12L is a high-end storage system comprised of two main subsys- tems: the SC826BE1C-R920LPB 2U/rack mount chassis and the X9DRD-EF dual processor serverboard. Please refer to our web site for information on operating systems that have been certified for use with the system (www.supermicro.com).

  • Page 10: Serverboard Features

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Serverboard Features The 6047R-E1R36L is built around the X9DRD-EF, a dual processor serverboard based on Intel's C602J chipset. Below are the main features of the X9DRD-EF (see Figure 1-1 for a block diagram of the chipset). Processors The X9DRD-EF supports single or dual Intel ®...

  • Page 11: Server Chassis Features

    Chapter 1: Introduction Server Chassis Features The SC826BE1C-R920LPB is an 2U form factor chassis designed to be used in a storage configuration. The following is a general outline of the main features of the SC826BE1C-R920LPB chassis. System Power The SC826BE1C-R920LPB features a redundant 920W power supply composed of two separate power modules.
  • Page 12 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Figure 1-1. Intel C602J Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. (AB) (AB) (CD) CPU REAR Socket 01 PROCESSOR SANDYBRIDGE CPU FRONT Socket 00 PROCESSOR SANDYBRIDGE (AB)
  • Page 13 Chapter 1: Introduction Figure 1-2. X9DRD-EF Serverboard VGA1 LAN2 LAN1 USB2/3 USB0/1 JUIDB COM2 COM1 JPW4 CTRL IPMI_LAN FAN8 FAN7 CPU2 CPU2 JBAT1 JBT1 Battery CMOS CLEAR Intel JUSB6 X9DRD-EF BIOS Rev. 1.02 JPW3 CPU1 CPU2 JPW2 BUZZER LED2 JPW1 FAN4 FAN3 FAN2...

  • Page 14: Contacting Supermicro

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 15: Chapter 2 Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation Overview This chapter provides a quick setup checklist to get your 6027R-E1CR12L up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time. This quick setup assumes that your system has come to you with the processors and memory preinstalled.

  • Page 16: Rack Precautions

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual • This product is for installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like). • This product is not suitable for use with visual display work place devices acccording to §2 of the the German Ordinance for Work with Visual Display Units.

  • Page 17: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).

  • Page 18: Installing The System Into A Rack

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Installing the System into a Rack This section provides information on installing the SC826 chassis into a rack unit with the quick-release rails provided. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly.
  • Page 19 Chapter 2: Server Installation Figure 2-1: Separating the Rack Rails Separating the Inner and Outer Rails Rail Assembly SCREW 1. Locate the rail assembly in the chassis packaging. Extending the Rails 2. Extend the rail assembly by pulling it outward. 3.

  • Page 20: Outer Rack Rails

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual SCREW screw the handles the outer rails for secure purpose if necessary Figure 2-2. Assembling the Outer Rails Outer Rack Rails Outer rails attach to the rack and hold the chassis in place. The outer rails for the SC826 chassis extend between 30 inches and 33 inches.
  • Page 21 Chapter 2: Server Installation SCREW Figure 2-3. Installing the Rack Rails Installing the Chassis into a Rack Note: do not pick up the server with the front handles. They are designed to pull the system from a rack only. 1. Extend the outer rails as illustrated above. 2.
  • Page 22 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Notes...

  • Page 23: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the drive carri- ers to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.

  • Page 24: Control Panel Leds

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Control Panel LEDs The control panel located on the front of the chassis has several LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 25: Hdd

    Chapter 3: System Interface On the 6027R-E1CR12L, this LED indicates hard drive activity when flashing. Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating. Drive Carrier LEDs Each drive carrier has two LEDs: •...
  • Page 26 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Notes...

  • Page 27: About Standardized Warning Statements

    Chapter 4: Warning Statements for AC Systems Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance.
  • Page 28 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 29 Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬ ‫ل‬ ‫الىقائٍة‬...

  • Page 30: Installation Instructions

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 31: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 32: Power Disconnection Warning

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 33 Chapter 4: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 34: Equipment Installation

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 35: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 36: Battery Handling

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬ ‫فقط‬...
  • Page 37 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 38: Redundant Power Supplies

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben.

  • Page 39: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 40: Comply With Local And National Electrical Codes

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما...

  • Page 41: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...

  • Page 42: Hot Swap Fan Warning

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 43 Chapter 4: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 44: Power Cable And Ac Adapter

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Power Cable and AC Adapter Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only.
  • Page 45 Chapter 4: Warning Statements for AC Systems Attention Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné. L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué...
  • Page 46 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Notes 4-20...

  • Page 47: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install processors and heatsinks to the X9DRD-EF serverboard, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are described and a layout and quick reference chart are included in this chapter.

  • Page 48: Processor And Heatsink Installation

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Processor and Heatsink Installation Notes: • Always connect the power cord last and always remove it before adding, re- moving or changing any hardware components. Make sure that you install the processor into the CPU socket before you install the CPU heatsink. •...
  • Page 49 Chapter 5: Advanced Serverboard Setup 3. With the lever labeled 'Close 1st' fully retracted, gently push down on the 'Open 1st' lever to open the load plate. Lift the load plate to open it completely. Gently push 4. Using your thumb and the index down to pop the load plate finger, remove the 'WARNING'...
  • Page 50 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Warning: You can only install the CPU to the socket in one direction. Make sure that the CPU is properly inserted into the socket before closing the load plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the load plate again and double-check that the CPU is aligned properly.

  • Page 51: Installing A Passive Cpu Heatsink

    Chapter 5: Advanced Serverboard Setup Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the re- quired amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the serverboard and the heatsink bracket underneath.

  • Page 52: Connecting Cables

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Connecting Cables Now that the processors are installed, the next step is to connect the cables to the serverboard. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The cables used to transfer data from the peripheral devices have been carefully routed in preconfigured systems to prevent them from blocking the flow of cooling...

  • Page 53: I/O Ports

    Chapter 5: Advanced Serverboard Setup All JF1 wires have been bundled into single keyed ribbon cable to simplify their con- nection. Connect one end of this cable to JF1 and the other end to the Control Panel printed circuit board, located just behind the system status LEDs in the chassis. See the Connector Definitions section in this chapter for details and pin descrip- tions of JF1.

  • Page 54: Installing Memory

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Installing Memory Note: Check the Supermicro web site for recommended memory modules. CAUTION Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Installing DIMMs 1. Insert the desired number of DIMMs into the memory slots, starting with slots DIMM1A.
  • Page 55 Chapter 5: Advanced Serverboard Setup Processor & Memory Module Population Configuration For memory to work properly, follow the tables below for memory installation. Processors and their Corresponding Memory Modules CPU# Corresponding DIMM Modules CPU 1 DIMMA1 DIMMB1 DIMMC1 DIMMD1 DIMMA2 DIMMB2 DIMMC2 DIMMD2...
  • Page 56 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Intel E5-2600 Series Processor UDIMM Memory Support Ranks Per Memory Capacity Speed (MT/s) and Voltage Validated by Slot per Channel DIMM & Per DIMM (SPC) and DIMM Per Channel (DPC) Data Width 1 Slot Per Channel 2 Slots Per Channel (See the Note below) 1DPC...

  • Page 57: Adding Add-On Cards

    Chapter 5: Advanced Serverboard Setup Intel E5-2600 Series Processor LRDIMM Memory Support Ranks Per Memory Capacity Speed (MT/s) and Voltage Validated DIMM & Data Per DIMM by Slot per Channel (SPC) and Width DIMM Per Channel (DPC) 1 Slot Per 2 Slots Per (See the Note Channel...

  • Page 58: Serverboard Details

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Serverboard Details Figure 5-5. SUPER X9DRD-EF Layout VGA1 LAN2 USB2/3 LAN1 USB0/1 JUIDB COM2 COM1 JPW4 CTRL IPMI_LAN FAN8 FAN7 CPU2 CPU2 JBAT1 JBT1 Battery CMOS CLEAR Intel JUSB6 X9DRD-EF BIOS Rev. 1.02 JPW3 CPU1 CPU2 JPW2...
  • Page 59 Chapter 5: Advanced Serverboard Setup Jumper Description Default Setting JBT1 Clear CMOS See Section 5-9 C1/JI SMB to PCI-E Slots Open (Disabled) JPB1 BMC Enable/Disable Pins 1-2 (Enabled) JPG1 VGA Enable/Disable Pins 1-2 (Enabled) JPL1 GLAN1/GLAN2 Enable/Disable Pins 1-2 (Enabled) JWD1 Watch Dog Timer Enable/Disable Pins 1-2 (Reset)

  • Page 60: Connector Definitions

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Connector Definitions ATX Power 24-pin Connector Pin Definitions (JPW1) Pin# Definition Pin # Definition Power Connectors +3.3V +3.3V A 24-pin main power supply connector -12V +3.3V (JPW1), two 8-pin CPU power con- nectors (JPW2/3) and one 4-pin power PS_ON connectors (JPW5) are located on the serverboard.
  • Page 61 Chapter 5: Advanced Serverboard Setup NIC1/NIC2 LED Indicators NIC1/2 LED Pin Definitions (JF1) The NIC (Network Interface Controller) Pin# Definition LED connection for LAN port 1 is located on pins 11 and 12 of JF1, and the LED NIC 2 LED connection for LAN Port 2 is on pins 9 and 10.
  • Page 62 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Power Button The Power Button connection is located on pins 1 and 2 of JF1. Momentarily Power Button contacting both pins will power on/off the Pin Definitions (JF1) system. This button can also be config- Pin# Definition ured to function as a suspend button (with...
  • Page 63 Chapter 5: Advanced Serverboard Setup LAN Port Pin Definitions Ethernet Ports Pin# Definition Two Ethernet ports (LAN1/LAN2) are TD0+ located next to the VGA port on the I/O Vcc19-LAN back panel. An IPMI Dedicated LAN port TD3+ Link 100 LED is also located above the USB0/1 ports.
  • Page 64 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Fan Headers The X9DRD-EF has eight fan headers (Fan1 ~ Fan8). These are all 4-pin fan headers, however pins 1-3 are backward Fan Header compatible with traditional 3-pin fans. Pin Definitions A fan speed control setting in the BIOS Pin# Definition (Hardware Monitoring section) allows...
  • Page 65 Chapter 5: Advanced Serverboard Setup TPM/Port 80 Header Pin Definitions Trusted Platform Module Header Pin # Definition Pin # Definition The JTPM1 header is used to connect a LCLK Trusted Platform Module (TPM), available LFRAME# <(KEY)> separately from a third-party vendor. A LRESET# +5V (X) TPM is a security device that allows en-...
  • Page 66 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual T-SGPIO 1/2 Headers Two T-SGPIO (Serial-Link General Serial Link SGPIO Pin Definitions Purpose Input/Output) headers are Pin# Definition Definition located near the SATA connectors on the serverboard. These headers are Ground DATA Out used to communicate with the enclosure Load Ground management chip in the system.

  • Page 67: Jumper Settings

    Chapter 5: Advanced Serverboard Setup Jumper Settings Explanation of Jumpers To modify the operation of the serverboard, jumpers can be used to choose between Connector optional settings. Jumpers create shorts Pins between two pins to change the function of the connector. Pin 1 is identified with Jumper a square solder pad on the printed circuit board.
  • Page 68 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual PCI Slot SMB Enable PCI Slot SMB Enable/Disable Use Jumpers JI C1/JI C2 to enable PCI Jumper Settings SMB (System Management Bus) support Jumper Setting Definition to improve system management for the Closed Enabled PCI slots.

  • Page 69: 5-10 Onboard Indicators

    Chapter 5: Advanced Serverboard Setup 5-10 Onboard Indicators LAN1/LAN2 LEDs LAN LED Each Ethernet port has two LEDs. The Connection Speed Indicator yellow LED indicates activity when blink- LED State Definition ing while the other LED may be green, No connection or 10 Mb/s amber or off to indicate the speed of the Green 100 Mb/s...

  • Page 70: 5-11 Sata Drive Ports

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual 5-11 SATA Drive Ports SATA Port Pin Definitions (SATA0 ~ SATA5) Pin # Definition SATA Ports Ground There are four SATA 2.0 (SATA2~SATA5) and two SATA 3.0 (SATA0-1) ports lo- cated on the X9DRD-EF. ISee the table Ground on the right for pin definitions.

  • Page 71: 5-12 Installing Drivers

    Chapter 5: Advanced Serverboard Setup 5-12 Installing Drivers After all the hardware and operating system have been installed, you need to install certain drivers. The necessary drivers are all included on the Supermicro CD that came packaged with your serverboard. After inserting this CD into your CD-ROM drive, the display shown in Figure 5-6 should appear.

  • Page 72: Superdoctor Iii

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual SuperDoctor III The SuperDoctor ® III program is a Web base management tool that supports remote management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The SuperDoctor III program included on the CD-ROM that came with your serverboard allows you to monitor the environment and operations of your system.
  • Page 73 Chapter 5: Advanced Serverboard Setup SuperDoctor III Interface Display Screen (Remote Control) Note: The SuperDoctor III program and User's Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/accessories/software/ SuperDoctorIII.cfm. For Linux, we recommend using SuperDoctor II. 5-27...
  • Page 74 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Notes 5-28...

  • Page 75: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform main- tenance on the SC826BE1C-R920LPB chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 76: Control Panel

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Figure 6-1. Front and Rear Chassis Views Control Panel SATA Drives (12) Note: numbers above indicate the logical drive locations (drive map). Power Supplies 5 Low-profile PCI Slots I/O Ports Optional Drive Bays (2) JBOD Expansion Port Control Panel The control panel (located on the front of the chassis) must be connected to the...

  • Page 77: System Fans

    Chapter 6: Advanced Chassis Setup Figure 6-2. Removing the Chassis Cover System Fans Three 8-cm hot-swap fans provide the cooling for the system. It is very important that the chassis top cover is properly installed and making a good seal in order for the cooling air to circulate properly through the chassis and cool the components.

  • Page 78: Replacing System Fans

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Replacing System Fans 1. If necessary, open the chassis while the power is running to determine which fan requires changing. (Never run the server for an extended period of time with the chassis open.) 2.

  • Page 79: Air Shroud

    Chapter 6: Advanced Chassis Setup Air Shroud Air shrouds concentrate airflow to maximize fan efficiency. The SC826 chassis air shroud does not require screws to set up. Installing the Air Shroud 1. Lay the chassis on a flat, stable surface and remove the chassis cover. 2.

  • Page 80: Drive Bay Installation/Removal

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Drive Bay Installation/Removal Accessing the Drive Bays You do not need to access the inside of the chassis or remove power to replace or swap SATA drives. Proceed to the next step for instructions. Note: Refer to the following ftp site for setup guidelines: <ftp://ftp.supermicro.com/ driver/SAS/LSI/LSI_SAS_EmbMRAID_SWUG.pdf>...
  • Page 81 Chapter 6: Advanced Chassis Setup Figure 6-5. Removing a Hard Drive Carrier Caution: Regardless of how many hard drives are installed, all drive carriers must remain in the drive bays to maintain proper airflow.

  • Page 82: Hard Drive Backplane

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Figure 6-6. Mounting a Drive in a Carrier Hard Drive Backplane The hard drives plug into a backplane that provides power, drive ID and bus termi- nation. A RAID controller can be used with the backplane to provide data security. The operating system you use must have RAID support to enable the hot-swap capability of the hard drives.

  • Page 83: Power Supply

    Chapter 6: Advanced Chassis Setup Power Supply The 6027R-E1CR12L has a 920 watt redundant power supply consisting of two power modules. Each power supply module has an auto-switching capability, which enables it to automatically sense and operate at a 100V - 240V input voltage. Power Supply Failure An amber light will be illuminated on the power supply when the power is off.
  • Page 84 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Figure 6-8. Removing the Power Supply Release Tab 6-10...

  • Page 85: Attaching A Jbod Expansion Chassis

    Chapter 6: Advanced Chassis Setup Attaching a JBOD Expansion Chassis The SSG-6027R-E1CR12L features a single JBOD expansion port. The JBOD at- tachment will vary depending on the specific JBOD chassis that is being connected. The JBOD image below is provided for illustrative purposes only; port location and routing specifications are subject to change.
  • Page 86 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Notes 6-12...

  • Page 87: Chapter 7 Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMI BIOS Setup utility for the X9DRD-EF. It also provides the instructions on how to navigate the AMI BIOS Setup utility screens. The AMI ROM BIOS is stored in a Flash EEPROM and can be easily updated. Starting BIOS Setup Utility To enter the AMI BIOS Setup utility screens, press the <Del>...

  • Page 88: Main Setup

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual How To Change the Configuration Data The configuration data that determines the system parameters may be changed by entering the AMI BIOS Setup utility. This Setup utility can be accessed by pressing <Delete> at the appropriate time during system boot. Note: For AMI UEFI BIOS Recovery, please refer to the UEFI BIOS Re- covery User Guide posted @http://www.supermicro.com/support/manuals/.
  • Page 89 Chapter 7: BIOS The AMI BIOS Main menu displays the following information: System Date/System Time Use this option to change the system time and date. Highlight System Time or System Date using the arrow keys. Enter new values through the keyboard and press <Enter>.

  • Page 90: Advanced Setup Configurations

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Advanced Setup Configurations Select the Advanced tab to access the following submenu items. Boot Feature Quiet Boot This feature allows the user to select bootup screen display between POST mes- sages and the OEM logo. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages.
  • Page 91 Chapter 7: BIOS at bootup and allow the drives that are attached to these host adaptors to function as bootable disks. If this item is set to Disabled, the ROM BIOS of the host adap- tors will not capture Interrupt 19, and the drives attached to these adaptors will not function as bootable devices.
  • Page 92 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual • Processor Cores • Intel HT (Hyper-Threading) Technology • Intel VT-x Technology • Intel SMX Technology • L1 Data Cache / L1 Code Cache • L2 Cache • L3 Cache CPU Speed This item displays the speed of the CPU installed in Socket 1/Socket 2. 64-bit This item indicates if the CPU installed in Socket 1 or Socket 2 supports 64-bit technology.
  • Page 93 Chapter 7: BIOS Execute-Disable Bit (Available if supported by the OS & the CPU) Select Enabled to enable the Execute Disable Bit which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to overwhelm the processor or damage the system during an attack.
  • Page 94 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual  CPU Power Management Configuration This submenu allows the user to configure the following CPU Power Manage- ment settings. Power Technology Select Energy Efficiency to support power-saving mode. Select Custom to cus- tomize system power settings. Select Disabled to disable power-saving settings. The options are Disabled, Energy Efficient, and Custom.
  • Page 95 Chapter 7: BIOS Package C-State limit (Available when Power Technology is set to Custom) This feature allows the user to set the limit on the C-State package register. The options are C0, C2, C6, and No Limit. Energy/Performance Bias Use this feature to select an appropriate fan setting to achieve maximum system performance (with maximum cooling) or maximum energy efficiency with maxi- mum power saving).
  • Page 96 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Chipset Configuration North Bridge This feature allows the user to configure the settings for the Intel North Bridge. Integrated IO Configuration Intel VT-d ® Select Enabled to enable Intel Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to the VMM (Virtual Machine Monitor) through the DMAR ACPI Tables.
  • Page 97 Chapter 7: BIOS CPU2 Slot3 PCI-E 3.0 x8 Link Speed/CPU2 Slot4 PCI-E 3.0 x8 Link Speed/CPU2 Slot5 PCI-E 3.0 x8 Link Speed Select GEN1 for the device installed on the slot specified to support PCI-Exp Generation 1. Select GEN2 for the device installed on the slot specified to support PCI-Exp Generation 2.
  • Page 98 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Sparing (Available when supported by the motherboard) Memory sparing enhances system reliability, availability, and serviceability.  DIMM Information CPU Socket 1 DIMM Information, CPU Socket 2 DIMM Information The status of the memory modules detected by the BIOS will be displayed as detected by the BIOS.
  • Page 99 Chapter 7: BIOS Demand Scrub Demand Scrubbing is a process that allows the CPU to correct correctable memory errors found on a memory module. When the CPU or I/O issues a demand-read command, and the read data from memory turns out to be a correctable error, the error is corrected and sent to the requestor (the original source).
  • Page 100 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Legacy USB Support (Available when USB Functions is not Disabled) Select Enabled to support legacy USB devices. Select Auto to disable legacy sup- port if USB devices are not present. Select Disabled to have USB devices available for EFI (Extensive Firmware Interface) applications only.
  • Page 101 Chapter 7: BIOS AHCI Mode The following items are displayed when the AHCI Mode is selected. Aggressive Link Power Management When Enabled, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link in a low power mode during extended periods of I/O inactivity, and will return the link to an active state when I/O activity resumes.
  • Page 102 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual PERR# Generation Select Enabled to allow a PCI device to generate a PERR number for a PCI Bus Signal Error Event. The options are Enabled and Disabled. SERR# Generation Select Enabled to allow a PCI device to generate an SERR number for a PCI Bus Signal Error Event.
  • Page 103 Chapter 7: BIOS VGA Priority This feature allows the user to select the graphics adapter to be used as the primary boot device. The options are Onboard, and Offboard. Network Stack Select Enabled enable PXE (Preboot Execution Environment) or UEFI (Unified Extensible Firmware Interface) for network stack support.
  • Page 104 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Change Settings This option specifies the base I/O port address and the Interrupt Request address of Serial Port 2. Select Disabled to prevent the serial port from accessing any system resources. When this option is set to Disabled, the serial port becomes unavailable. The options are Auto, IO=3F8h;...
  • Page 105 Chapter 7: BIOS Bits Per second Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines.
  • Page 106 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Legacy OS Redirection Resolution Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25. Putty KeyPad This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS.
  • Page 107 Chapter 7: BIOS Bits Per Second This item sets the transmission speed for a serial port used in Console Redirec- tion. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).
  • Page 108 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Trusted Computing (Available when a TPM device is detected by the BIOS) Configuration TPM Support Select Enabled on this item and enable the TPM jumper on the motherboard to enable TPM support to improve data integrity and network security. The options are Enabled and Disabled.
  • Page 109 Chapter 7: BIOS Chipset: TXT (Trusted Execution Technology) Feature Intel TXT (LT-SX) Configuration This feature displays the following TXT configuration setting. TXT (LT-SX) Support: This item indicates if the Intel TXT support is enabled or disabled. The default setting is Disabled. Intel TXT (LT-SX) Dependencies This feature displays the features that need to be enabled for the Intel Trusted Execution Technology to work properly in the system.
  • Page 110 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Intel Ethernet Controller I350 Gigabit Network Connection: These items display ® the following information on the Intel I350 Gigabit network connections. NIC Configuration Link Speed Use this feature to change the link speed and duplex for the current port. The op- tions are AutoNeg, 10Mbps Half, 10Mbps Full, 100Mbps Half, and 100Mbps full.

  • Page 111: Event Logs

    Chapter 7: BIOS Event Logs Select the Event Logs tab to access the following submenu items. Change SMBIOS Event Log Settings  This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 112 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Erasing Settings Erase Event Log Select Enabled to erase the SMBIOS (System Management BIOS) Event Log, which is completed before a event logging is initialized upon system reboot. The options are No, Yes, Next reset, and Yes, Every reset. When Log is Full Select Erase Immediately to immediately erase SMBIOS error event logs that ex- ceed the limit when the SMBIOS event log is full.

  • Page 113: Ipmi

    Chapter 7: BIOS IPMI Select the IPMI (Intelligent Platform Management Interface) tab to access the fol- lowing submenu items. IPMI Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status This item indicates the status of the IPMI firmware installed in your system. System Event Log ...
  • Page 114 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual When SEL is Full This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full.

  • Page 115: Boot

    Chapter 7: BIOS Gateway IP Address This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253). Boot This submenu allows the user to configure the following boot settings for the system.

  • Page 116: Security

    UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Security This menu allows the user to configure the following security settings for the system. Password Check Use this feature to determine when a password entry is required. Select Setup to require the password only when entering setup. Select Always to require the pass- word when entering setup and on each boot.

  • Page 117: Save & Exit

    Chapter 7: BIOS Save & Exit This submenu allows the user to configure the Save and Exit settings for the system. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer. Select Discard Changes and Exit, and press <Enter>.
  • Page 118 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Discard Changes Select this feature and press <Enter> to discard all the changes and return to the BIOS setup. When the dialog box appears, asking you if you want to load previ- ous values, select Yes to load the values previous saved, or select No to keep the changes you've made so far.

  • Page 119: Appendix A Bios Error Beep Codes

    Appendix A: BIOS POST Error Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed at each system boot, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue to boot.
  • Page 120 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Notes...

  • Page 121: Appendix B System Specifications

    Appendix B: System Specifications Appendix B System Specifications Processors Dual Intel ® Xeon ® E5-2600 Series processors in LGA 2011 sockets Note: Please refer to our web site for a complete listing of supported processors. Chipset Intel C602J Memory Capacity Sixteen DIMM sockets that can support up to 512 GB of registered (RDIMM), 1 TB of Load Reduced (LRDIMM) or 128 GB of ECC or Unbuffered (UDIMM) ECC/non-ECC 1866/1600/1333/1066/800 DDR3 memory...
  • Page 122 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Weight Gross Weight: 52 lbs. (23.6 kg.) System Cooling Three 8-cm system cooling fans System Input Requirements AC Input Voltage: 100 - 240V AC auto-range Rated Input Current: 10.7 - 4.2A max Power Supply Rated Output Power: 920W (Part# PWS-920P-1R) Rated Output Voltages: +12V (75A), +5Vsb (4A) Operating Environment...
  • Page 123 Appendix B: System Specifications Disclaimer (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
  • Page 124 UPER TORAGE YSTEM 6027R-E1CR12L User's Manual Notes...
