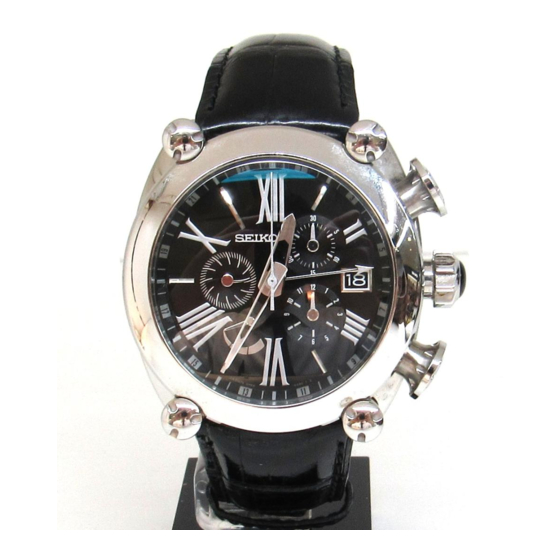

Seiko 5R86 Instructions Manual

Seiko 5R86 Instructions Manual

Spring drive watch
Hide thumbs Also See for 5R86:

Advertisement

Quick Links

INSTRUCTIONS
BEDIENUNGSANLEITUNG
INSTRUCTIONS
ISTRUZIONI
INSTRUCCIONES
INSTRUÇÕES
Cal. 5R86
(P.
3)
(S. 31)
(P. 59)
(P. 87)
(P. 115)
(P. 143)
(171
)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5R86 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Seiko 5R86

  • Page 1 Cal. 5R86 INSTRUCTIONS (P. BEDIENUNGSANLEITUNG (S. 31) INSTRUCTIONS (P. 59) ISTRUZIONI (P. 87) INSTRUCCIONES (P. 115) INSTRUÇÕES (P. 143) (171...
  • Page 2 You are now the proud owner of a Spring Drive Watch. For the best results, please read the instructions in this booklet carefully before using your Spring Drive Watch. Please keep this manual handy for ready reference. Sie sind jetzt stolzer Besitzer einer „Spring Drive-Uhr”. Lesen Sie diese Bedienungsanleitung vor der Verwendung Ihrer „Spring Drive-Uhr”...
  • Page 3: Table Of Contents

    CONTENTS Page FEATURES........................NAMES.OF.THE.PARTS....................HOW.TO.USE....................... How.to.manually.wind.the.mainspring..............How.to.set.the.time....................How.to.set.the.date....................13 How.to.adjust.the.time.difference................14 Time.difference.table....................16 How.to.use.the.stopwatch..................18 HOW.TO.READ.THE.POWER.RESERVE.INDICATOR..........20 TO.PRESERVE.THE.QUALITY.OF.YOUR.WATCH............22 PLACES.TO.KEEP.YOUR.WATCH................26 PERIODIC.CHECKS.....................
  • Page 4: Features

    FEATURES Spring Drive, the unique mechanism made available only by SEIKO technology, ensures high accuracy while using the mainspring as its sole power source. The watch will work continuously for approximately 7 hours (three days) when the mainspring is fully wound. The watch features a power reserve indicator to show the winding state of the mainspring.
  • Page 5: Names.of.the.parts

    NAMES OF THE PARTS STOPWATCH second hand STOPWATCH minute hand Minute hand Hour hand Date Small second hand CROWN Power reserve indicator STOPWATCH hour hand CROWN 24-hour hand a) Normal position : winding up the mainspring (manual operation) b) First click position : hour-hand independent adjustment, date setting c) Second click position : time setting * The position or design of the displays may differ depending on the model.
  • Page 6: How.to.use

    HOW TO USE This watch is an automatic watch equipped with a manual winding mechanism. • When the watch is worn on the wrist, the motion of the wearer's arm winds the mainspring of the watch. • If your watch is completely stopped, it is recommended that you manually wind the mainspring by turning the crown.
  • Page 7: How.to.set.the.time

    ● How to set the time • When setting the time, ensure that the watch is working: the main spring is sufficiently wound. • The -hour hand can be used in two ways. Since the time setting method differs according to the usage, please choose the mode before setting the time.
  • Page 8 How to set the 24-hour hand as a regular 24-hour indicator <When the mode 1 usage is selected> 1. Pull out the crown to the second click. * Pull the crown out when the small second hand is at the 12 o’clock position and the small second hand will stop on the spot. * When setting the time, ensure that the watch is working: the mainspring is sufficiently wound. Second click position...
  • Page 9: Time Signal

    . Turn the crown counterclockwise to set the -hour and minute hands to the current time. * Only the 24-hour and minute hands are to be set at this stage. The hour hand is to be set later so it is not neces- sary to adjust the hour hand yet, even if it is indicating the wrong time. * The date may be altered depending on the position of the hour hand, however it should not cause any concern since it can also be adjusted later. <Example> * Set the minute hand slightly behind the time you wish to set, and then slowly advance it to the desired time. To set to 6:00 P.M., adjust the 24-hour hand to indicate “18”...
  • Page 10 . Turn the crown to set the hour hand to the current hour. * Also, adjust the date at this point if necessary. The moment the date changes is midnight. When setting the hour hand, be sure that AM/PM is set correctly. * Turn the crown slowly, checking that the hour hand moves in one-hour increments. * When adjusting the hour hand, the other hands may move slightly. However, this is not a mal- function. . Push the crown back in upon completion of time setting. How to set the 24-hour hand as a dual time indicator for a “dif- ferent time zone area” <when the mode 2 usage is selected> 1. Pull out the crown to the second click. * Pull the crown out when the small second hand is at the 12 o’clock position and the small second hand will stop on the spot.
  • Page 11 . Turn the crown counterclockwise to set the -hour and minute hands to the time in the “different time zone area” you wish to set. Only the 24-hour and minute hands are to be set at this stage. The hour hand is to be set later so it is not necessary to adjust the hour hand yet, even if it is indicating the wrong time. * The date may be altered depending on the position of the hour hand, however it should not cause any concern since it <Example>...
  • Page 12 . Turn the crown to set the hour hand to the current hour. (In this example, the current hour in London.) * Also, adjust the date at this point if necessary. * The moment the date changes is midnight. When setting the hour hand, be sure that AM/PM is set correctly. * Turn the crown slowly, checking that the hour hand moves in one-hour increments. * When adjusting the hour hand, the other hands may move slightly. However, this is not a malfunction.
  • Page 13: How.to.set.the.date

    ● How to set the date • This watch is designed so that the date changes one day by turning the hour hand two full rotations in the same way as “ the time difference adjustment function”. • The date advances one day by turning the hour hand two full rotations clockwise, while the date is set back one day by turning the hour hand two full rotations counterclockwise.
  • Page 14: How.to.adjust.the.time.difference

    * When adjusting the hour hand, the other hands may move slightly. However, this is not a malfunction. . After completing the date setting, check the position of the hour hand once again and push the crown back in. ● How to adjust the time difference •...
  • Page 15 * Turn the crown slowly, checking that the hour hand moves in one-hour increments. * Refer to “ ● T ime difference table” for time differences from GMT (UTC). * When adjusting the time difference, make sure that AM/PM and the date are correctly set. * When adjusting the hour hand, the other hands may move slightly. However, this is not a malfunction. * When turning the crown clockwise to set the hour hand to indicate any time between 9:00 P.M. and midnight, keep turning until the hour hand points 8:00 P.M., and then advance it to the desired time.
  • Page 16: Time.difference.table

    ● Time difference table * Refer to the table below for time differences from GMT (UTC) in major cities in the world. Major.cities.in.respective.time.zones Time.difference.with.GMT.(UTC) -11.hours Midway.Islands -10.hours Honolulu -9.hours Anchorage -8.hours Los.Angeles..,.San.Francisco -7.hours Denver..,.Edmonton -6.hours Chicago..,.Mexico.City -5.hours New.York..,.Washington..,.Montreal -4.hours Caracas,.Santiago -3.hours Rio.de.Janeiro -1.hour Azores .0.hour London..,.Casablanca...
  • Page 17 Paris , Rome , Amsterdam +1 hour Cairo , Athens , Istanbul +2 hours Moscow , Mecca, Nairobi +3 hours Dubai +4 hours Karachi, Tashkent +5 hours Dacca +6 hours Bangkok, Jakarta +7 hours Hong Kong, Manila, Beijing, Singapore +8 hours Tokyo, Seoul, Pyongyang +9 hours Sydney...
  • Page 18: How.to.use.the.stopwatch

    ● How to use the stopwatch • The stopwatch can consecutively measure up to 1 hours. • Before using the stopwatch, wind the mainspring sufficiently until the power reserve indicator shows the fully-wound state. Make sure that the watch is operating when you use the stopwatch. •...
  • Page 19 Standard measurement START STOP RESET Accumulated elapsed time measurement START STOP RESTART STOP RESET * Restart and stop of the stopwatch can be repeated by pressing button A. Tips on reading the STOPWATCH hands • The STOPWATCH minute hand turns a full circle in 0 minutes. The STOPWATCH minute hand should be read depending on the position of the STOPWATCH hour hand. 6 hours and 20 minutes 6 hours and 50 minutes...
  • Page 20: How.to.read.the.power.reserve.indicator

    HOW TO READ THE POWER RESERVE INDICATOR • The power reserve indicator lets you know the winding state of the mainspring. • Before removing the watch from your wrist, observe the power reserve indica- tor to check if the watch has enough power stored to keep running until the next time you wear it.
  • Page 21 * When the mainspring is fully wound, the crown can be turned further, or the mainspring may wind without damaging the mainspring itself. The mainspring of the watch employs a slipping mechanism, an automatic watch specific mecha- nism, to prevent the mainspring from overwinding. ● Remarks on the automatic mechanism of the mainspring The mainspring of the watch becomes fully wound when it is worn for twelve hours for three to five consecutive days.
  • Page 22: To.preserve.the.quality.of.your.watch

    TO PRESERVE THE QUALITY OF YOUR CAUTION ● CARE OF YOUR WATCH • In normal circumstances, your watch will not require any special care, and will deliver many years of trouble-free use. To ensure its longevity and to avoid any problem of skin irritations, please wipe off moisture, sweat or soil with a soft dry cloth as soon as possible.
  • Page 23 If the watch becomes wet, we suggest that you have it checked by the re- tailer from whom the watch was purchased or any member of the SEIKO SPRING DRIVE worldwide service network.
  • Page 24 We rec- ommend that you wear a SEIKO Diver’s watch while scuba diving. * Before using a water resistant 5, 10, 15 or 20 bar watch in water, make sure the crown is pushed in completely.
  • Page 25 * When taking a shower while wearing a water resistant 5 bar watch, or taking a bath while wearing a water resistant 10, 15 or 20 bar watch, make sure to observe the following: • Do not operate the crown when the watch is wet with soapy water or shampoo. • If the watch is left in warm water, a slight time loss or gain may be caused. This condition, however, will be corrected when the watch re- turns to normal temperature.
  • Page 26: Places.to.keep.your.watch

    PLACES TO KEEP YOUR WATCH Avoid storing the watch in temperatures outside the normal range (below –10 ºC ● or above +0 ºC), as the electronic components may cease to function normally or the watch may stop. Do not leave the watch in a place where it will be subjected to strong magnetism (for ●...
  • Page 27: Periodic.checks

    PERIODIC CHECKS Inspection and overhaul of the watch will be performed by SEIKO. When you ● take your watch to the retailer from whom the watch was purchased, make sure that the watch will be serviced by SEIKO. We suggest that you have your watch checked once every three or four years to ●...
  • Page 28: Troubleshooting

    TROUBLESHOOTING Possible causes Trouble The power supplied by the mainspring has been The watch stops operating. consumed. The watch is worn on your wrist only for a short Even though you wear the watch every day, period of time, or the amount of arm movement the power reserve indicator does not move up.
  • Page 29 Solutions Refer to “HOW TO USE” section of this booklet to wind the mainspring and reset the time. While you are wearing the watch or when you take it off, check the remaining power shown by the power reserve indicator and wind the mainspring if necessary. Wear the watch for an extended period of time, or when taking off the watch, turn the crown to wind the mainspring if the remaining power shown by the power reserve indicator is not sufficient for the next use.
  • Page 30: Specifications

    SPECIFICATIONS 1. Features..........Hour. hand,. Minute. hand,. Small. second. hand,. 24-hour. h a n d ,. C a l e n d a r. d i s p l a y,. P o w e r. r e s e r v e. i n d i c a t o r. Stopwatch:.Hour.hand,.Minute.hand,.Second.hand 2.
