Product and Cut-out Dimensions
CS 1012 Double Gas CombiSet
CS 1012 Double Gas CombiSet

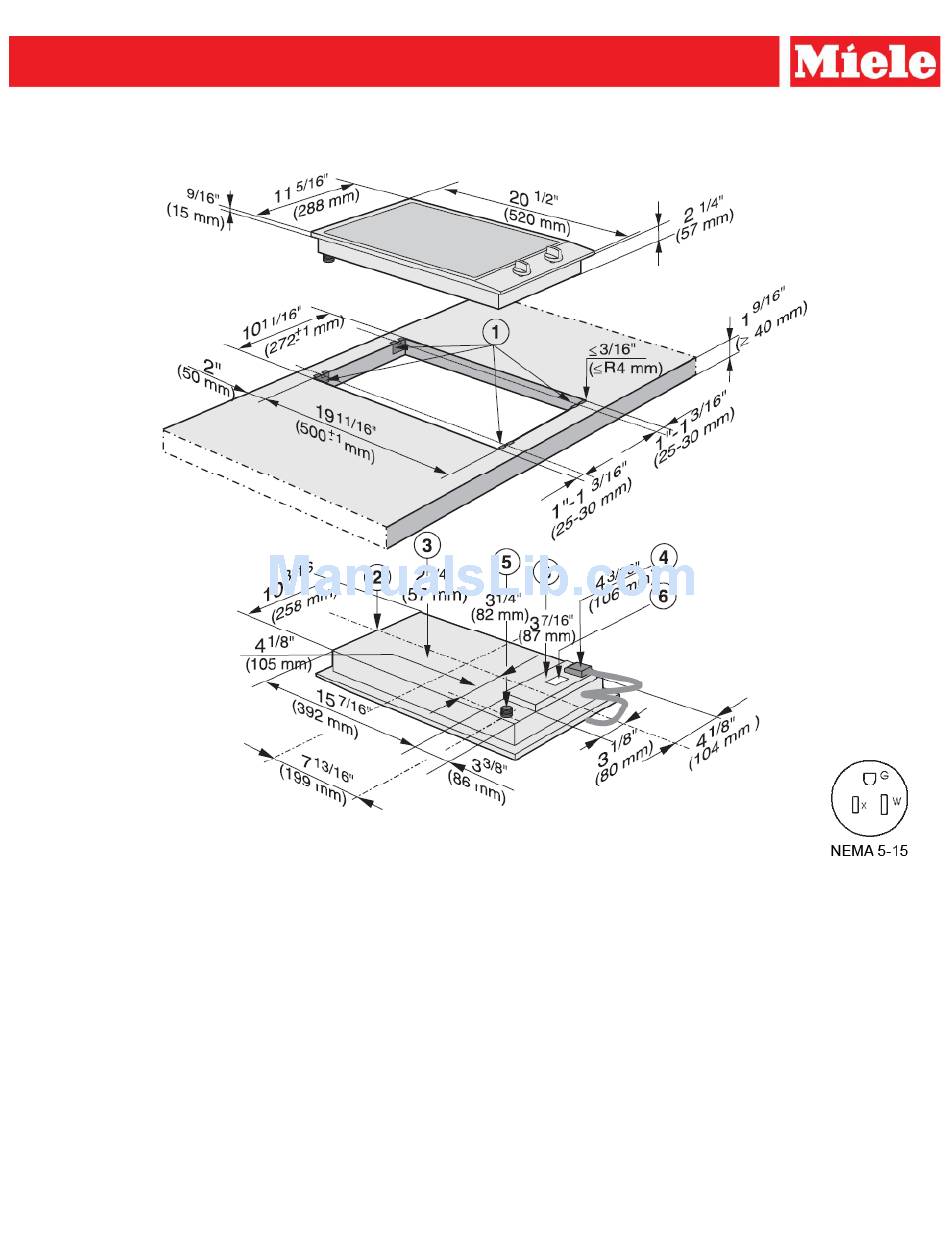

Location Codes
1 – Spring clips
2 – Appliance front
3 – Installation height
4 – Power supply box with connection cable with plug, Length = 47 1/4" (1200 mm)
120 V, 60 Hz, 15 A fuse rating. Actual power consumption (during ignition only) is 25 W.
Ensure that the power outlet is accessible after installation
5 – ½" NPT Gas fitting. The combiset should be ordered for either natural gas or LP gas. For your convenience an AGA
or CGA approved flexible stainless steel gas hose (accordion type) may be used between the gas connection and
the Miele regulator
the Miele regulator.
6 – Rating label – Ensure that the electrical supply matches the rating. Adhere rating label sticker supplied with the
appliance into the manual.
Shipping weight 18 lbs (8.1 kg)
Shipping dimensions 24" (610 mm) L x 16" (406 mm) W x 8" (203 mm) H
Notes
Indoor use
Indoor use
The combiset must not be installed over a dishwasher, wine storage, refrigerator or freezer. Heat radiated by the
combiset may damage the appliances.
Deep fat fryers must not be installed directly next to a gas combiset. A minimum distance of 11 5/16" is required.
The appliance must not be permanently sealed into the countertop when installed. The sealing strip under the edge of
the appliance provides a sufficient seal for the countertop.
All installations must be done in accordance with local codes.
Drawing is not to scale
Page 1 of 4
Specification Sheets OJS 02212012
