Operating and Installation
Instructions

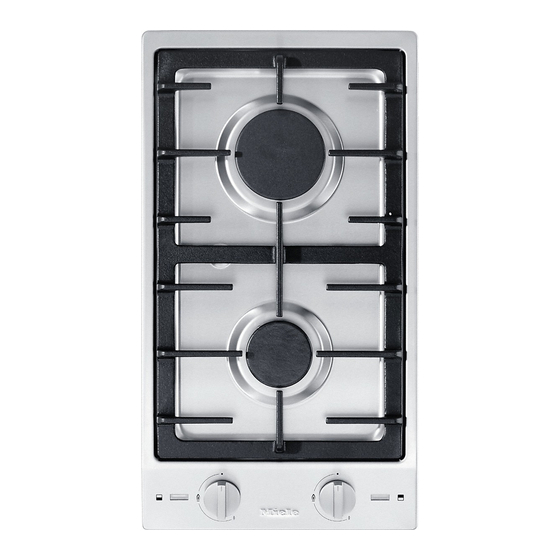

Gas Combiset
CS 1012
®
®
en - US, CA
To prevent accidents and
machine damage,
read the Operating Manual
before
installation or use.
M.-Nr. 07 366 180

Advertisement

Table of Contents
loading

Summary of Contents for Miele CS1012

  • Page 1 Operating and Installation Instructions Gas Combiset CS 1012 ® ® en - US, CA To prevent accidents and machine damage, read the Operating Manual before installation or use. M.-Nr. 07 366 180...
  • Page 2 WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. – Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 3: Table Of Contents

    Contents IMPORTANT SAFETY INSTRUCTIONS....... . . 4 Guide to the combiset ..........9 Before using the combiset .
  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING- When using your gas appliance follow basic precautions, including the following: This gas combiset conforms to all uniform safety codes and regulations. The manufacturer cannot be held responsible for damage or injury caused by improper use of this appliance. Read all instructions before installation or use to prevent injury and appliance damage.
  • Page 5 Technical safety Installation, repair and maintenance work should be performed by a Miele authorized service technician. Work by unqualified persons could be dangerous and may void the warranty. Before installing the combiset, check for externally visible damage. Do not operate a damaged appliance.
  • Page 6 However, under certain circumstances it may be possible for installation in these applications. Please contact the nearest Miele Dealer or the Miele Technical Service Department with specific requirements. After connecting the appliance test for leaks according to the installation instructions.
  • Page 7 Do not use pans that extend past the burner grate. Using larger pans may cause the flames to spread out and damage the surrounding countertop or other countertop appliances. For safety and stability, do not use pans with a bottom diameter smaller than the burner grate.
  • Page 8 In the event of damage or defect, turn off the appliance immediately. Turn off the gas shut off valve and disconnect completely from the electrical supply. Contact the Miele Technical Service Department. Do not use the appliance until it has been repaired.
  • Page 9: Guide To The Combiset

    a Fast burner b Normal burner c Burner grate d Burner indicators e Display panel Indicators l On/Off indicator m "Residual Heat" Indicator Guide to the combiset Control knobs: f Rear burner g Front burner...
  • Page 10 Guide to the combiset Burner n Burner cap o Burner head p Thermocouple q Ignitor r Burner base...
  • Page 11: Before Using The Combiset

    Cleaning the combiset Before using for the first time clean the appliance as follows: ^ Remove any protective foil. ^ Wash the removable parts of the gas burner in a mild solution of warm water and liquid dish soap. ^ Dry and reassemble the parts in the correct order (see "Cleaning and care").
  • Page 12: Use

    Fast-Ignition-System The gas combisets are equipped with a Fast-Ignition-System which incorporates the following features: – The control knob does not need to be pressed until the flame lights. – If the flame goes out because of a draft, for example, the burner is automatically re-ignited.
  • Page 13: On/Off Indicator And Residual Heat Indicator

    Turning on ^ To turn on the burner, press the control knob down to pass the resistance, then release the pressure and turn it counterclockwise to the largest flame symbol. The ignitor will "click" and ignite the gas. If the burner does not ignite or the flame goes out, turn the control knob to "ß".
  • Page 14: Cookware

    Cookware Pan size – Set the combiset to a high flame when using a large diameter pan and low flame when using a small diameter pan. – Generally, wide / shallow pans will heat up quicker and cook more evenly than narrow / tall ones. –...
  • Page 15: Safety Features

    Ignition safety control This appliance is equipped with an Ignition Safety Control. This control cuts the gas supply if the flame goes out and reignition is unsuccessful. ^ To reignite the burner, turn the control knob to “ß”, then switch the burner on as usual.
  • Page 16: Cleaning And Care

    Apply sparingly with even pressure. These cleaning products are available from Miele. Do not use stainless steel cleaner on or around the printing, it may rub off. Use only a soft sponge with some dish liquid and warm water to clean this area.
  • Page 17: Burners

    Burners The burner can be dismantled and cleaned when cool. ^ Remove the burner parts and wash them in a solution of warm water and liquid dish soap. Dry them thoroughly. Make sure that the flame holes are clean and completely dry. ^ Wipe the burner base clean with a damp cloth and then dry.
  • Page 18: Frequently Asked Questions

    Frequently asked questions Repairs should only be carries out by an authorized technician in accordance with local and national safety regulations. Unauthorized repairs could cause injury or appliance damage. The manufacturer cannot be held responsible for unauthorized work. The burner does not ignite when the combiset is being used for the first time or after an extended period of not being used.
  • Page 19 The burner does not ignite after several attempts. Possible fault Disconnect the appliance from the electrical supply for a few seconds. If the problem persists, check if: – The burner is assembled incorrectly. – The gas valve is closed. – The burner is wet and soiled. –...
  • Page 20 Frequently asked questions The igniter does not spark. Possible fault The circuit breaker has tripped. Food has deposited itself between the ignitor and the burner cap. Food has deposited on the ignition safety control. For safety reasons, after a spill on the combiset you may need to wait approx. 5 minutes before you are able to reignite the burner.
  • Page 21: Technical Service

    Miele Service department, Extended Service Contracts offered by other providers for Miele products will not be recognized by Miele. Our goal is to prevent unauthorized (and untrained) service personnel from working on your Miele products, possibly doing further damage to them, you and/or your home.
  • Page 23: Installation Instructions

    Installation Instructions IMPORTANT: SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE To prevent accidents and machine damage read these instructions before installation or use.
  • Page 24: Important Safety Instructions

    However, under certain conditions it may be possible for installation in these applications. Please contact the Miele Technical Service Department with specific requirements. The combiset must not be installed over a dishwasher, washer, dryer, refrigerator or freezer.
  • Page 25: Safety Distances Above The Appliance

    Safety distances above the appliance The minimum safety distance given by the hood manufacturer must be maintained between the combiset and the hood above it. See the installation instructions of the hood for these safety measurements. If the hood manufacturers instructions are not available or if flammable objects are installed over the combiset (e.g.
  • Page 26 IMPORTANT SAFETY INSTRUCTIONS Safety distances to the sides of the appliance The appliance should only be installed as shown in the illustrations, while maintaining the required safety distances shown. Do not install the appliance between two tall cabinets, this is a fire hazard. A distance of at least 2"...
  • Page 27: Installation

    Installation Safety distance when installing the appliance near a wall with trim or a back splash A minimum distance of 2" (50 mm) between the trim or back splash and the countertop cut-out if required. This distance is only necessary if these items are made of combustible materials e.g.
  • Page 28: Installation Dimensions

    Installation Installation dimensions a Spring clips b Appliance front c Installation height d Power supply box with connection cable, L = 78 3/4" (2000 mm) e Gas fitting...
  • Page 29: Cut Out

    Cut out ^ Make the countertop cut-out for the desired number of appliances. Remember to maintain a minimum safety distance from the back wall, as well as from any tall unit or side wall to the left or right of the combiset.
  • Page 30: Installation Of Multiple Appliances

    Installation Installation of multiple appliances When installing more than one combiset appliance, a support bar b must be installed between the appliances. Countertop cut-out two appliances For the installation of two appliances the width of the countertop cut-out D is the sum of A and C.
  • Page 31 Sample calculations for a countertop cut-out for three appliances appliance width appliance width minus 5/16" (8 mm) 11" (280 mm) 11 5/16" (288 mm) 11" (280 mm) 15" (380 mm) 11" (280 mm) 22 11/16" (576 mm) 14 5/8" (372 mm) 11 5/16" (288 mm) 14 5/8"...
  • Page 32 Installation 2 " 2 " " 3 / 1 6 ( 5 0 m ( 5 0 m 1 " - 1 0 m m ( 2 5 - 3 a Spring clips b Support bars c Space between support bar and countertop An additional support bar is required for each additional appliance.
  • Page 33: Attach The Spring Clips And Support Bars

    Attach the spring clips and support bars Wood or solid surface countertops 1 " - 1 ( 2 5 - 3 ^ Place the supplied spring clips a and the support bars b at the marked positions as shown above, by laying them on the upper edge of the cut-out and then securing them with the...
  • Page 34 Installation ^ Coat the edges of the spring clips, ^ and the space d between the strips and the countertop with silicone (supplied).
  • Page 35: Installing The Appliance

    Installing the appliance ^ Feed the power cord down through the cut-out. ^ Then place the front side of the appliance in the countertop cut-out. ^ Then with a hand on each side of the appliance press down evenly on the edges until it clicks into position.
  • Page 36: Sealing

    Installation Sealing The appliance must not be permanently sealed into the countertop when installed. The sealing strip under the edge of the appliance provides a sufficient seal for the countertop. If the appliance is sealed into position, the countertop or appliance could be damaged if it needs to be removed for maintenance or service.
  • Page 37: Electrical Connection

    This appliance must be grounded according to local or national codes. All electrical work should be performed by a qualified electrician in accordance with local codes and with the: National Electrical Code ANSI / NFPA No. 70 for the USA Canadian Electrical Code Part I for Canada (CSA Standard C 22.1).
  • Page 38 Electrical connection Wiring Diagram...
  • Page 39: Gas Connection

    Installation and service must be performed by a qualified installer, service agency or the gas supplier. In Massachusetts a licensed plumber/gas fitter is required. This appliance must be installed with its own shut off valve and the included gas pressure regulator. Both the valve and the regulator must be easily accessible to the consumer to turn on or shut off the...
  • Page 40: Gas Pressure Regulator

    ½" NPT c Regulator As shown in the above diagram, the included regulator must be used when connecting the Miele combiset to your gas supply. This item has been customized by Miele to meet all applicable safety requirements. Make...
  • Page 41: Nominal Ratings

    Nominal ratings Maximum output Normal burner Fast burner Total output Minimum output Normal burner Fast burner Gas type Natural Gas (NG) Propane (LP) Natural Gas (NG) Propane (LP) Natural Gas (NG) Propane (LP) Gas type Natural Gas (NG) Propane (LP) Natural Gas (NG) Propane (LP) Gas connection...
  • Page 42: Converting To Another Type Of Gas

    If the appliance is to be connected to a type of gas other than it was originally configured for, both the regulator and burner must be converted. A conversion kit is available as an optional accessory from the Miele Technical Service Department.
  • Page 43: Help Protect Our Environment

    Disposal of packing materials The cardboard box and packing materials are biodegradable and recyclable. Please recycle. Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children. Danger of suffocation! Help protect our environment Disposal of an old appliance Old appliances contain materials that can be recycled.
  • Page 44 Alteration rights reserved / 2508 M.-Nr. 07 366 180 / 00 For the most updated manual see the Miele web site.
