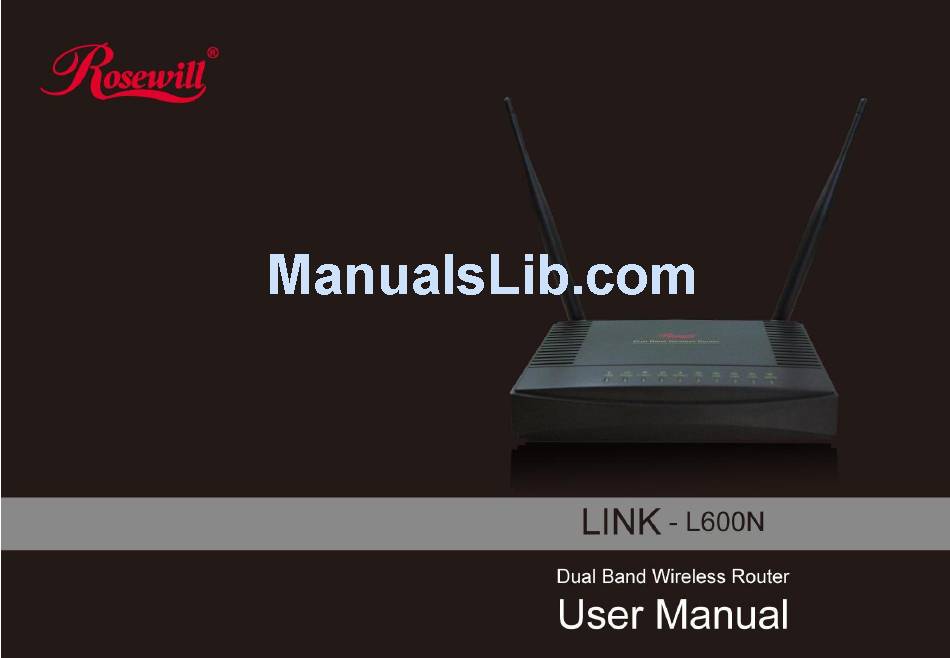

Rosewill L600N User Manual

Rosewill L600N User Manual

Dual band wireless router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L600N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rosewill L600N

Summary of Contents for Rosewill L600N

  • Page 2: Table Of Contents

    L600N - Dual Band Wireless Router CONTENTS Wireless Setup …….……………………………………………….…………………..… 27 INTRODUCTION ……………………………………………………………………….…… 4 Basic Setup ……………………………………….…………………………………... 28 PRODUCT OVERVIEW …………………………………………………………………... 5 Guest Network ……………………………….…………………………………..31 Package Content …..……………………………………………………………………... 5 WPS Setup ……………………………………….………………………….……..… 32 LED Indicator ………..……………………………………………………………………... 6 Advanced Setup ………………………………….…………………………………. 33 Back Panel Indicator ……………………………………………………………………..
  • Page 3 L600N - Dual Band Wireless Router CONTENTS Security Options ……………………………………………….………………….………... 49 Remote Management ……………………………………………………..…..50 WAN Security Setup ……………………………………………………………... 51 Multicast Control …………………………………………………………………………… 54 Storage Setup ………………………………………………………………………………... 55 FTP Server Setup …………………………………………………………………… 56 FTP Server Account Manager ………………………………………………… 57 USB Browse …..……………………………………………………………………… 58 Samba Setting …………………………………………………………………..…..

  • Page 4: Introduction

    L600N - Dual Band Wireless Router INTRODUCTION Thank you for purchasing this Rosewill Networking product. At Rosewill we believe that excellence is a standard. Our customers deserve nothing less than the best. By purchasing a Rosewill product you are choosing exceptional value, unrivaled customer service and top quality hardware. If you have any questions please feel free to contact us.

  • Page 5: Product Overview

    - Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with your distributor. - Using a power supply with a different voltage rating than the one included with the L600N will cause damage and void the warranty for this product.

  • Page 6: Led Indicator

    L600N - Dual Band Wireless Router PRODUCT OVERVIEW LED Indicator (From Left to Right) • USB: Indicates when a USB device is connected to the USB port on the right side of the Router. The LED blinks rapidly when data is transmitted or received.

  • Page 7: Back Panel Indicator

    L600N - Dual Band Wireless Router PRODUCT OVERVIEW Back Panel Indicator (From Left to Right) • RESET: Push once to reboot the Router. Hold down for 5-10 seconds to reset the Router back to factory settings. • POWER ON/OFF: Push to Power on or off the Router •...

  • Page 8: Side Panel Indicator

    L600N - Dual Band Wireless Router PRODUCT OVERVIEW Side Panel Indicator • WiFi ON/OFF: Push to turn ON/OFF of the WiFi Signal • USB: Insert USB storage devices, such as USB flash drives and external hard drives, for file sharing.

  • Page 9: Quick Setup Guide

    • Remove the power adapter to power off your modem. Remove the modem’s backup battery if your modem has one. 3. Connecting the L600N Wireless Router to your modem • Plugs one end of your Ethernet Cable to the modem and the other end to your L600N’s “modem” port...
  • Page 10 • Connects the other end of the Ethernet Cable to your Computer • Plug in the power adapter of your L600N and power on your computer if it haven’t turn on. 6. Open your Web Browser and type in “192.168.1.1” in the address bar •...
  • Page 11 • Click on Setup Wizard. • Select “Yes”, then “Next” • L600N will Auto-Detect your Network and guide you through a step by step setting. (If your connection was not detected here, you will need to setup manually under Network Setup’s...
  • Page 12 Mask, Gateway IP Address, Primary DNS, and/or Secondary DNS. These information will provided by your ISP and normally happens when using Cable connection. • Once complete the setting of this step, your L600N should be ready to connect to the internet via wired connection.

  • Page 13: Wireless Connecting Guide

    L600N - Dual Band Wireless Router QUICK SETUP GUIDE Wireless Connecting Guide 1. Wireless Setup • Click on Wireless Setup then Basic Setup • At Wireless Basic Settings, you can select below as you desired. • Adapter: 2.4G / 5G •...
  • Page 14 • 2.4G supports the following mode: 802.11b, 802.11b/g, 802.11b/g/n. • 5G supports the following mode: 802.11a, 802.11a/n • To fully utilize your L600N, we suggest 2.4G with 802.11b/g/n; 5G with 802.11a/n. • Channel: Set Auto if you are not sure what is the best channel to avoid neighbors’...
  • Page 15 QUICK SETUP GUIDE Wireless Connecting Guide 3. Security Options • Security Options: L600N supports 4 wireless security encryption modes. WEP, WPA-PSK (TKIP), WPA2-PSK (AES), WPA-PSK (TKIP) + WPA2-PSK (AES). We recommend selecting WPA-PSK (TKIP) + WPA2-PSK (AES) unless otherwise desired.

  • Page 16: Configuration Guide

    Web Management Detail: 14 main functions on the left of the Web-based utility. Web Management Guide • Setup Wizard: A step by step setup on L600N • Running Status: Detail router status and client list • Network Setup: Allows you to set up LAN/WAN details •...

  • Page 17: Running Status

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Running Status Running Status: You can review the device information and current clients list here • Router Status: Provides detail router status on Summary, System Information, Connection status of the Internet port (Modem port), LAN port, and Wireless Port (2.4G and 5G), and traffic statistics of...

  • Page 18: Router Status

    • Summary: Information on L600N’s connection Status • Internet: Whether Connected / Disconnected • Wireless: shows 2.4GHz’s SSID name and 5GHz’s SSID name • Client Devices: how many client devices connected to L600N (both wired and wireless) • Guest Network: •...
  • Page 19 L600N - Dual Band Wireless Router CONFIGURATION GUIDE Running Status – Router Status • Internet Port: • MAC Address: The physical address of the router, as seen from the Internet. • IP Address: The current Internet IP address. If assigned dynamically, and no Internet connection exists, this will be blank or 0.0.0.0.
  • Page 20 L600N - Dual Band Wireless Router CONFIGURATION GUIDE Running Status – Router Status • Wireless Port (2.4G) / Wireless Port (5G): • Wireless Network Name (SSID): SSID name of the Signal • Region: The location (country). • Wireless Channel: The current channel in use.
  • Page 21 L600N - Dual Band Wireless Router CONFIGURATION GUIDE Running Status – Router Status • Statistic Information: • Displays the performance statistics information of the router, including the number of sent and received packets at each port. • Connection Status: • Displays the information of current connection on the router.

  • Page 22: Client List

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Running Status – Client List 2. Client List: This page displays information of computers connected to the router, including the IP address, the device name, and the MAC address of each computer.

  • Page 23: Network Setup

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Network Setup Network Setup: You can the Internal Network (LAN) and External Network (WAN) settings. • LAN Interface Setup: you can configure the IP address of the LAN port according to the actual network environment.

  • Page 24: Lan Interface Setup

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Network Setup – LAN Interface Setup 1. LAN Interface Setup: Setting up your internal network environment. • LAN TCP/IP Setup: • IP Address: Set the IP address that an LAN user uses to access the router.
  • Page 25 L600N - Dual Band Wireless Router CONFIGURATION GUIDE Network Setup – LAN Interface Setup • Address Reservation: This function will assign a fix IP for connected devices based on their MAC Address. This will be particular useful when combine with Access Control.

  • Page 26: Wan Interface Setup

    L2TP. You may need to confirm with your ISP before selecting your connecting modes. • Dynamic IP (DHCP): L600N automatically obtains IP address, subnet mask, and IP address of the gateway from the ISP. • Static IP (Fixed): Select this If the ISP provides the IP address, subnet mask, and information about the gateway and DNS server.

  • Page 27: Wireless Setup

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Wireless Setup Wireless Setup: You can set wireless configuration here • Basic Setup: You can set basic wireless configurations here • Guest Network: You can enable or disable the 4x Guest Network for 2.4GHz and 3x Guest Network for 5GHz here, while setting encryption for each of the guest network.

  • Page 28: Basic Setup

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Wireless Setup – Basic Setup 1. Basic Setup: At Wireless Basic Settings, you can select to edit your wireless signal. • Region Selection: • Adapter: 2.4G / 5G • Region: Default is United States, but you can adjust the Region based on your location •...
  • Page 29 802.11b/g, 802.11b/g/n. • 5G supports the following mode: 802.11a, 802.11a/n • To fully utilize your L600N, we suggest 2.4G with 802.11b/g/n; 5G with 802.11a/n. • Channel: Set Auto if you are not sure what is the best channel to avoid neighbors’ signal interference. System will pick for you.
  • Page 30 L600N - Dual Band Wireless Router CONFIGURATION GUIDE Wireless Setup – Basic Setup • Security Options • Security Options: L600N supports 4 wireless security encryption modes. WEP, WPA-PSK (TKIP), WPA2-PSK (AES), WPA-PSK (TKIP) + WPA2-PSK (AES). We recommend selecting WPA-PSK (TKIP) + WPA2-PSK (AES) unless otherwise desired.

  • Page 31: Guest Network

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Wireless Setup – Guest Network 2. Guest Network: • Adapter: 2.4G / 5G • Network Profiles: A brief information status of your Guest Network. • Enable Guest Network: Enable or disable Guest Network per Profile.

  • Page 32: Wps Setup

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Wireless Setup – WPS Setup 3. WPS Setup: You can use the WPS setup function to add a wireless client to a network without setting SSID, security mode, and password. • WPS Settings: •...

  • Page 33: Advanced Setup

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Wireless Setup – Advanced Setup 4. Wireless Advanced Settings: Wireless Advanced Settings allows you to set advanced wireless configuration. (If you are not sure what they are, please keep default settings) • Adapter: 2.4G / 5G •...
  • Page 34 L600N - Dual Band Wireless Router CONFIGURATION GUIDE Wireless Setup – Advanced Setup 4. Wireless Advanced Settings: Wireless Advanced Settings allows you to set advanced wireless configuration. (If you are not sure what they are, please keep default settings) • CTS/RTS Threshold (1-2347): If the length of a packet is greater than this value here, the router sends an RTS frame to the destination station to negotiate.
  • Page 35 – Advanced Setup • Wireless Card Access List: You will be able to set which wireless clients can connect to L600N. It is controlled via MAC address of the wireless clients. (This function does not work on wireless guest Network)

  • Page 36: Forwarding

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Forwarding Forwarding: This function allows you to tell the router that which IP within your network can communicate with outside Network. • UPnP Setup: UPnP can allow your UPnP Enabled devices automatically discover the services from other registered UPnP devices on the network.

  • Page 37: Upnp

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Forwarding - UPnP 1. UPnP Setup: UPnP can allow your UPnP Enabled devices automatically discover the services from other registered UPnP devices on the network. • Turn UPnP On: Enable or disable UPnP.

  • Page 38: Port Forwarding

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Forwarding – Port Forwarding 2. Port Forwarding: Port Forwarding will allow your router knowing what network data to the assigned port. • Service Name: Select a service type from the drop-down list.

  • Page 39: Port Triggering

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Forwarding – Port Triggering 3. Port Triggering: Port Triggering is similar to Port Forwarding, but it can turn on / off by the time you set which provides more security than port forwarding.

  • Page 40: Access Control

    IP within your network can communicate with outside Network. • Time of day to Block: You can manage your L600N’s access schedule weekly or by selecting time everyday. • Block Sites: You can select key word or whole website address to block.

  • Page 41: Time Of Day To Block

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Access Control – Time of Day to Block 1. Time of day to Block : You can tell L600N which day and what time to block different access. (in combination use with Block Sites and Block Services.) •...

  • Page 42: Block Sites

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Access Control – Block Sites 2. Block Sites: Using keywords you can block with offended words or enter the website address you can block the site. • Keyword Blocking: You can select Never, Per Schedule, or Always.

  • Page 43: Block Services

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Access Control – Block Services 3. Block Service: Allows you to block certain Internet service by specific users on your local network based on their IP address. • Service Blocking: You can select Never, Per Schedule, or Always.

  • Page 44: Qos Setup

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Access Control – QoS Setup 4. QoS Setup: QoS function sets priority policies on applications, online games, Ethernet LAN ports, and MAC addresses, sets an order for various network traffics, and thus optimizes your network performance.
  • Page 45 L600N - Dual Band Wireless Router CONFIGURATION GUIDE Access Control – QoS Setup • QoS Priority Rule List: QoS function sets priority policies on applications, online games, Ethernet LAN ports, and MAC addresses to optimizes your network performance. • QoS Setup: Click Add Priority Rule to add QoS policies.

  • Page 46: Dynamic Dns

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Dynamic DNS Dynamic DNS: Dynamic DNS is a service linking with outside Dynamic DNS service provider to keep track of a web domain name or web address linked to the changing IP address that your ISP provides you.

  • Page 47: Static Route

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Static Route Static Routes: Static routing is a special type of routing that can be applied in a network to reduce the problem of routing selection and overload of data flow and improve the forwarding speed of packets.

  • Page 48: E-Mail Setup

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE E-mail Setup E-Mail Setup: Email alerts and logs can set to mail your email address. Alerts contains when someone in your Network tries to visit a blocked site while logs are the lists of all the URLs that this router have been visited.

  • Page 49: Security Options

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Security Options Security Options: Security options are provided with two main functions, Remote Management and WAN Security Setup. They are here because these two can affect or help your internet security from outside.

  • Page 50: Remote Management

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Security Options 1. Remote Management: This function will allow login from outside to your wireless router and is disable by default. It is best to turn remote management off after use for safety.

  • Page 51: Wan Security Setup

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Security Options 2. WAN Security Setup: This setup here will allow you to configure features that helps your router from outside hack attempts. • Disable Port Scan and DoS Protection: This function protects your LAN against DoS attack.
  • Page 52 L600N - Dual Band Wireless Router CONFIGURATION GUIDE Security Options 2. WAN Security Setup: This setup here will allow you to configure features that helps your router from outside hack attempts. • MTU Size: The maximum transmission unit. Normally, it is 1500 bytes for most Ethernet networks, 1492 bytes for PPPoE connection, and 1436 bytes for PPTP connection.
  • Page 53 L600N - Dual Band Wireless Router CONFIGURATION GUIDE Security Options • Enable SIP ALG: Certain SIP applications have special mechanisms for passing through the NAT firewall and SIP ALG may have conflicts with these mechanisms. • Enable L2TP ALG: L2TP ALG can pass through L2TP communication data.

  • Page 54: Multicast Control

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Multicast Control Multicast Control: Multicast control are support for layer 2 or higher Ethernet switch. • Enable IGMP Snooping : IGMP Snooping is used to multicast management and control. When the Ethernet...

  • Page 55: Storage Setup

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Storage Setup Storage Setup: This router offers USB storage function with built-in FTP server and Samba Server without additional computer and software. You will be able to access the USB storage device at home or away from home.

  • Page 56: Ftp Server Setup

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Storage Setup – FTP Server Setup 1. FTP Server Setup: FTP server is disabled by default. If you have USB drive connect to the router, you can enable. Once enabled, users can connect to your USB storage devices. This requires the users with an account name and password as well as permissions, such as upload, download and other privileges.

  • Page 57: Ftp Server Account Manager

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Storage Setup – FTP Server Account Manager 2. FTP Server Account Manager: You will need to create an account with password and access rights before users want to connect to your FTP server. In this page, you can add, delete, edit user accounts, and give appropriate access to the users.

  • Page 58: Usb Browse

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Storage Setup – USB Browse 3. USB Browse: You can browse and manage the files in USB disk. Once the USB disk is insert, you will be able to see the content here.

  • Page 59: Samba Setting

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE Storage Setup – Samba Setting 4. Samba Setting: Samba allows users to share file between windows host and the device via LAN connection. • Enable Samba: Enable or disable the Samba server. When the Samba server is enabled, users can connect to your USB device to share files in the USB device.

  • Page 60: System Tools

    L600N - Dual Band Wireless Router CONFIGURATION GUIDE System Tools System Tools: System tools provides with detail information on the router. You can set password, backup, reset to factory default, or upgrade Firmware, etc. • Log: A log makes a detailed record of the Web sites that users on your network have accessed or attempted to access.
  • Page 61 L600N - Dual Band Wireless Router CONFIGURATION GUIDE System Tools • Schedules: Here works the same as the Time of Day to Block. you can set a schedule to specify the time and mode of restricting Internet access. • Backup Setup: Samba Server setup allows you set up to access the USB drive within the network.

  • Page 62: Physical Specification

    L600N - Dual Band Wireless Router PHYSICAL SPECIFICATION General Chipset BCM5358U+BCM43236 Flash / SDRAM 8M / 32M IEEE 802.3/u Standards IEEE 802.11a/b/g/n Protocols UDP, TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP, ARP, ALG 1x 10/100M WAN port Ports 4x 10/100M LAN ports LEDs USB, PWR, 2.4GHz WLAN, WPS, WAN (Modem), 4x LAN, WPS, 5GHz WLAN...
  • Page 63 L600N - Dual Band Wireless Router PHYSICAL SPECIFICATION Wireless Frequency Band 2.4GHz / 5GHz Radio Data Rate 300 + 300 mbps Modulation Support 256/64/16/8-QAM, QPSK, BPSK, MCS0 ~ MCS15 Security 64/128 bits, WEP, WPA-PSK (TKIP), and WPA2-PSK (AES) wireless encryption...

  • Page 64: Troubleshooting

    Problem. I follow the steps, but I am not able to open router’s web management page after type in 192.168.1.1 on my web browser. Solutions. 1. Check if your computer connected to L600N has being set as a “Fixed IP”. You may want to change to “DHCP” setting.
  • Page 65 Problem. The Setup Wizard does not detect or configure my network. Solutions. 1. Reset your modem, and power off your L600N by unplug the power adapter then plug back in. 2. Allow the wizard to detect your Internet connection one more time.
