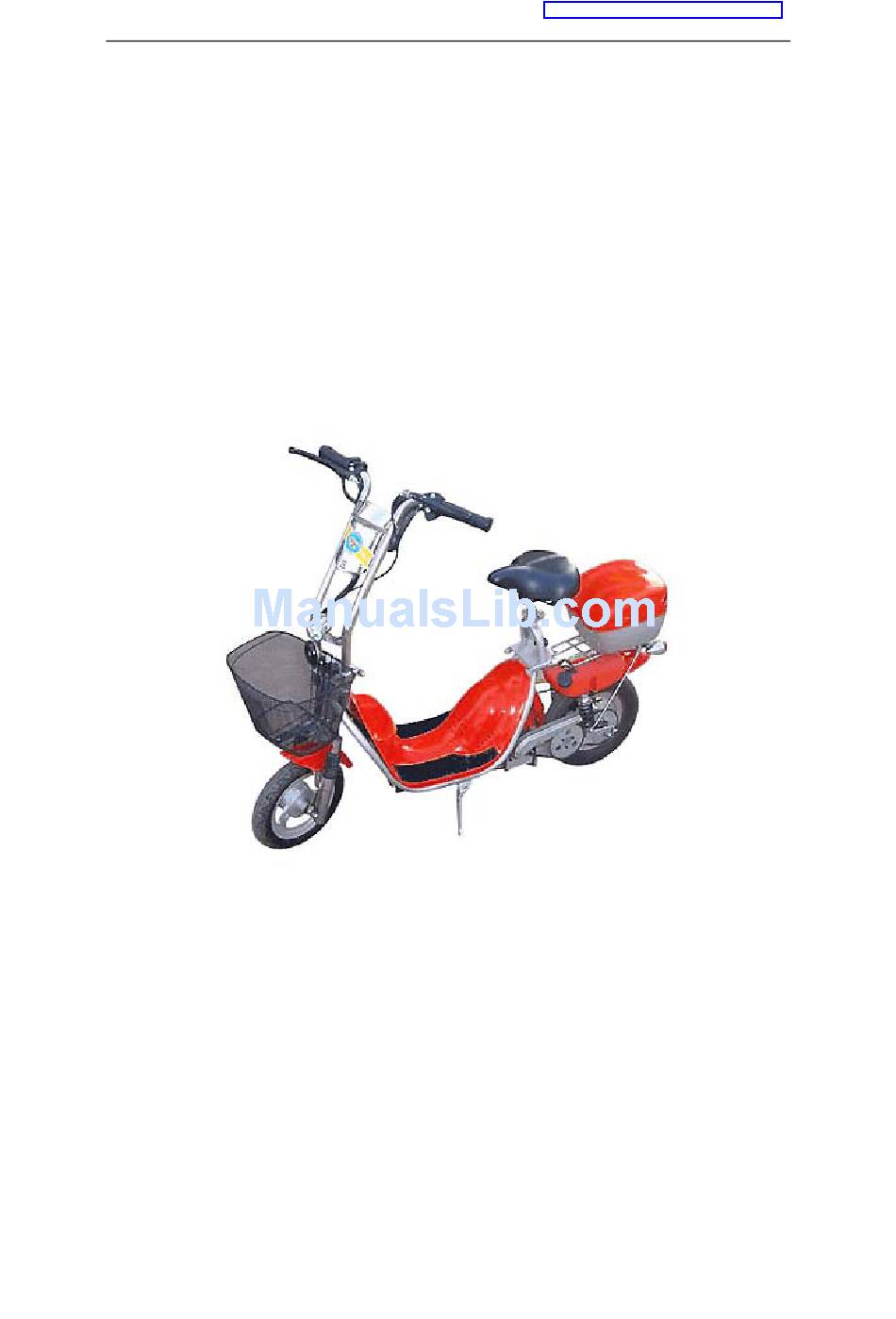

Page 1: User Manual
UFREE SCOOTER www.scooter-manufacturer.com ELECTRIC SCOOTER FS-E20C USER MANUAL... -
Page 2: Main Specification
UFREESCOOTER www.scooter-manufacturer.com PRODUCT INTRODUCTION Congratulations!! You have just acquired an advanced Scooter for years for Scooter fun and to keep your Scooter working well please read the following information BEFORE use and retain for future reference. MAIN SPECIFICATION Dimensions: 1320mm (L) x 1050mm (H) Weight: 30kgs. -
Page 3: Oil And Fuel Information
UFREE SCOOTER www.scooter-manufacturer.com OIL AND FUEL INFORMATION Be sure to read these instructions carefully before attempting to start or operate this product. Improper oil and fuel mixture will result in engine damage, which will make the engine warranty invalid. The Scooter has a 2-stroke engine that requires oil to be mixed with the petrol. -
Page 4: Folding Feature
UFREE SCOOTER www.scooter-manufacturer.com WARNING This vehicle should not be operated on pubic streets, roads or highways and serious injuries occur from the unsafe operation of such a vehicle, but the operator can reduce these assumed risks by wearing safety equipment such as helmet, goggles, gloves, elbow pads, knee pads, and appropriate shoes with sufficient ankle support. -
Page 5: Safety Driving
UFREE SCOOTER www.scooter-manufacturer.com NOTES BEFORE you ride, thoroughly inspect the machine to ensure that no parts are loose or damaged. Do not use it until adjustments or repairs have been made. New engine break-in period is a couple of hours and avoid full throttle operation during this period. -
Page 6: Maintenance And Parts
UFREE SCOOTER www.scooter-manufacturer.com OPTIONAL SEAT The seat can be used on the Scooter once the rod has been put through the frame and through the seat column. The locking pin must then be clipped into position before riding. MAINTENANCE AND PARTS Only use the manufacture's original parts when repairing this unit. - Page 7 UFREE SCOOTER www.scooter-manufacturer.com l. Put the fork in right position and use the screw to fix the handle tightly. (Fig 1) 2. Lift the handle bar, and put it on the proper position on the front fork, then use the hexagon to fixed the handle bar.(the screw is in the inner side of handle, you need to put the hexagon(the larger one) inside the handle bar as the picture shown(Fig 2)to fixed it.
- Page 8 UFREE SCOOTER www.scooter-manufacturer.com 4. To finish the assembly, you need to put the fuse into the fuse socket. Remove the cover of the fuse socket and put the fuse on the cover, the re-close the cover. WARNING: when putting on the fuse, please make sure the power key switch turns to OFF.
